SolarEdge StorEdge SE10K-RWS Installation Guide

7.
Insert the two supplied screws through the outer heat sink fins on both sides of the
inverter and into the bracket (see Figure 7 ).
Tighten the screws with a torque of 4.0 N*m / 2.9 lb.*ft.

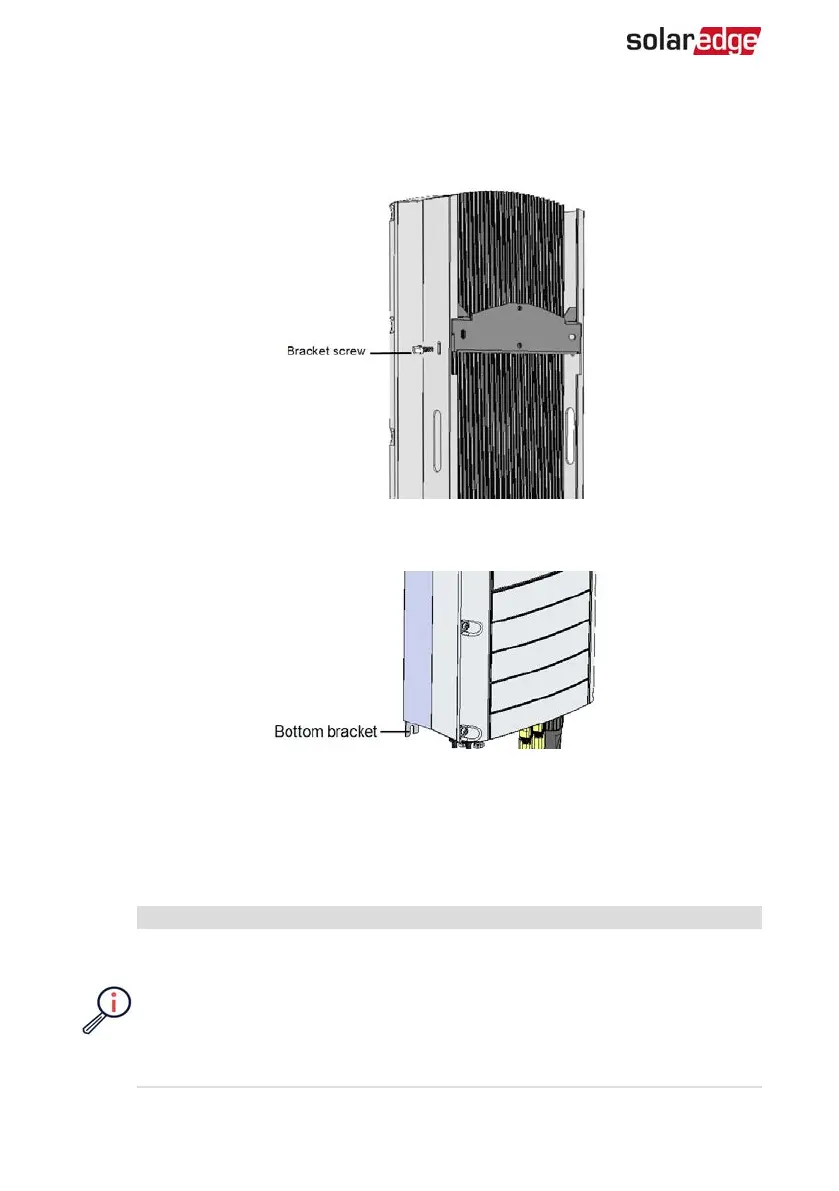

Figure 8: Inserting the bracket screws
8.
Fasten the inverter to the surface using the bottom bracket.
Figure 9: Bottom bracket
9.
Remove the inverter cover: Open the inverter cover’s ten Allen screws and carefully
pull the cover horizontally before lowering it.
Selecting a Residual Current Device (RCD)
 IMPORTANTSAFETYFEATURE
All SolarEdge inverters incorporate a certified internal Residual Current Device
(RCD) in order to protect against possible electrocution and fire hazard in case
of a malfunction in the PV array, cables or inverter. There are two trip
thresholds for the RCD as required for certification (DIN VDE 0126-1-1). The
default value for electrocution protection is 30 mA, and for slow rising current
is 300 mA.
StorEdge Three Phase Inverter MAN-01-00648-1.3
28 Selecting a Residual Current Device (RCD)

SolarEdge StorEdge SE10K-RWS Specifications

General

Topology	Transformerless
Max Efficiency	98.3%
Dimensions	540 x 315 x 260 mm
Noise Level	< 50 dBA
Protection Rating	IP65
Rated AC Power	10000 W
AC Frequency	50/60 Hz
Maximum Efficiency	98.3%
Number of MPP Trackers	1
Warranty	12 years
AC Output Power	10000 W
Operating Temperature Range	-25°C to +60°C
AC Voltage	230 / 400 Vac
Max Input DC Voltage	480 V
Communication Interfaces	Ethernet, RS485, ZigBee (optional)
Max Charge/Discharge Current	25 A
Max Charge/Discharge Power	10000 W
Communication	Ethernet, RS485, ZigBee (optional)
