SolarEdge StorEdge SE10K-RWS Installation Guide

Cable type – a shielded Ethernet cable (CAT6) may be used
Maximum distance between the inverter and the router – 100 m/ 330 ft.
NOTE
If using a cable longer than 10 m / 33 ft in areas where there is
a risk of induced voltage surges by lightning, it is
recommended to use external surge protection devices.
For details refer to:
http://www.solaredge.com/files/pdfs/lightning_surge_
protection.pdf.
To connect the Ethernet cable:
1. Remove the inverter cover as described in Opening the Inverter Cover on page 31.
2.
Open Communication Gland 1.
CAUTION!
The gland includes a rubber waterproof fitting, which should be used to
ensure proper sealing.
3. Remove the plastic seal from one of the large openings.
4. Remove the rubber fitting from the gland and insert the CAT6 cable through the
gland and through the gland opening in the inverter.
5.
Push the cable into the cut opening of the rubber fitting.

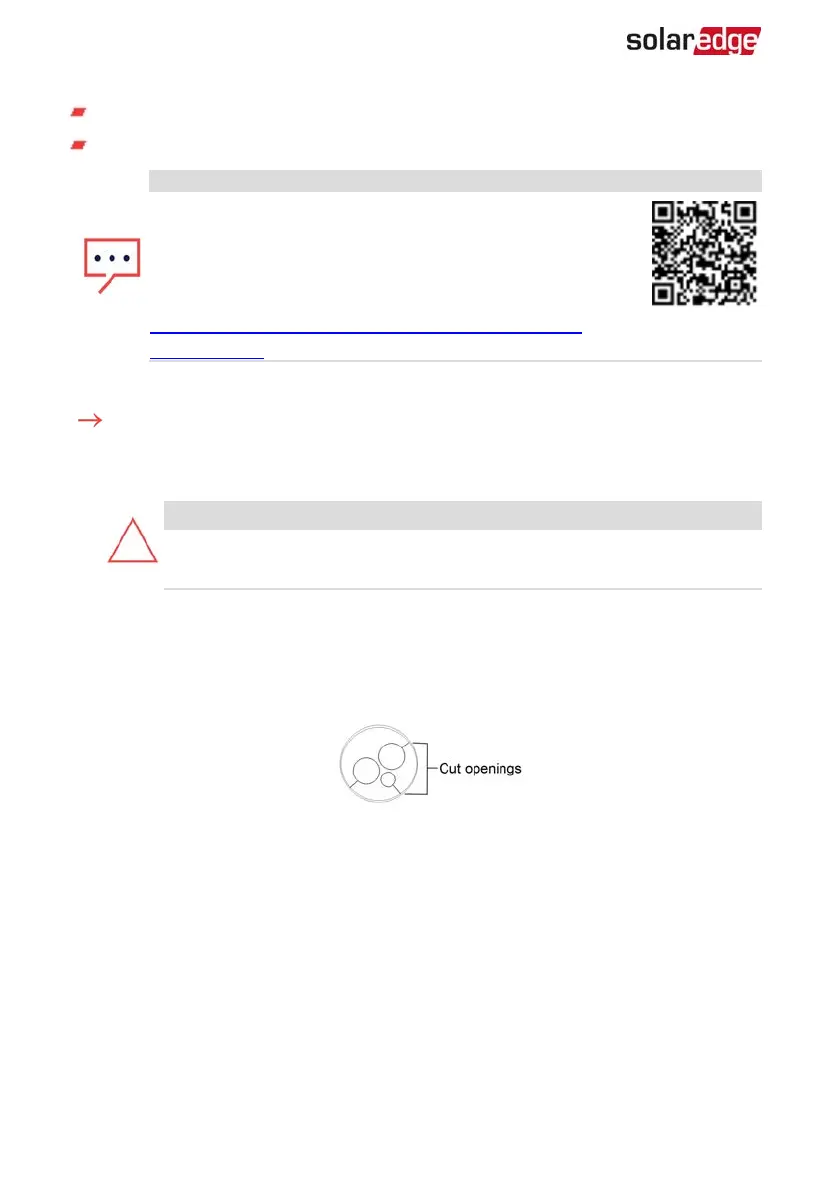

Figure 19: Rubber fitting
CAT6 standard cables have eight wires (four twisted pairs), as shown in the diagram
below. Wire colors may differ from one cable to another. You can use either wiring
standard, as long as both sides of the cable have the same pin-out and color-coding.
StorEdge Three Phase Inverter MAN-01-00648-1.3
49 Creating an Ethernet (LAN) Connection

SolarEdge StorEdge SE10K-RWS Specifications

General

Topology	Transformerless
Max Efficiency	98.3%
Dimensions	540 x 315 x 260 mm
Noise Level	< 50 dBA
Protection Rating	IP65
Rated AC Power	10000 W
AC Frequency	50/60 Hz
Maximum Efficiency	98.3%
Number of MPP Trackers	1
Warranty	12 years
AC Output Power	10000 W
Operating Temperature Range	-25°C to +60°C
AC Voltage	230 / 400 Vac
Max Input DC Voltage	480 V
Communication Interfaces	Ethernet, RS485, ZigBee (optional)
Max Charge/Discharge Current	25 A
Max Charge/Discharge Power	10000 W
Communication	Ethernet, RS485, ZigBee (optional)
