SolarMax 6000S - AC Feed Line and Connector Confectioning

16
2000S 3000S 4200S 6000S
Mains fuses
(C characteristic)
10A 13A 20A 25A
Minimum line
line cross-section AC
1.5 mm
2
1.5 mm
2
2,5 mm
2
4 mm
2
■ We recommend using larger conductor cross-sections in order to minimise line losses.
■ The  exible cable is connected to a junction box with a maximum length of one metre.
From here the installation may be continued with a rigid TT cable.
Confectioning the AC connector
■ Ensure that the cable is de-energised.
■ Connect the AC cable socket with a  exible cable according to EN 60309-2 /
VDE 0623.
■ Connection of strands with a max. cross-section of 4 mm
2
can be connected.

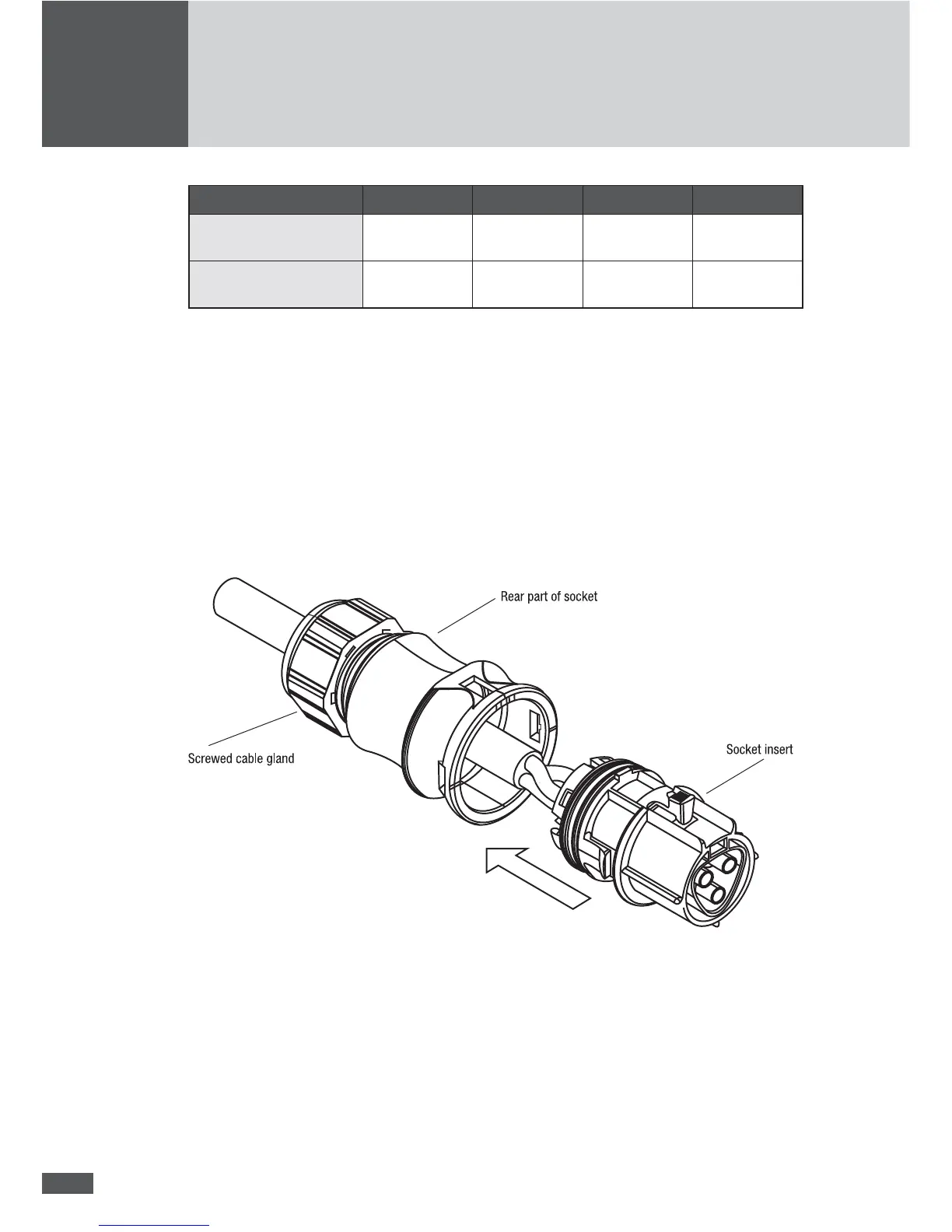

1. Push the rear part of the socket over the cable.
2. Press wire end sleeves onto the stripped strands.
3. Connect the strands with the socket insert as follows:
– Protective earth conductor PE with the screw terminal with earthing symbol
– Neutral conductor N on screw terminal with the label N
– Phase L on screw terminal with the label L
– Tightening torque 0.8 – 1.0 Nm
