SolarMax 6000S - Efficiency Curves; Efficiency Data for 2000 S and 3000 S Models

51
en

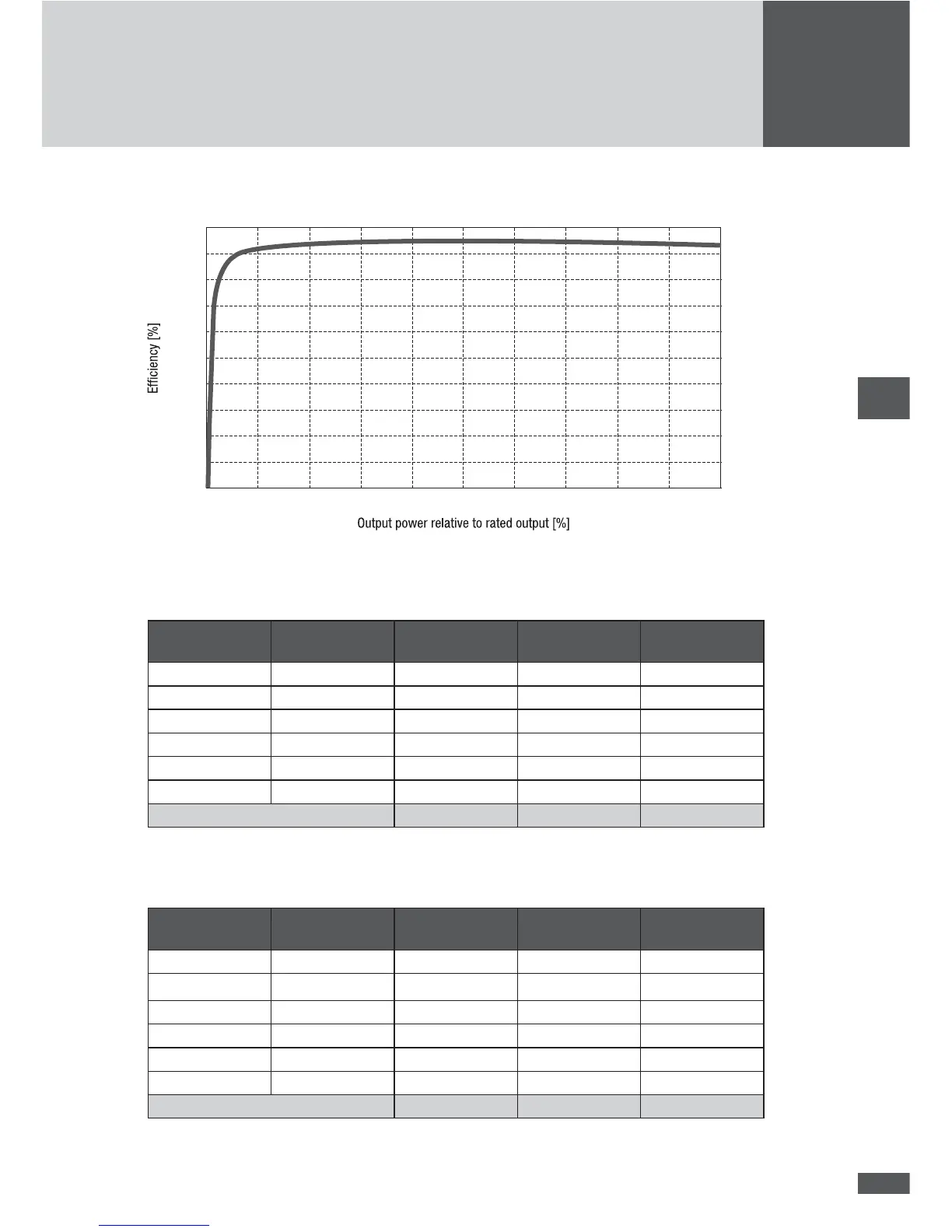

14.2 Ef ciency curve
10 20 30 40 50 60 70 80 90 100
100
90
80
70
60
50
40
30
20
10
0
Efficiency SolarMax 2000S
PAC
[W]
Prelative
[%]
η(250 VDC)
[%]
η(300 VDC)
[%]
η(400 VDC)
[%]
90 5 85.2 85.8 87.1
180 10 89.8 90.2 93.2
360 20 93.2 93.5 94.8
540 30 94.6 94.7 95.6
900 50 95.4 95.6 96.1
1800 100 95.2 95.4 96.0
European efficiency 94.4 94.6 95.4
Efficiency SolarMax 3000S
PAC
[W]
Prelative
[%]
η(250 VDC)
[%]
η(300 VDC)
[%]
η(400 VDC)
[%]
125 5 87.0 87.5 89.7
250 10 91.5 91.8 93.6
500 20 94.2 94.5 95.5
750 30 94.9 95.3 95.6
1250 50 95.2 95.6 96.1
2500 100 94.4 95.1 95.5
European efficiency 94.4 94.9 95.5
