Solarwize SWF850 - Connecting to the Digital Input (DI)

Solarwise SWF850 QuickStart/Troubleshooting Manual 10 / 73
Connector Type Screw Type Terminal
Wire Size
AWG 12-30，length of exposed copper 6-7mm
Signal Type Direct Voltage
Signal Range 0 – 5V
Accuracy +1.0% Full Scale

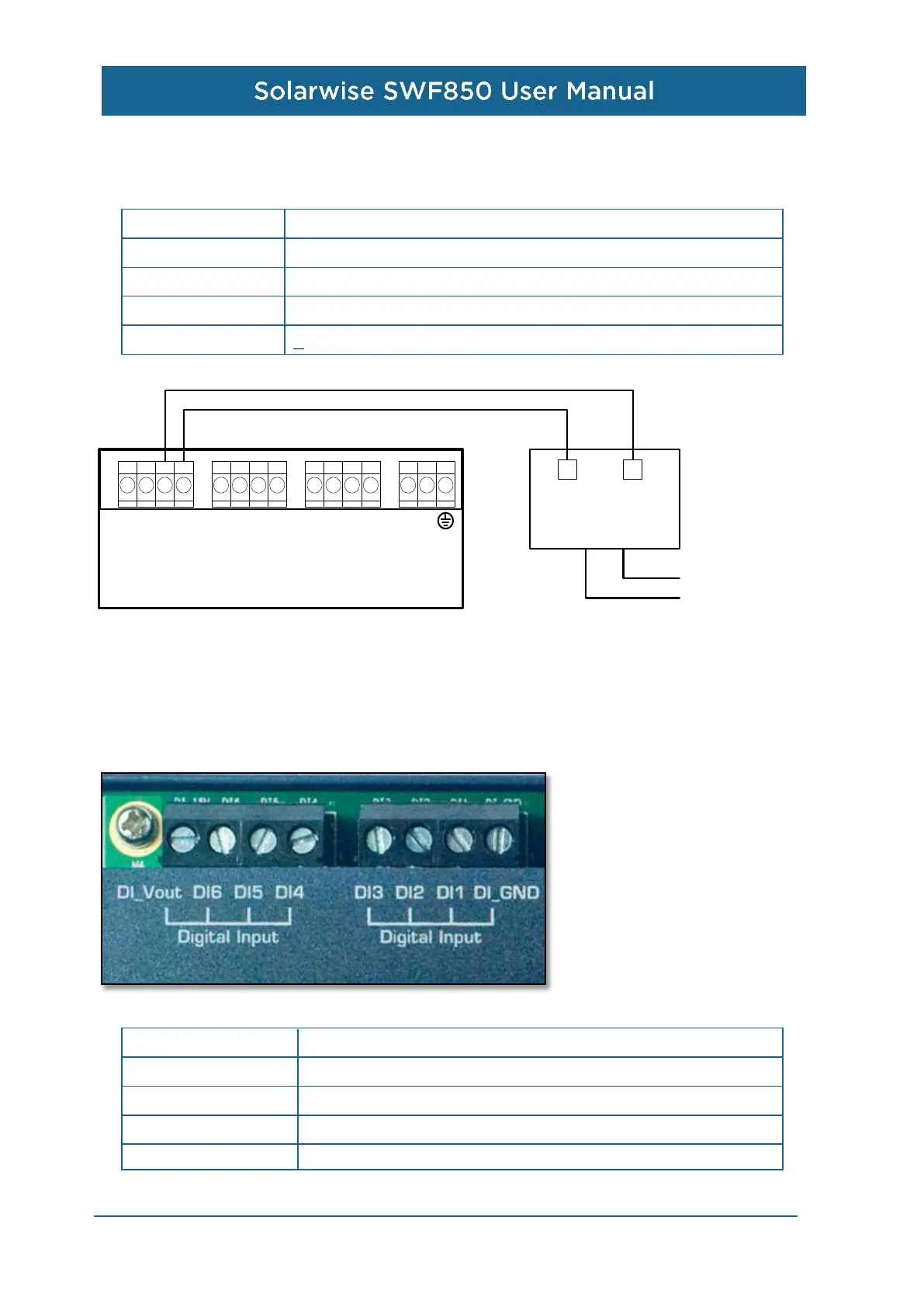

The connection method for AI5 and AI6 is described as below.
SWF850
24VAI424V
24VAI1
+ -
AI3 AI224V
24VDC
4-Wire Type
Sensor
+
-
Sensor
Power Input
AI6GND
GND AI5
2.4.4 Connecting to the Digital Input (DI)
SWF850 has a total of 6 digital inputs DI1 to DI6, DI_Vout is the built-in internal excitation voltage of
15V. DI input can be set to status input for monitoring the status of SPD or MCCB, also can be set to
pulse input for energy collection.
Connector Type Screw Type Terminal
Wire Size
AWG 12-30，length of exposed copper 6-7mm
Signal Type Digital Status Contact
Signal Range
15VDC，5mA
Isolation Capability 1000VAC, 1min.
