Solarwise SWF850 QuickStart/Troubleshooting Manual 12 / 73

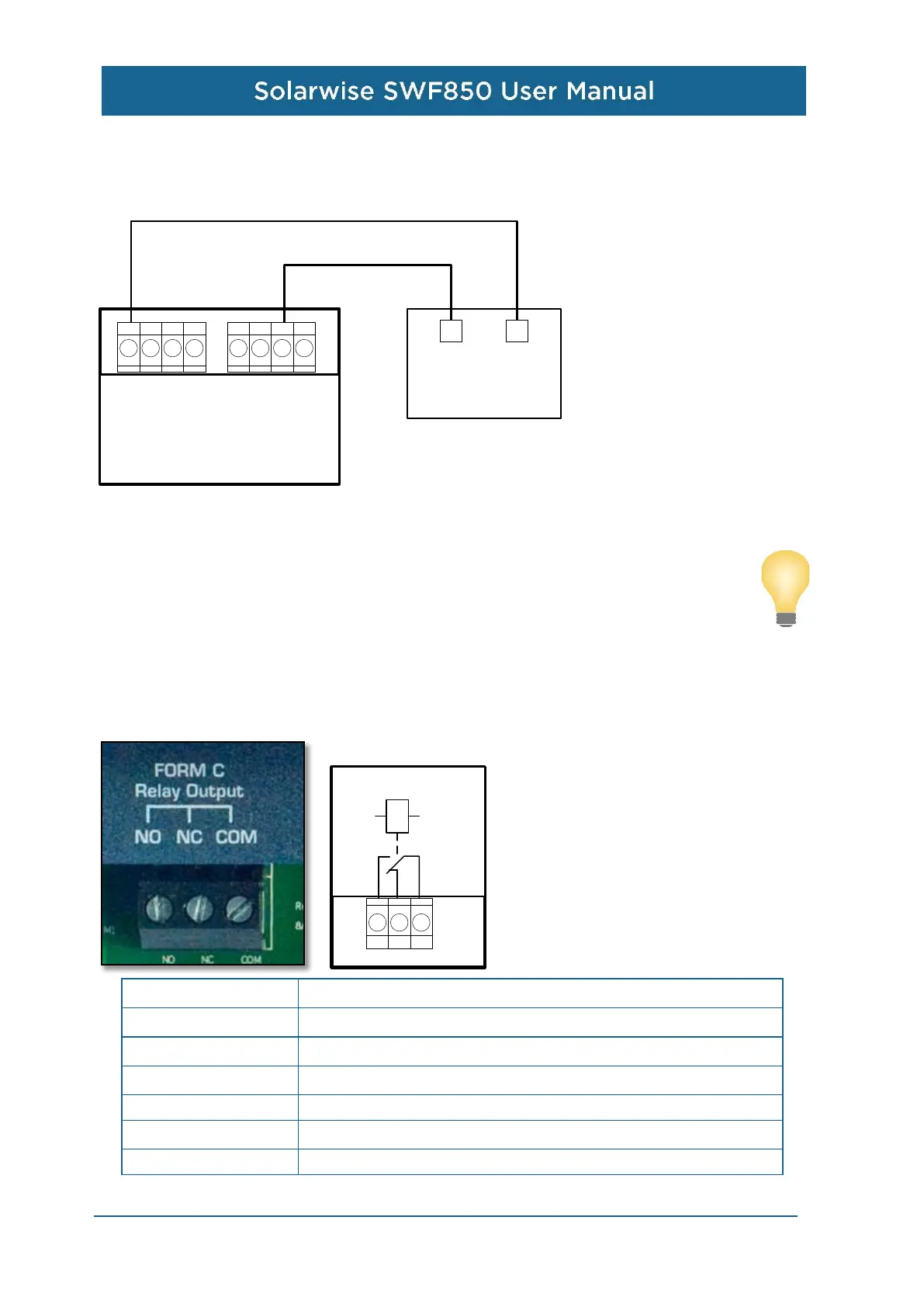

The connection method between DI and pulse output of energy meter is described as below.
SWF850
DI3 DI1DI5 DI4 DI2
DI
GND
DI
Vout
DI6
Pulse Output
Meter
-
+
To complete the Kt pulse setup of the energy meter, please goto section 4.12.1.7.3 under DI setting.
IMPORTANT: For installations that do not have such meter installed, or do not have pulses
available, it is necessary to goto the software setup to link the total energy kWh data to the
inverter energy data, instead of a real meter. For this procedure, please goto section
4.12.6.1.
2.4.6 Connecting to the Digital Output (DO)
SWF850 has one mechanical relay digital output, as shown in Figure below.
COMNONC
Relay OUT
DO Type From C
Connector Type Screw Type Terminal
Wire Size
AWG 12-30，length of exposed copper 6-7mm
Signal Type Relay Output
Relay Lifetime 100,000 operations
Contact rating 8A, 250VAC/24VDC
Isolation Capability 1500VAC, 1min.
