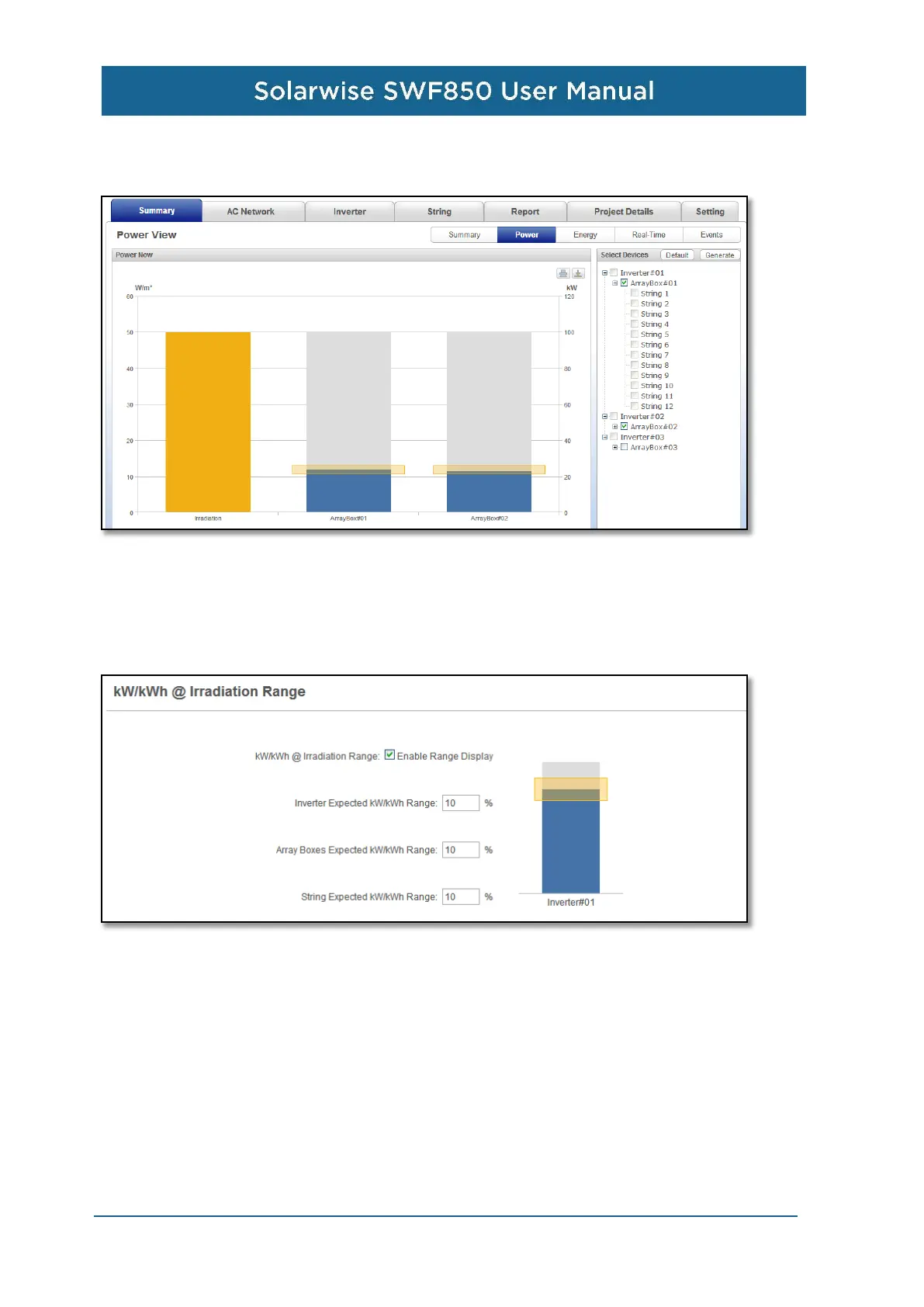

The yellow rectangle overlapping on the power bar graph means the expected power range should
be generated at current irradiation. It is calculated based on the history power data. It is a very good
reference used to reflect the now generation performance by the equipments comparing with the
history generation. The function for expected power range could be enabled or disabled in the
“Setting-> Global Setting -> kW/kWh @ Irradiation Range” and so does the range.
4.5.3 Energy
All the energy generated by critical equipments can be show on the power view graph.
