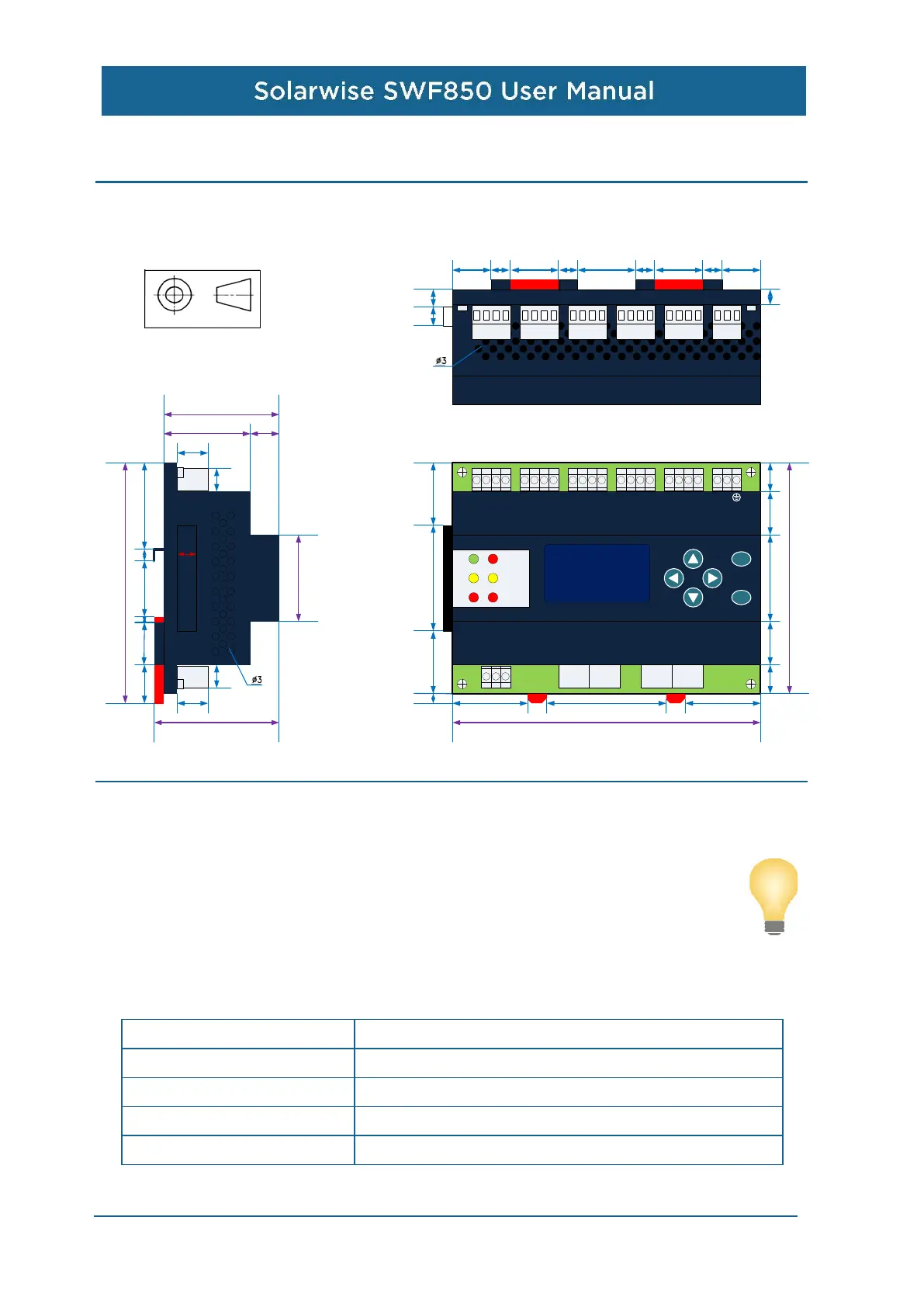

2.3 Product Dimensions
53mm
22mm 22mm28mm
32.5mm32.5mm
8.7mm
11mm
D
B
2
5
11mm
123mm
45mm
44mm
22mm 24mm 40.5mm4mm3mm 29.5mm
63mm
26mm 10mm10mm
26mm 10mm10mm
8.2mm
5mm
18mm
11.7mm
118mm
45mm
Esc
Enter
LCD
DI3 DI1DI5 DI4 DI2
DI
GND
DI
Vout
DI6
16.5mm16.5mm 20mm20mm
COMNO NC
Relay OUT
Ethernet1 COM1 COM2
D
B
2
5
SWF850
RUN ALARM
RX2
TX2
RX1
TX1
24V AI4 24V 24V AI1
+ -
AI3 AI224VAI6GND
AI5GND
24VDC
SolarWise
RJ45
CONNECTOR
RJ45
CONNECTOR
RJ45
CONNECTOR
RJ45
CONNECTOR
Ethernet2
164mm
39.6mm 39.6mm10.8mm 10.8mm63.2mm
11.7mm
18mm
16mm
60mm
2.4 Installation
The following procedures describe the step by step installation methods for the SWF
device products.
Note: Before powering up the device, ensure all wires are properly connected to avoid
short circuit and shock.
2.4.1 Ensuring the Unit is used in a Correct Environmental Condition
Installed Location Indoor
Mounting Standard DIN 35mm Rail Mount
Operating Temperature
DC power supply version: -20 to +70
℃
Storage Temperature
-30 to +80
℃
Relative Humidity 5% to 95%
