Solax X3-PRO G2 Series User Manual

Step 2: Hang the inverter on the bracket.

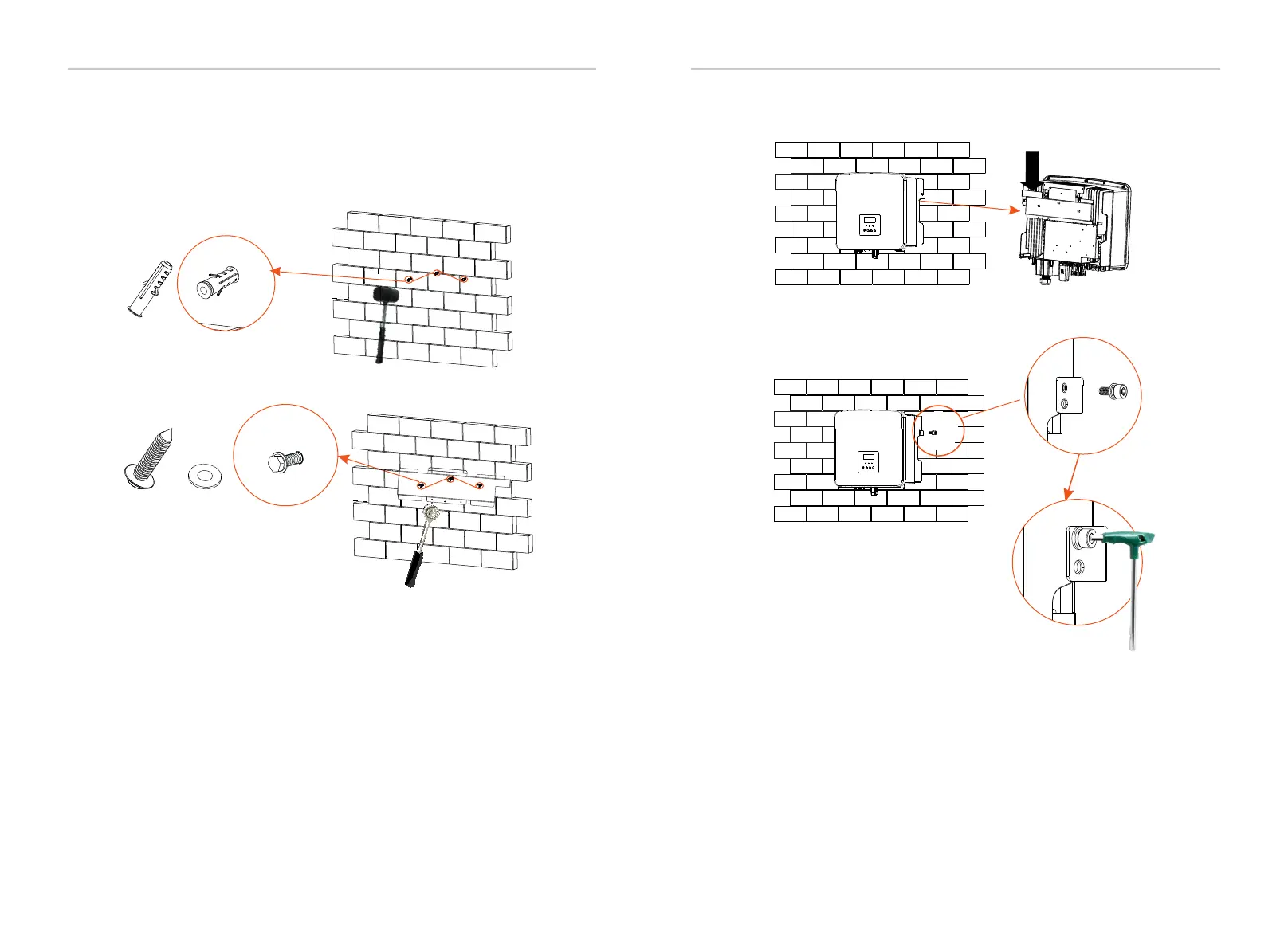

c) Insert expansion bolts into the holes, use rubber hammer to knock the
expansion bolts into the wall.
d) Insert the self-tapping screws into the gaskets and use the outer hexagon
wrench to tighten them.
c)
Expansion bolts
Rubber hammer
d)
Self-tapping
screw
Outer hexagonal wrench
Gasket
Step 3: Tighten the inverter and bracket.
Ø
f ) Use the inner hexagonal wrench to tighten the inner hexagonal screw on
the right side of the inverter.
e)
f )
Inner hexagonal wrench
(Torque :1.2±0.1 N·m)
Installation Installation
e) Hang the buckle of the inverter to the corresponding position of the
bracket;
Ø
24 25

Solax X3-PRO G2 Series Specifications

General

Model	X3-PRO G2 Series
Category	Inverter
MPPT Efficiency	99.9%
Max. DC Voltage	1100V
THDi	<3%
DC Switch	Yes
European Efficiency	98%
Communication	WiFi, Ethernet, RS485
Operating Temperature Range	-25°C to +60°C
AC Voltage Range	310V-480V
AC Grid Frequency	50/60 Hz
Warranty	10 years
Rated Power	6kW, 8kW, 10kW, 12kW, 15kW, 20kW, 25kW, 30kW
Number of MPPTs	2 or 4 (depends on model)
AC Output Power	6kW / 8kW / 10kW / 12kW / 15kW / 20kW / 25kW / 30kW
Nominal AC Voltage	400V
Protection	DC Reverse Polarity Protection, AC Short Circuit Protection, Output Over Current Protection, Output Over Voltage Protection
