PV+
PV-

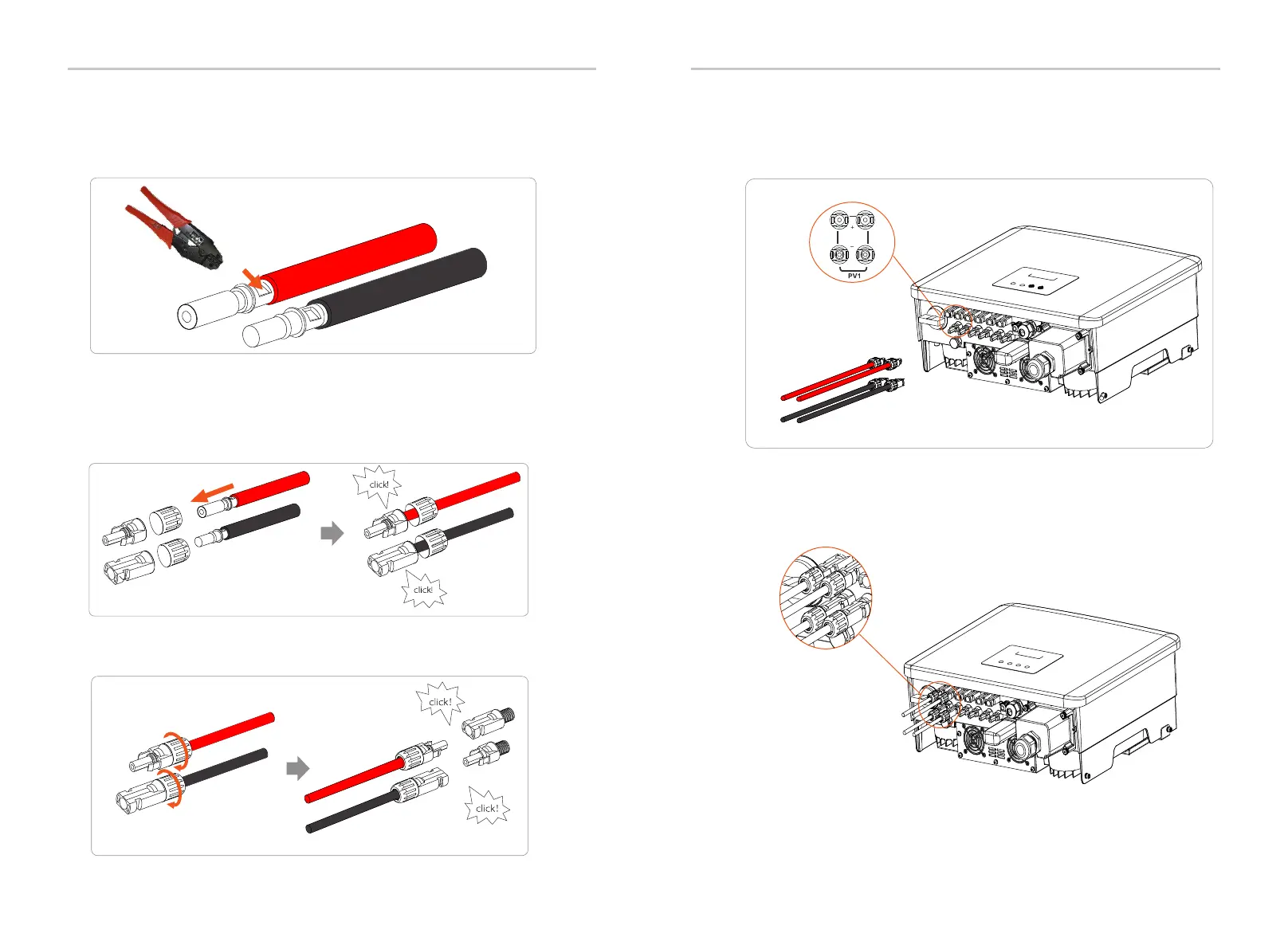

Step 5. Divide the PV terminal into 2 parts - the plug and the fastening head.
Insert the cable through the fastening head and the corresponding plug. Note
that the red and black lines correspond to different plugs. Finally, force the
cable pair into the plug, there will be a "click" sound, which indicates that the
connection is completed.
Step 6. Tighten the fastening head and insert into the corresponding positive
and negative (PV+/PV-) ports of the inverter.
Step 4. Tighten the PV pin contact and the wiring harness to make the
connection tight without looseness.
Crimping Tool
Negative
Positive
Positive
Negative
The following is the location of the inverter's positive and negative (PV+/PV-)
ports.
Schematic diagram of the inverter PV connected.
PV+
PV+
PV-
PV-
28 29
Electrical Connections Electrical Connections

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Solax X3-PRO G2 Series and is the answer not in the manual?

Solax X3-PRO G2 Series Specifications

General IconGeneral
ModelX3-PRO G2 Series
CategoryInverter
MPPT Efficiency99.9%
Max. DC Voltage1100V
THDi<3%
DC SwitchYes
European Efficiency98%
CommunicationWiFi, Ethernet, RS485
Operating Temperature Range-25°C to +60°C
AC Voltage Range310V-480V
AC Grid Frequency50/60 Hz
Warranty10 years
Rated Power6kW, 8kW, 10kW, 12kW, 15kW, 20kW, 25kW, 30kW
Number of MPPTs2 or 4 (depends on model)
AC Output Power6kW / 8kW / 10kW / 12kW / 15kW / 20kW / 25kW / 30kW
Nominal AC Voltage400V
ProtectionDC Reverse Polarity Protection, AC Short Circuit Protection, Output Over Current Protection, Output Over Voltage Protection
