32 • Recommended Wiring diagrams
_____________________________________________________________________________________________

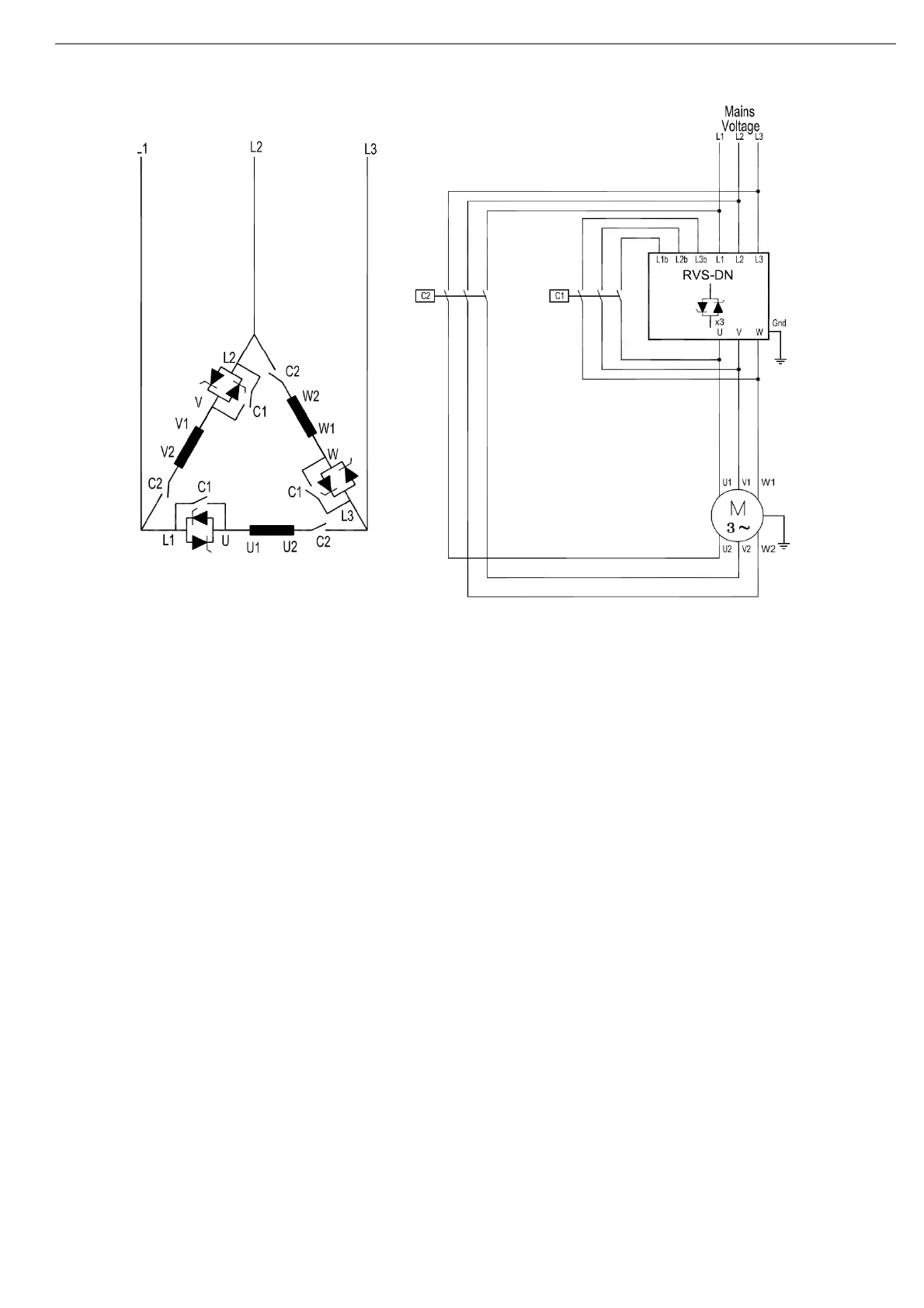

4.22.4 RVS-DN Connected Inside Delta w/Bypass Contactor and Inside Delta Contactor
RVS-DN connection Inside Delta with bypass contactor to the RVS-DN and Inside Delta
contactor.
C1 is a bypass contactor.
C2 is an Inside Delta contactor.
U1-U2, V1-V2, W1-W2 are motor windings.
L1-U, L2-V, L3-W are RVS-DN controlled phases.
L1b, L2b, L3b are preparation for bypass to maintain current protection when the RVS-DN is
bypassed.
