Solcon RVS-DN 310 - RVS-DN 1000 V and RVS-DN 1200 V Models

46 • Dimensions
_____________________________________________________________________________________________
5.2 RVS-DN 1000V and RVS-DN 1200V Models

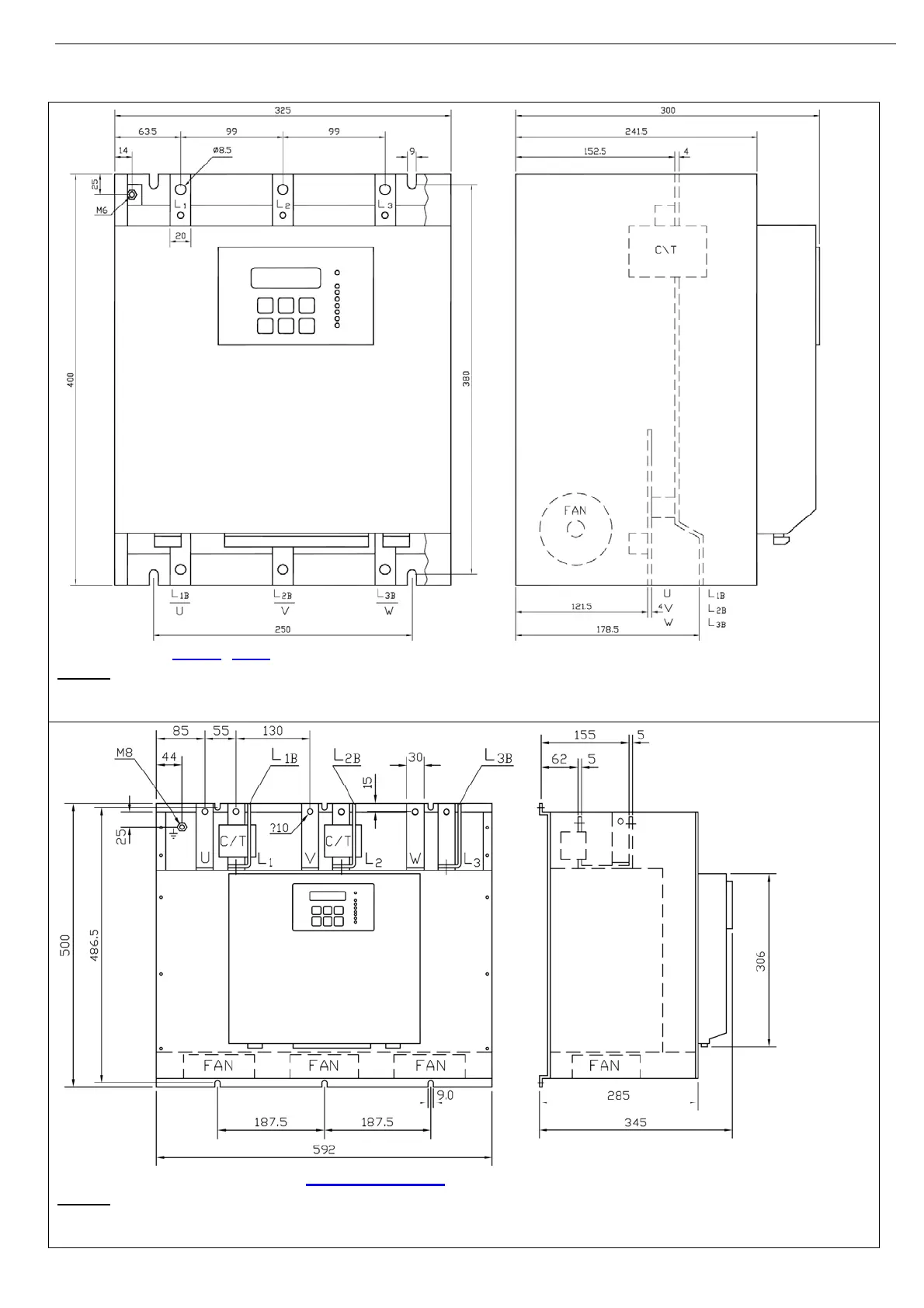

RVS-DN 105A 1000V
(Note: no 1200V version for 105A)
Notes:
• Must be operated with a bypass contactor
• Add 20 mm to depth dimension when optional remote key-pad (option D) is installed.
RVS-DN 170A 210A 310A 390A 1000V and 1200V
Notes:
• Must be operated with a bypass contactor
• Add 20 mm to depth dimension when optional remote key-pad (option D) is installed.
