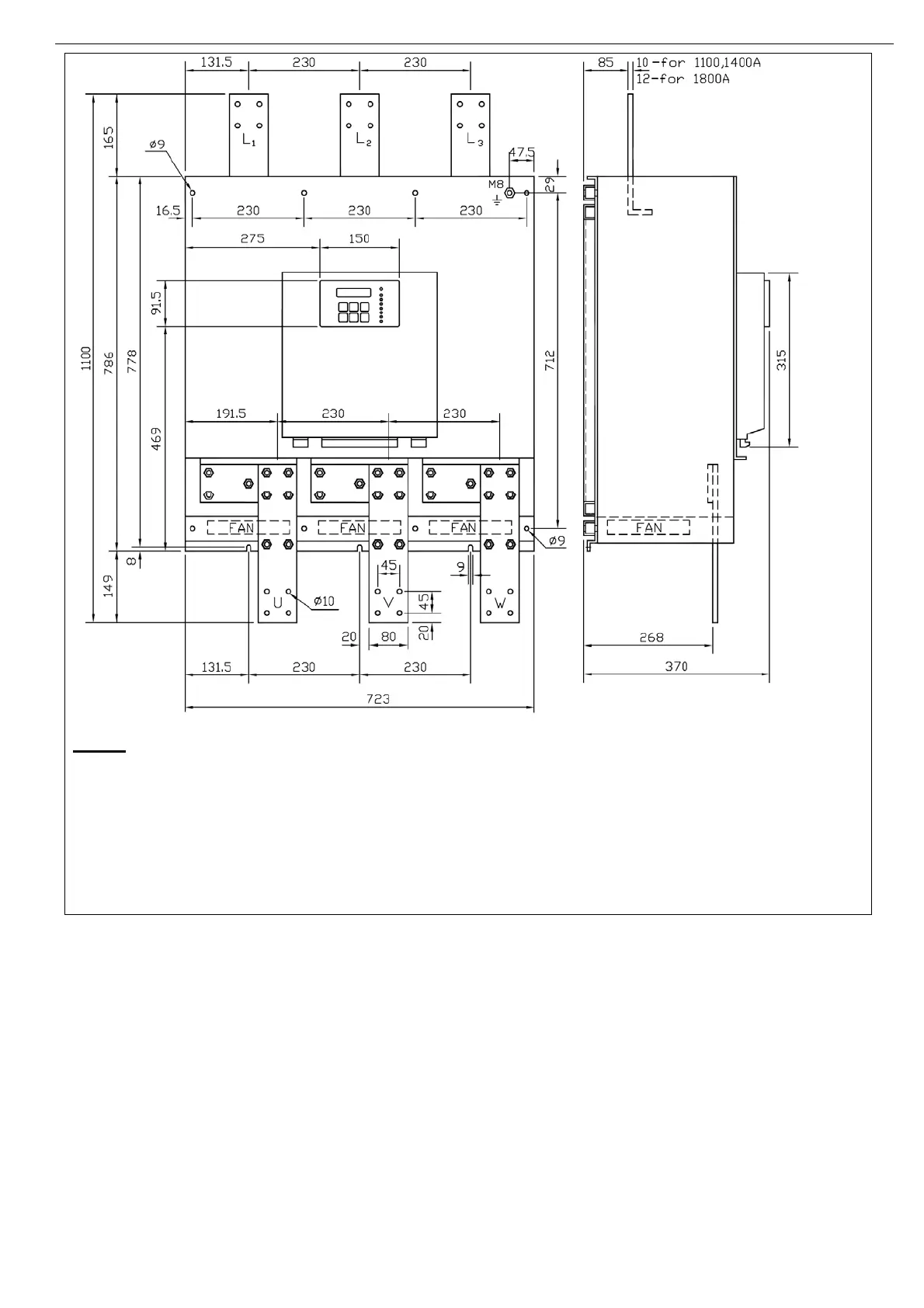

43 • Dimensions
________________________________________________________________________________________________
RVS-DN 1100A 1400A 1800A
Notes:
• Add 20 mm to depth dimension when optional remote key-pad (option D) is installed.
• Must be operated with a bypass contactor
• Add space for current transformers (Supplied separately from main unit) and bus bars for preparation
for bypass
• Approximate current transformers dimensions:
W=240mm, H=130mm, D=90mm. (1100A)
W=270mm, H=155mm, D=90mm. (1400A)
W=270mm, H=155mm, D=100mm. (1800A)
