SOLIS RHI-5G Series User Manual

.70. .71.
7.5+0/-0.2mm
Die: 25 mm²

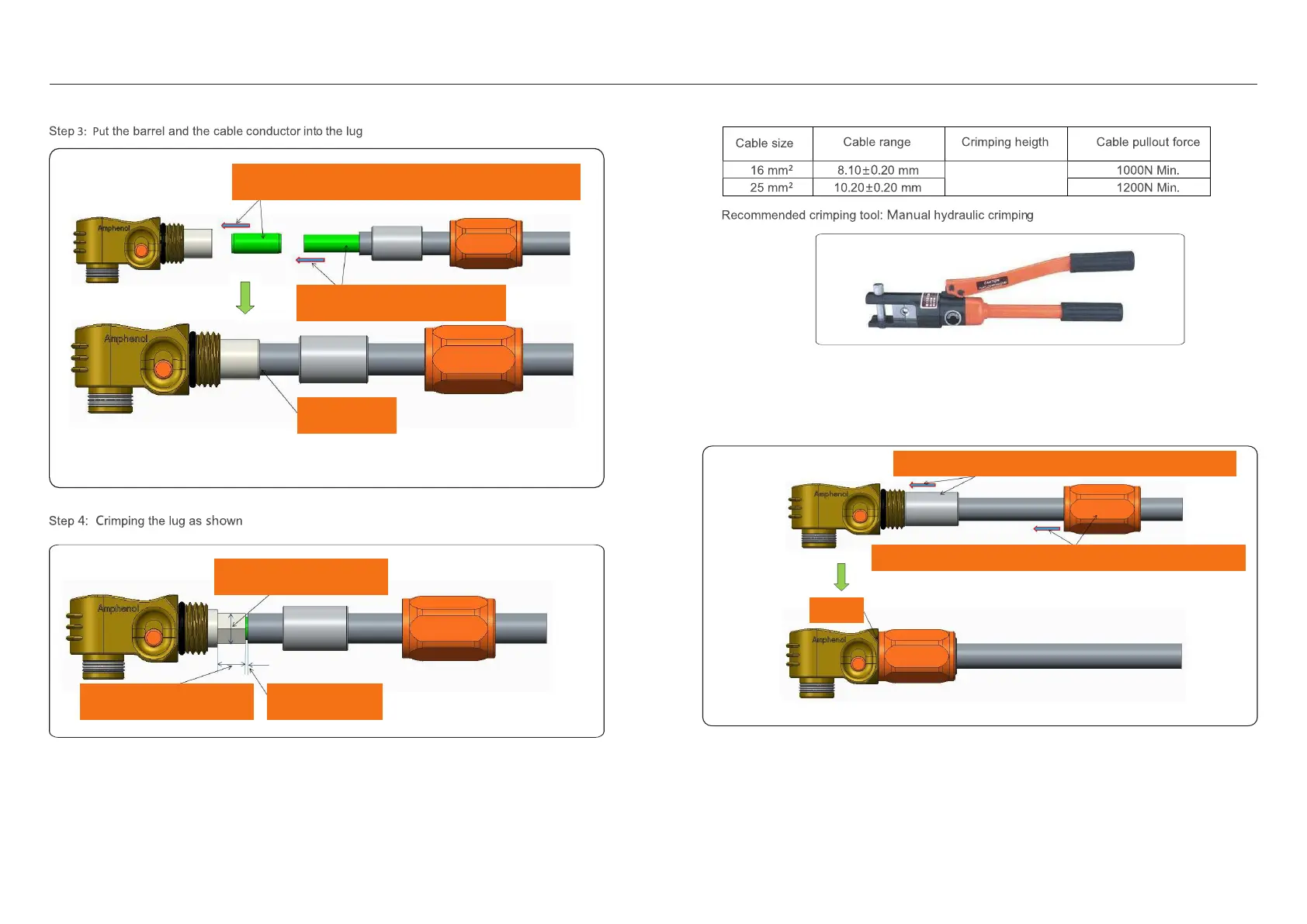

Step 5: Install grommet and back shel
Assemble the grommet(item 3)onto the connector body(item 1)firstly
Then assemble back shell(item 4)onto the connector body(item 1)and tighten
No gap
When16mm² cable apply,assembly barrelinto lug firstly as shown
Thenputtheconductorintothelug
Tiecloselyinhere
Crimping heigth is 7.5+0/-0.2mm
Crimping length is 7.5 0 5± . mm Gap is 1.0 mm Ref.
10. Appendix 10. Appendix

SOLIS RHI-5G Series Specifications

General

Type	Hybrid Inverter
Max DC Voltage	600 V
Max DC Input Power	6500 W
Nominal AC Output Power	5000 W
Max AC Output Power	5500 W
Number of MPPTs	2
Battery Voltage Range	40-60V
Max Charge/Discharge Current	100 A
Protection Degree	IP65
Frequency	50/60 Hz
Operating Temperature Range	-25°C to +60°C
Cooling Method	Natural Convection
Model	RHI-5G
Rated Power Output	5kW
MPPT Voltage Range	90 V - 520 V
Efficiency	97.6%
Communication Interfaces	RS485, WiFi
Nominal AC Voltage	230V
