4. Installation
4.1 Select a Location for the Inverter

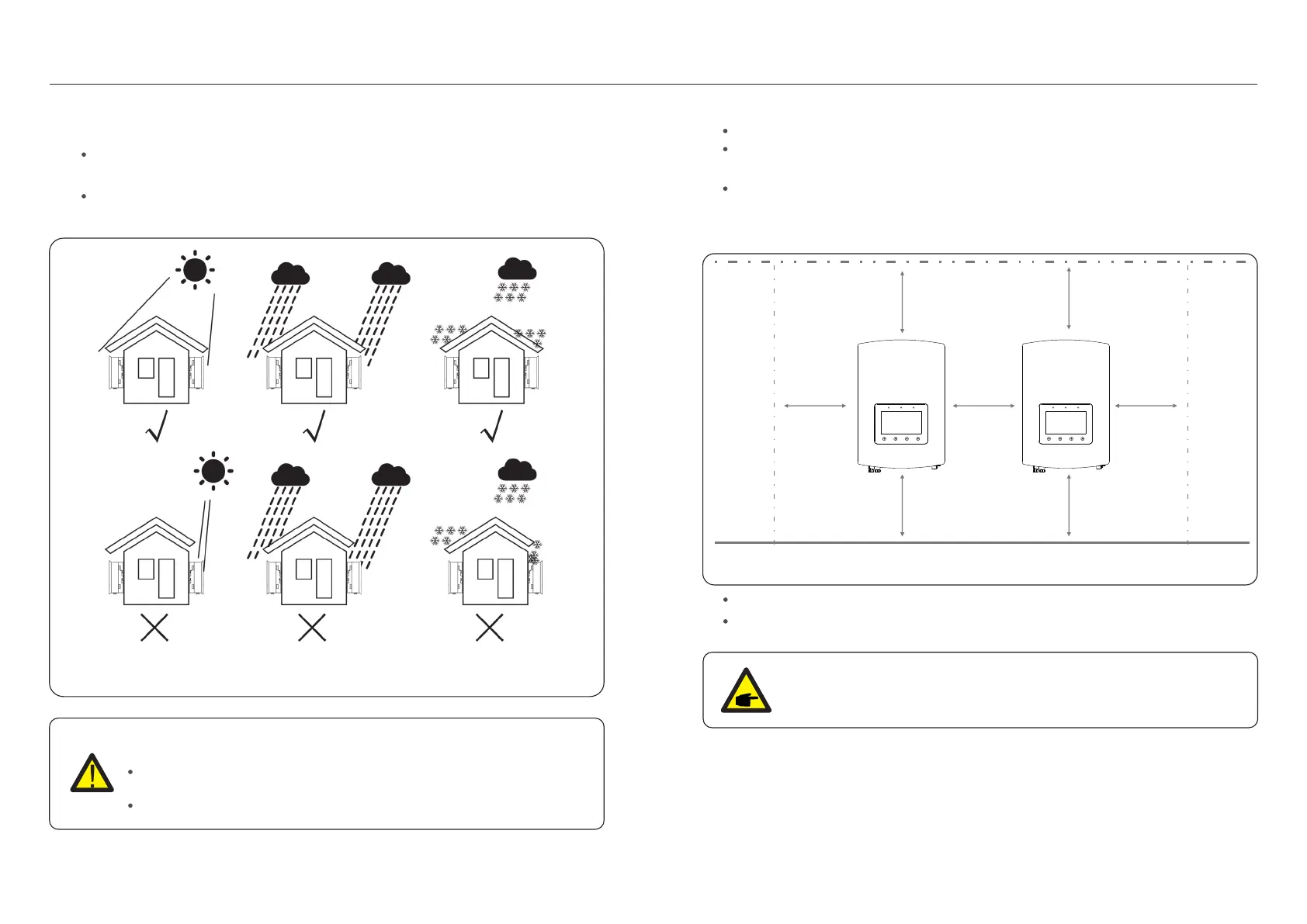

Figure 4.1 Recommended Installation locations
To select a location for the inverter, the following criteria should be considered:
Exposure to direct sunlight may cause output power derating. It is recommended to
avoid installing the inverter in direct sunlight.
It is recommended that the inverter is installed in a cooler ambient which doesn't
exceed 104F/40C.
4. Installation
To avoid overheating, always make sure the flow of air around the inverter is not
blocked. A minimum clearance of 300mm should be kept between inverters or
objects and 500mm clearance between the bottom of the machine and the ground.
Visibility of the LEDs and LCD should be considered.
Adequate ventilation must be provided.
NOTE:
Nothing should be stored on or placed against the inverter.
Install vertically with a maximum incline of +/- 5 degrees, exceeding this may cause
output power derating.
300mm
500mm
500mm
300mm 300mm
300mm
300mm
Figure 4.2 Inverter Mounting clearance
Install on a wall or strong structure capable of bearing the weight of the machine (17kg).
WARNING: Risk of fire
Despite careful construction, electrical devices can cause fires.
Do not install the inverter in areas containing highly flammable materials or
gases.
Do not install the inverter in potentially explosive atmospheres.
