SOLIS RHI-5G Series User Manual

.15..14.
4. Installation4. Installation
Terminal block
Housing
Cable gland
5. Make sure the rib of the terminal block and the groove on the housing engage perfectly
until a “click” is heard to felt.
4. Each of the terminals are labeled. Ensure that the correct conductor is fastened
(1.2 N.m. torque) to the correct terminal.

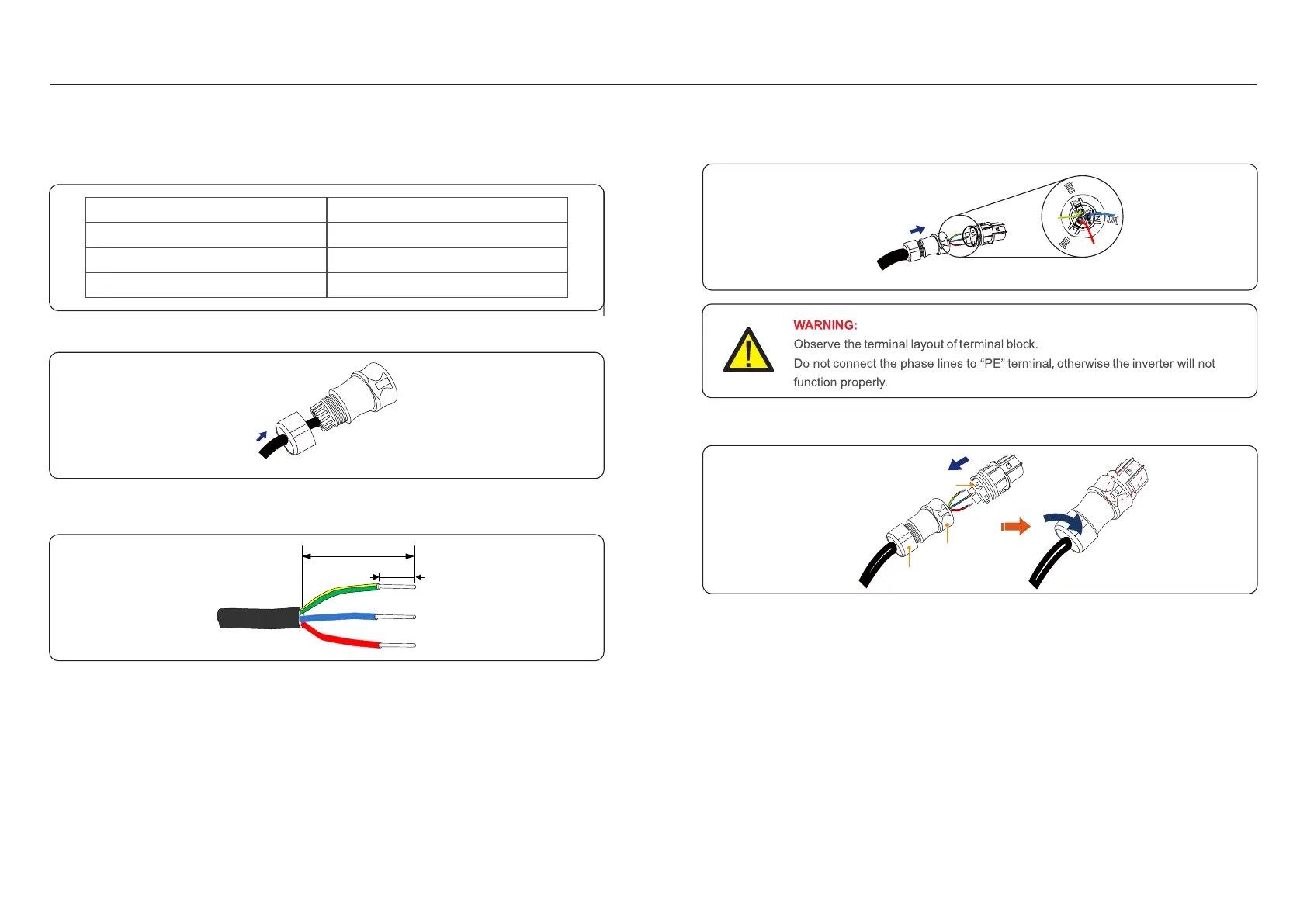

1. Make sure you use a cable within the correct specifications as shown in the image below.
3. Remove a length of 40mm of the cable jacket and strip the wire insulation to a length of
8 – 15mm.
2. Lead the AC cable through the cable gland and the housing.
Describe
Wire diameter
10~12mm
2.5~6mm²
12mm
Traverse cross sectional area
Exposure Length
Numerical value
40 mm
8 mm - 15 mm
PE
L
N
There are two AC terminals and the assembly steps for both are the same.
TakeouttheACconnectorpartsfromthepackaging.
4.5 AssemblingtheACConnector

SOLIS RHI-5G Series Specifications

General

Type	Hybrid Inverter
Max DC Voltage	600 V
Max DC Input Power	6500 W
Nominal AC Output Power	5000 W
Max AC Output Power	5500 W
Number of MPPTs	2
Battery Voltage Range	40-60V
Max Charge/Discharge Current	100 A
Protection Degree	IP65
Frequency	50/60 Hz
Operating Temperature Range	-25°C to +60°C
Cooling Method	Natural Convection
Model	RHI-5G
Rated Power Output	5kW
MPPT Voltage Range	90 V - 520 V
Efficiency	97.6%
Communication Interfaces	RS485, WiFi
Nominal AC Voltage	230V
