4. Installation4. Installation

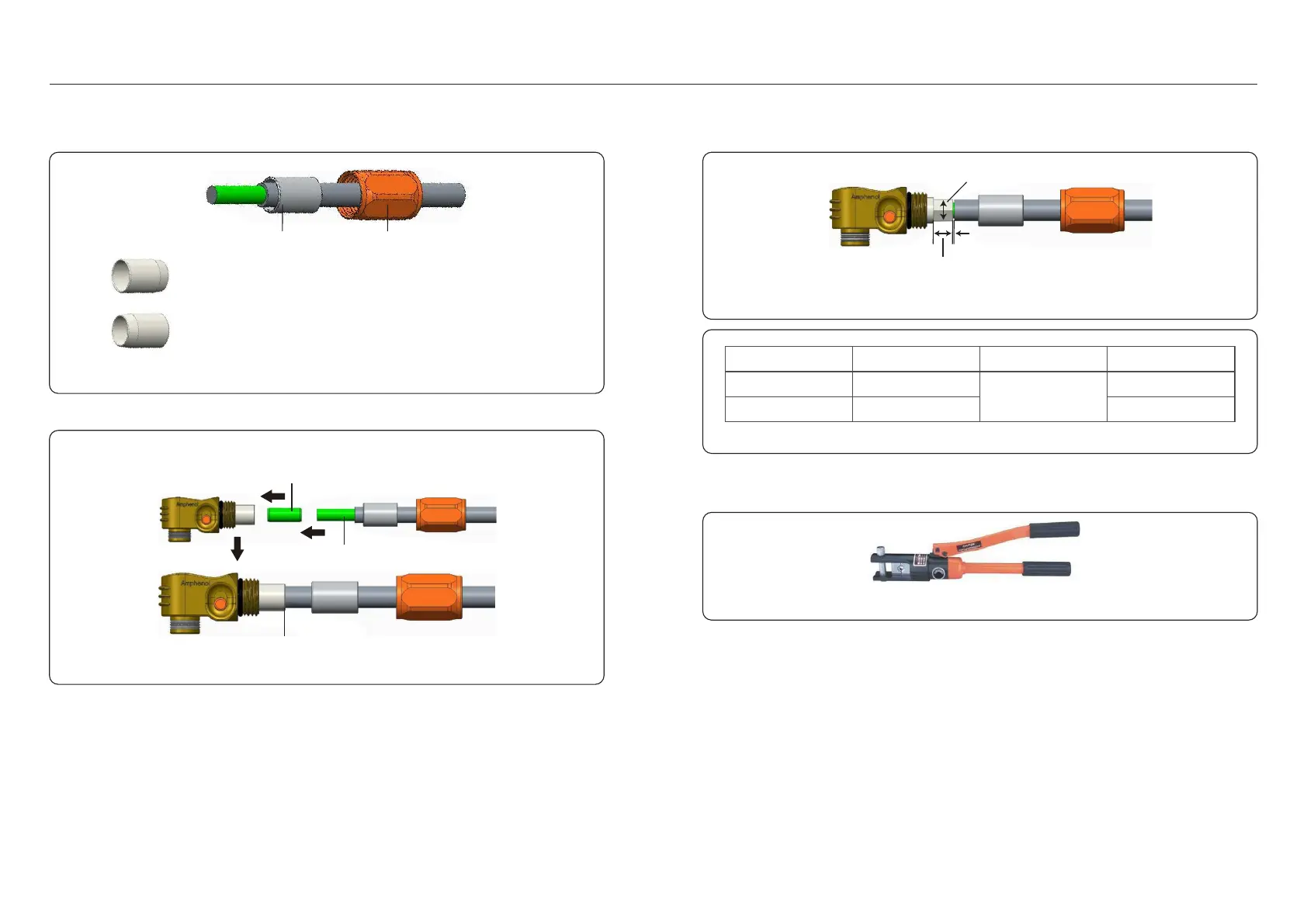

Figure 4.18
Figure 4.19
Crimping heigth is 7.5+0/-0.2mm
Table 4.1
Figure 4.21
Step 2: Un-assemble Grommet and Back shell over the cable as shown.
Step 3: Put the barrel and the cable conductor into the lug.
Step 4: Crimping the lug as shown.
Recommended crimping tool: Manual hydraulic crimping
Die:25 mm²
.18..17.
Grommet
Back shell
Correct direction: The chamfer in the rear position
Wrong direction: The chamfer at the front position
When 16mm² cable apply,
assembly barrelinto lug firstly as shown
Then put the conductor into the lug
Tie closely in here
Crimping length is 7.5 0.5± mm
Gap is 1.0 mm Ref.
Figure 4.20
Cable size
16mm²
Cable range
8.10±0.20mm
Crimping heigth Cable pullout force
1000N Min.
25mm²
10.20±0.20mm
7.5+0/-0.2mm
1200N Min.
