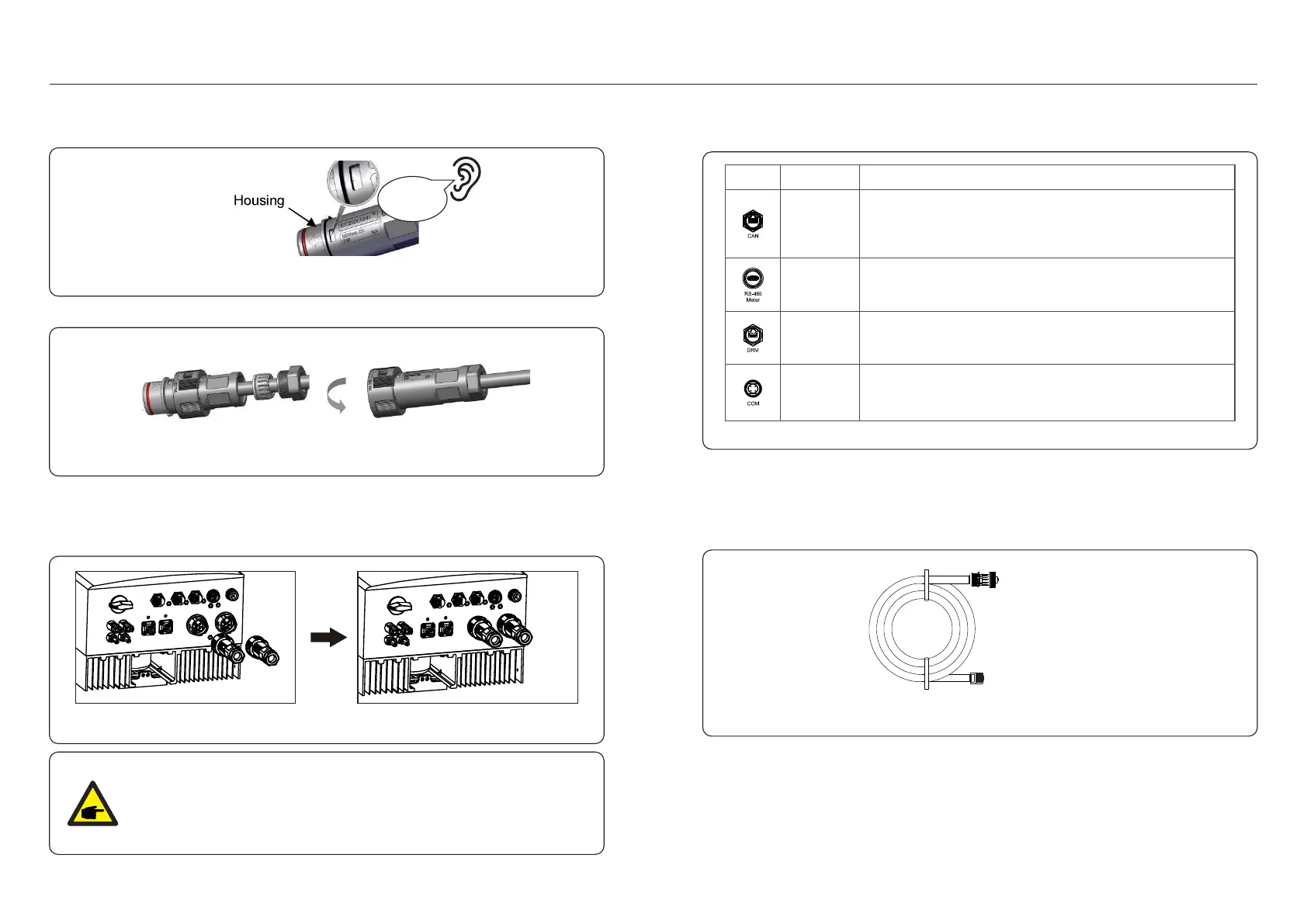

4. Installation4. Installation
5. Insert Seal and Clamp Finger into socket ,then tighten the nut , torque 4+/-0.5N·m.
4. Push Housing into Body.
6. The same installation for both cable end plug and socket connectors.
7. Mating plug andsocket: Push the plug into the socket completely, then rotate the
locker according to the direction instructed by the marks on thelocker.
Figure 4.26
Figure 4.27
Figure 4.28
4.7 Communication Cable Installation
4.7.1 Communication Port Definition
Port
CAN Port
RS-485
Meter Port
DRM Port
COM Port
Function
1. Used for CAN communication between inverter and
lithium battery BMS.
2. (Optional) Used for battery temperature sensor
connection when lead-acid battery is used.
1. Used for RS485 communication between inverter and
the compatible smart meter. It is necessary to realize the
normal hybrid control logics.
1. (Optional) To realize Demand Response or Logic
interface function, this function may be required in UK
and Australia.
1. (Optional) Used for Solis Data Logger Connection.
2. (Optional) Used for Modbus RTU communication with
a 3rd party external device.
4.7.2 CAN Port Connection
4.7.2.1 CAN Communication with Lithium Battery
1. A 3m length pre-made CAN cable is provided in the accessory package with one
end marked with “To CAN” and the other end marked with “To Battery”.
To CAN
To Battery
2. Insert the RJ45 terminal on the end of the CAN cable (Marked with “To CAN”) to the
CAN port at the bottom of the inverter and fasten the swivel nut.
3. Connect the other end marked with “To Battery” to the battery.
Table 4.3
Figure 4.29
Click
NOTE:
Before mating the plug and socket, please double check both AC Grid and
AC Backup connectors. Do not connect the grid cables to the AC Backup
port or connect the backup load cables to the AC Grid Port.
Otherwise, it may leads to malfunction or damage.
