6. Operation 6. Operation
After setting the language, press "ESC" to access the main page.

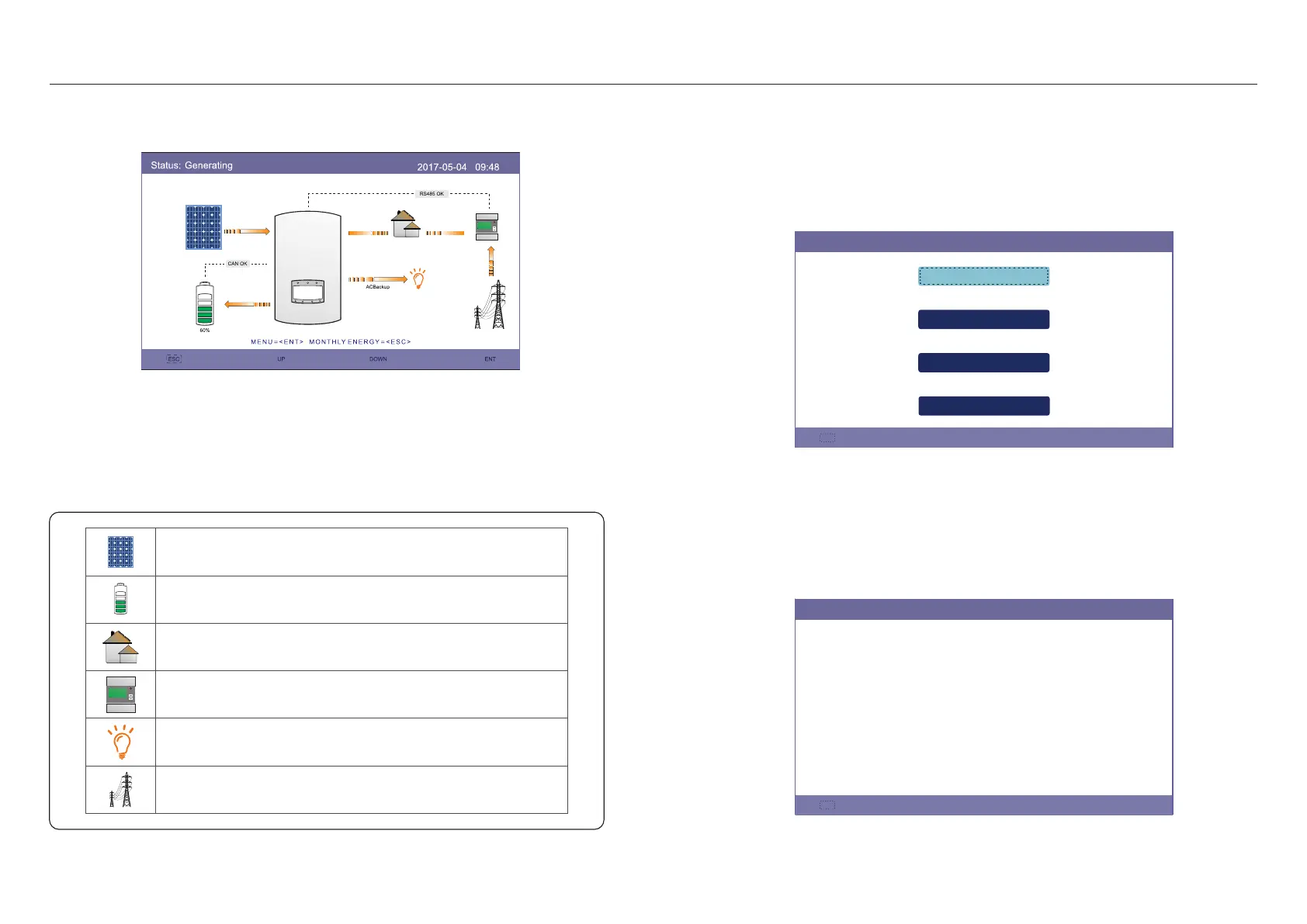

Figure 6.3 Main Page
6.2 Main Menu
There are four submenu in the Main Menu:
1. Information
2. Settings
3. Advanced Information
4. Advanced Settings
Figure 6.4 Main Menu
Settings
Menu
2015-02-23 19 35
Information
Settings
Advanced Information
Advanced Settings
KWH
2.5 26
Solar Power: When solar power is generated，an arrow
indicates the direction of the power flow and the value is shown
above the arrow.
Battery: When the battery is connected successfully, it will
display "CAN OK",meanwhile,battery SOC, arrow and value
of power flow is shown. Otherwise, it will display "CAN Fail".
Non-Critical Loads: Loads connected to the AC Grid port which
will shutdown if the grid is in malfunction.
KWH
2.526
Smart Meter: When the smart meter is connected successfully,
it will display "RS485 OK", otherwise "RS485 Fail".
Critical Loads: Loads connected to the AC Backup port which will
be supported by battery and solar even if the grid is in malfunction.
Grid: The arrow and value indicate the export/import power of
the hybrid system.
.45. .46.
0.00kW
0.00kW
0.00kW
0.00kW
On the main page,
Press "ESC" : View the yield data on a monthly bar charts. Then use "UP" and "DOWN"
to change the date and "ENT" to move the cursor.
Press "UP" or "DOWN": View different status on the top left of the main page.
Press "ENT": Enter the main menu.
6.3 Information
In the "Information" section, operating data and information can be viewed.
Three pages of information can be checked by press "UP" or "DOWN".
The example display is shown in the following Figure 6.5, 6.6 and 6.7.
Values are for reference only.
Figure 6.5 Information Page 1
Settings
Information
2015-02-23 19 35
1 / 4
Solar Power：
Solar Voltage1：
Solar Voltage2：
Grid Voltage：
Battery Voltage：
Backup Voltage：
Solar Current1：
Solar Current2：
Grid Power：
Grid Frequency：
00000W
000.0V
000.0V
000.0V
000.0V
000.0V
000.0A
000.0A
+00000W
00Hz
DRM NO.： 08
Charg Power：
+00000W
E S C
U P
D O W N E N T
E S C
U P
D O W N E N T
To Next Page
