5. Commissioning
.42..41.
Settings
Information
2015-02-23 19 35
3 / 4
BMS Information
Battery Voltage：
Battery Current：
Charge Limit：
Discharge Limit：
SOC Value：
00.00V
000.0A
000.0A
000.0A
000%
E S C
U P
D O W N E N T
SOH Value： 000%
BMS Status： Normal
Module Type：
No Battery
Step 5 Step 6
SettingsInformation
2015-02-23 19 35
4 / 4
Grid Meter
Meter Voltage：
Meter+ Current：
Meter Power：
Meter Energy：
Input Energy：
000.0V
00.00A
+000000W
0000.00kWh
E S C
U P
D O W N E N T
Output Energy：
0000.00kWh
0000.00kWh
PV Inverter Meter
Meter Voltage：
Meter+ Current：
Meter Power：
Meter Energy：
Input Energy：
000.0V
00.00A
+000000W
0000.00kWh
Output Energy：
0000.00kWh
0000.00kWh
5. Commissioning
8. Please check in the accessory package and confirm the meter type first.
If the default meter is Acrel ACR10R16DTE, please select the meter type as "1PH Meter".
If the default meter is Eastron SDM120CT, please select the meter type as "Eastron 1PH
Meter". If another meter is used, please refer to section 6.6.6.3.1 to select the meter type.
Please set the "meter placement" as "Grid". If other configuration is used, please refer to
section 6.6.6.3.2.

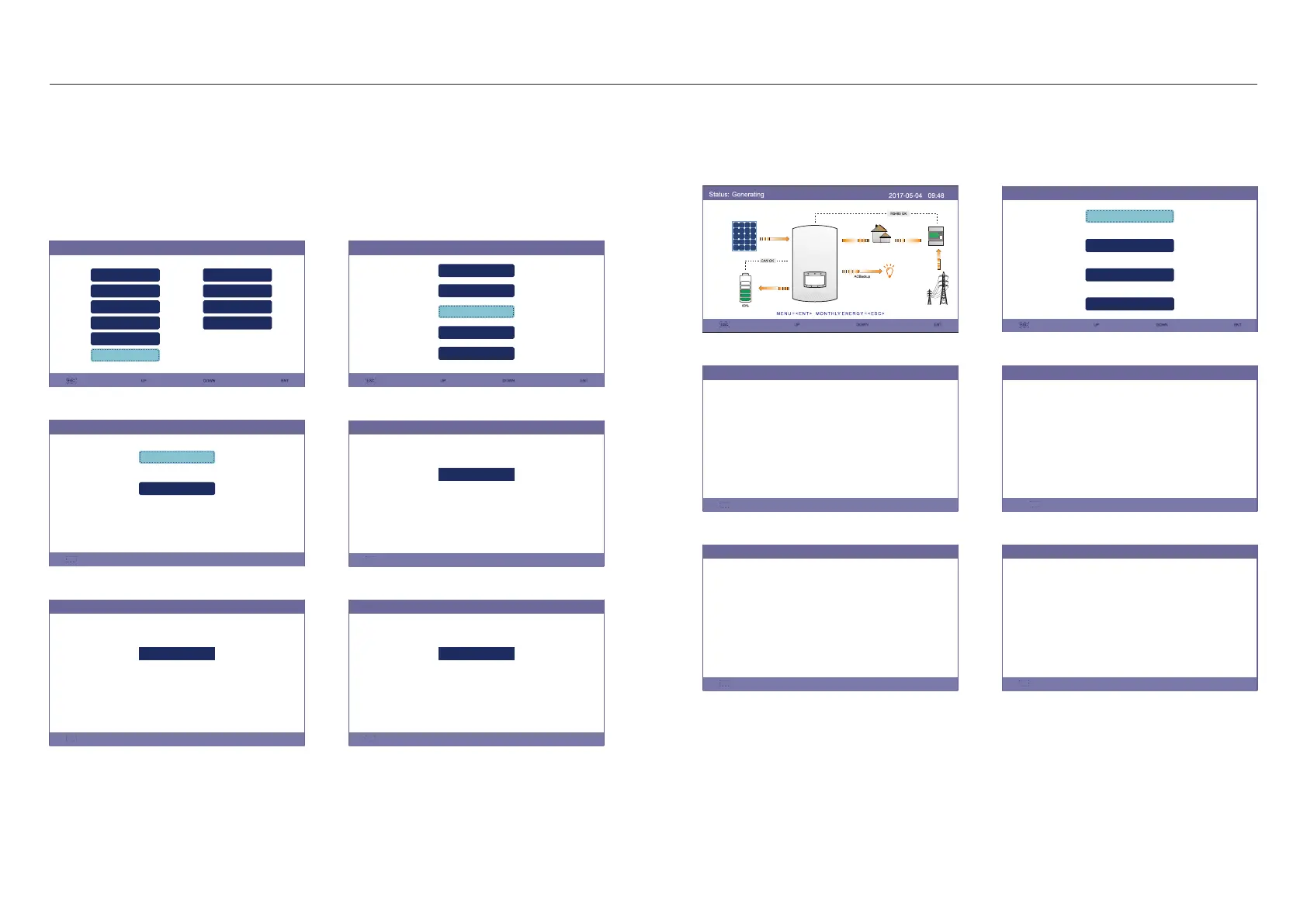

Advanced Settings
2015-02-23 19 35
Select Standard
Reset Password
Calibrate
HMIUpdate
Export Power Set
Storage Energy Set
Restart HMI
DSPUpdate
BaudRate RS485
ON/OFF
Step 1
SettingsStorage Energy Set
2015-02-23 19 35
Control Parameter
Battery Select
Storage Mode Select
Battery Wakeup
Meter Set
Step 2
SettingsMeter Set
2015-02-23 19 35
Meter Select
Meter Placement
Y E S = < E N T > N O = < E S C >
E S C
U P
D O W N E N T
SettingsMeter Select
2015-02-23 19 35
1Ph Meter
Meter Type:
Y E S = < E N T > N O = < E S C >
E S C
U P
D O W N E N T
Step 3 Step 4
SettingsMeter Select
2015-02-23 19 35
Eastron 1Ph Meter
Meter Type:
Y E S = < E N T > N O = < E S C >
E S C
U P
D O W N E N T
Step 5 Step 6
Settings
Meter Placement
2015-02-23 19 35
Grid
Install on:
Y E S = < E N T > N O = < E S C >
E S C
U P
D O W N E N T
11. Verify the readings in "Information" pages.
KWH
2.52 6
0.00kW
0.00kW
0.00kW
0.00kW
SettingsMenu
2015-02-23 19 35
Information
Settings
Advanced Information
Advanced Settings
Step 1 Step 2
Step 3 Step 4
SettingsInformation
2015-02-23 19 35
1 / 4
Solar Power：
Solar Voltage1：
Solar Voltage2：
Grid Voltage：
Battery Voltage：
Backup Voltage：
Solar Current1：
Solar Current2：
Grid Power：
Grid Frequency：
00000W
000.0V
000.0V
000.0V
000.0V
000.0V
000.0A
000.0A
+00000W
00Hz
DRM NO.： 08
Charg Power：
+00000W
E S C
U P
D O W N E N T
Information
2015-02-23 19 35
2 / 4
Total Energy：
This Year：
Last Year：
This Month：
Last Month：
Today：
Yesterday：
0000000kWh
0000000kWh
0000000kWh
0000kWh
0000kWh
0000.0kWh
00000.0kWh
E S C
U P
D O W N E N T
Inverter SN：
FFFFFFFFFFFFFFF
Device Status：
Grid Status：
Generating
OffGridMode
Battery Status：
Normal
Backup Status：
Normal
9. Switch on the inverter DC switch.
10. Switch on battery breaker.
