The steps to assemble the AC grid terminal connectors are listed as follows:
1. Disassemble the AC connector. Strip the AC wires about 7mm.

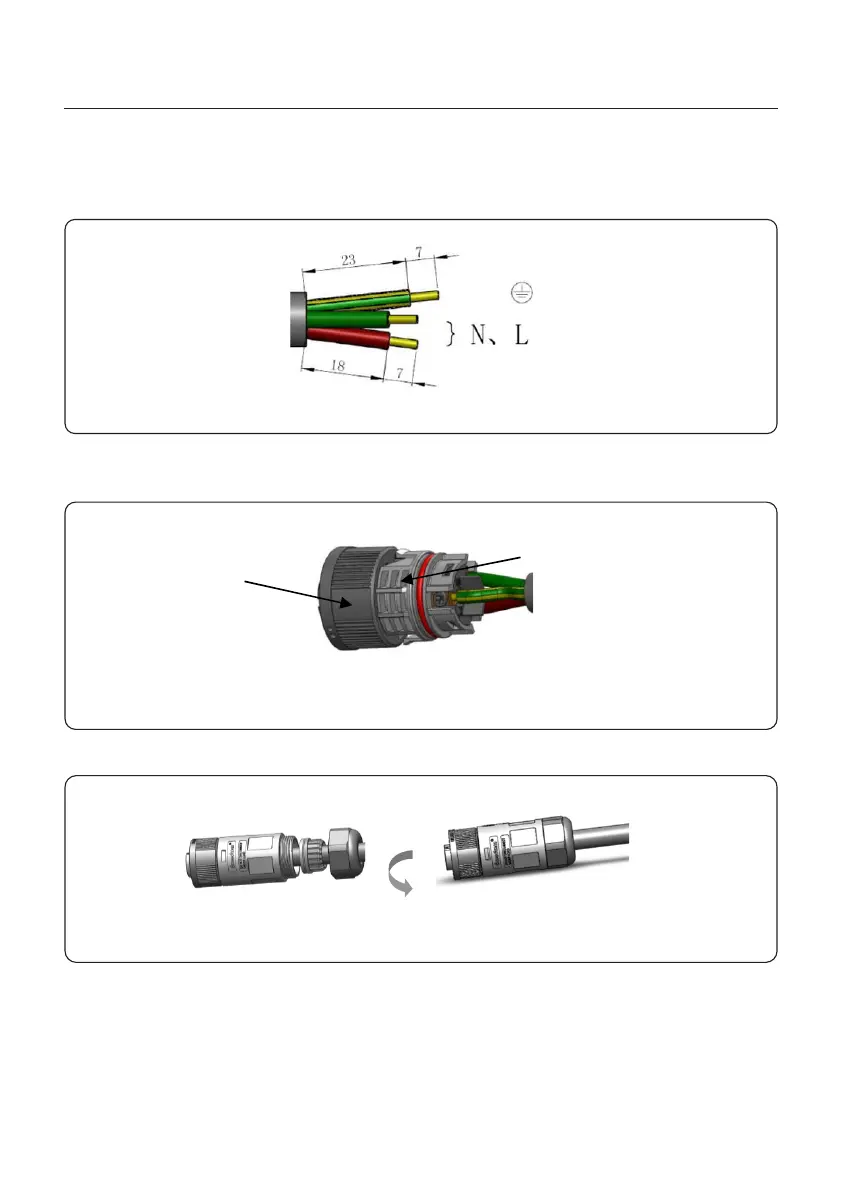

Figure 4.15 Stripped AC Wires
Figure 4.16 Connect Wires to the Terminal
Figure 4.17 Tighten up the Cap on the Terminal
2. Fix the wires into the correct postion. Torque 0.8N.m
Please try to pull out the wire to make sure the it’s well connected.
3. Insert Seal and Clamp Finger into body ,then tighten the nut, torque 2.5+/-0.5N·m.
Locker
Housing
4. Installation
User Manual
19
