4.3.8 CT connections(optional)
The inverter can work with a smart sensor to achieve Export Power Management function.

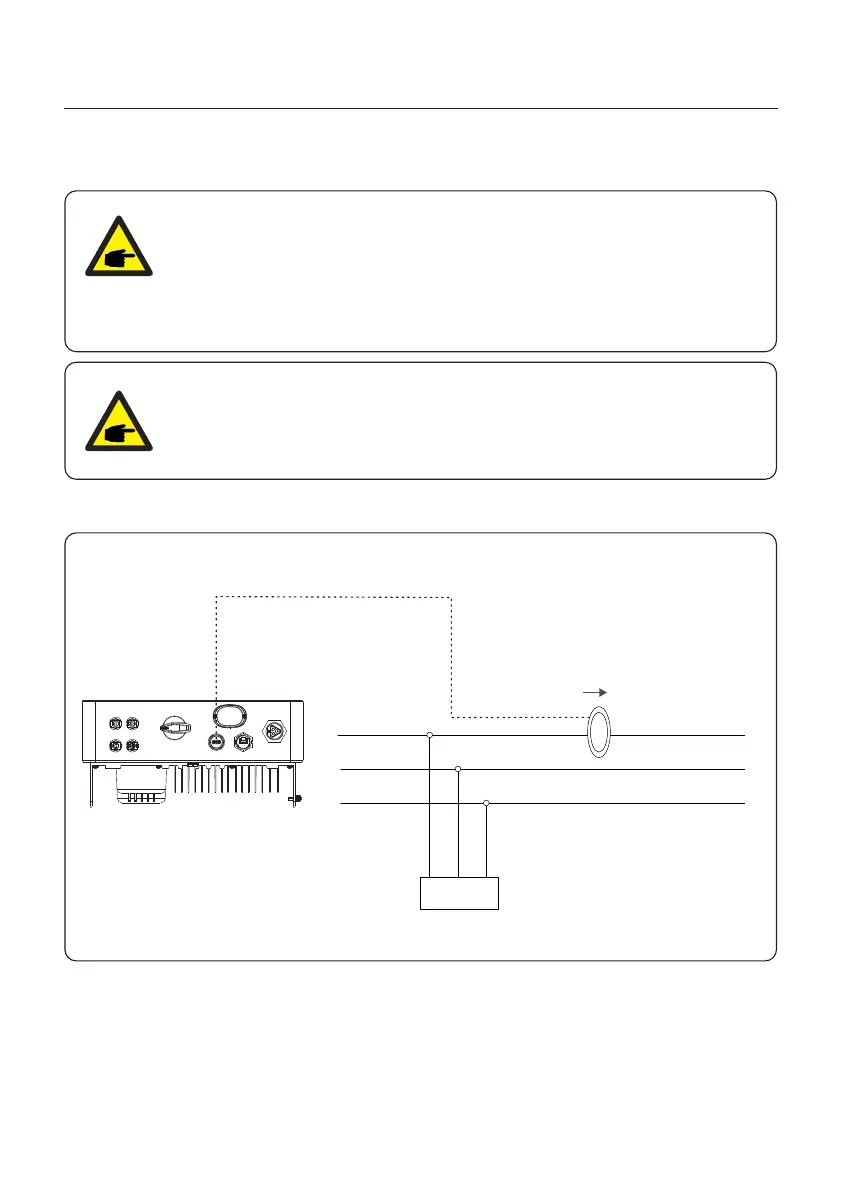

Below is the connection diagram of the smart sensor.
Pre-made Cable in CT Package
2-Pin Connector
Grid L
Grid N
Grid PE
INV L
INV N
INV PE
L N PE
Load
CT Arrow
Grid
Figure 4.26 Smart Sensor
Inverters are classified as "Meter Model" and "CT Model" due to hardware
difference.
Meter Model can only connect a smart meter.
CT Model can only connect a smart sensor.
Please consult Solis Sales Rep before placing the order.
NOTE:
To achieve Export Power Management function, the smart sensor
must be installed on the grid side.
NOTE:
4. Installation
User Manual
25
