2.5~6.0
6.0
Cable type
Cross section（mm²）
Range
Industry generic P V cable
Recommended value
Table 4.2 Grid cable size

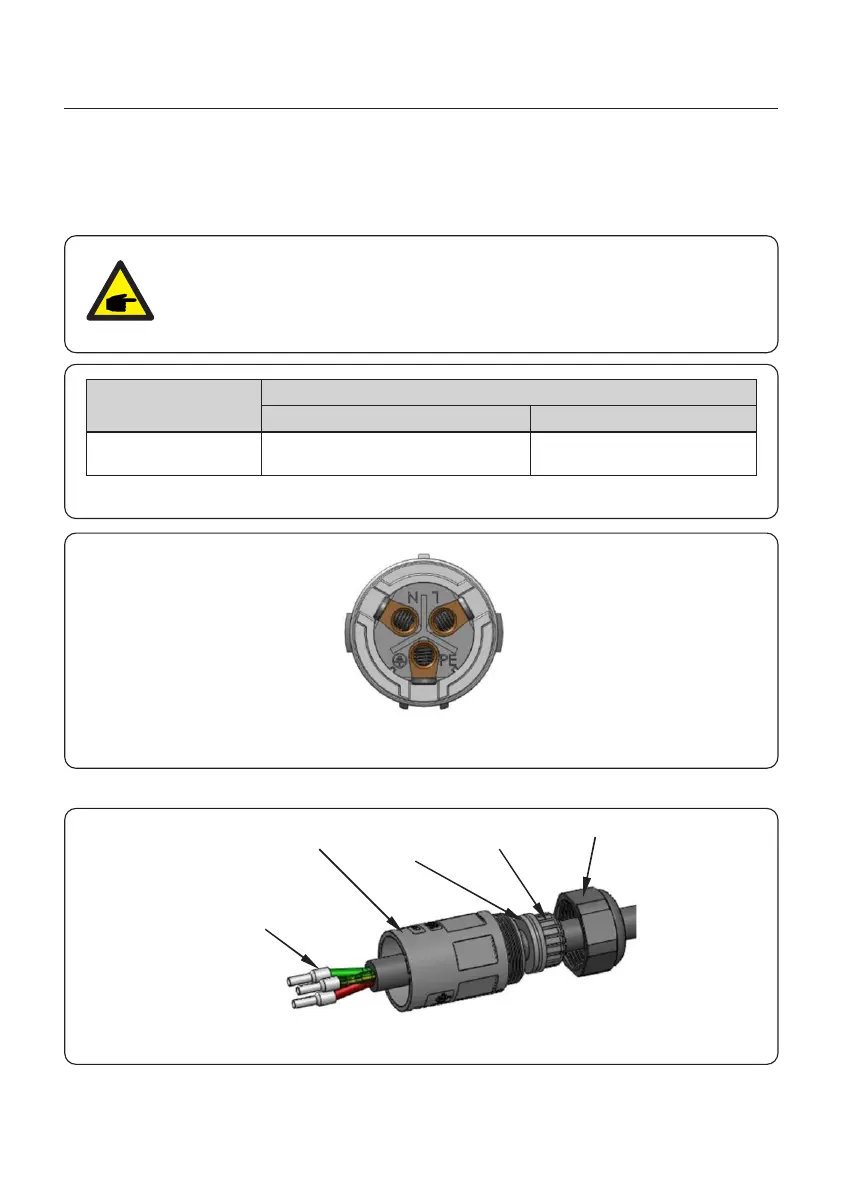

Figure 4.13 AC Grid Terminal Connector Inside
Each Solis S6 Single Phase Inverter is supplied with an AC grid terminal connector.
Figure 4.14 AC Grid Terminal Connector
4.3.2 Connect grid side of inverter
For all AC connections, 2.5- 6mm cable is required to be used. Please make sure the
2
resistance of cable is lower than 1 ohm. If the wire is longer than 20m, it's recommended
to use 6mm cable.
2
There are"L","N","PE"symbols marked inside the connector, the Line
wire of grid must be connected toLterminal, the Neutral wire of grid must
be connected to "N" terminal and Earth wire must be connected to "PE".
Code end terminal
Body
Seal body
Claw
Nut
4. Installation
User Manual
18
