2-Pin Connector
Pre-made Cable in Meter Package
L N PE
Load
L L' N N'
5 6 7 8
A B
Grid L
Grid N
Grid PE
INV L
INV N
INV PE

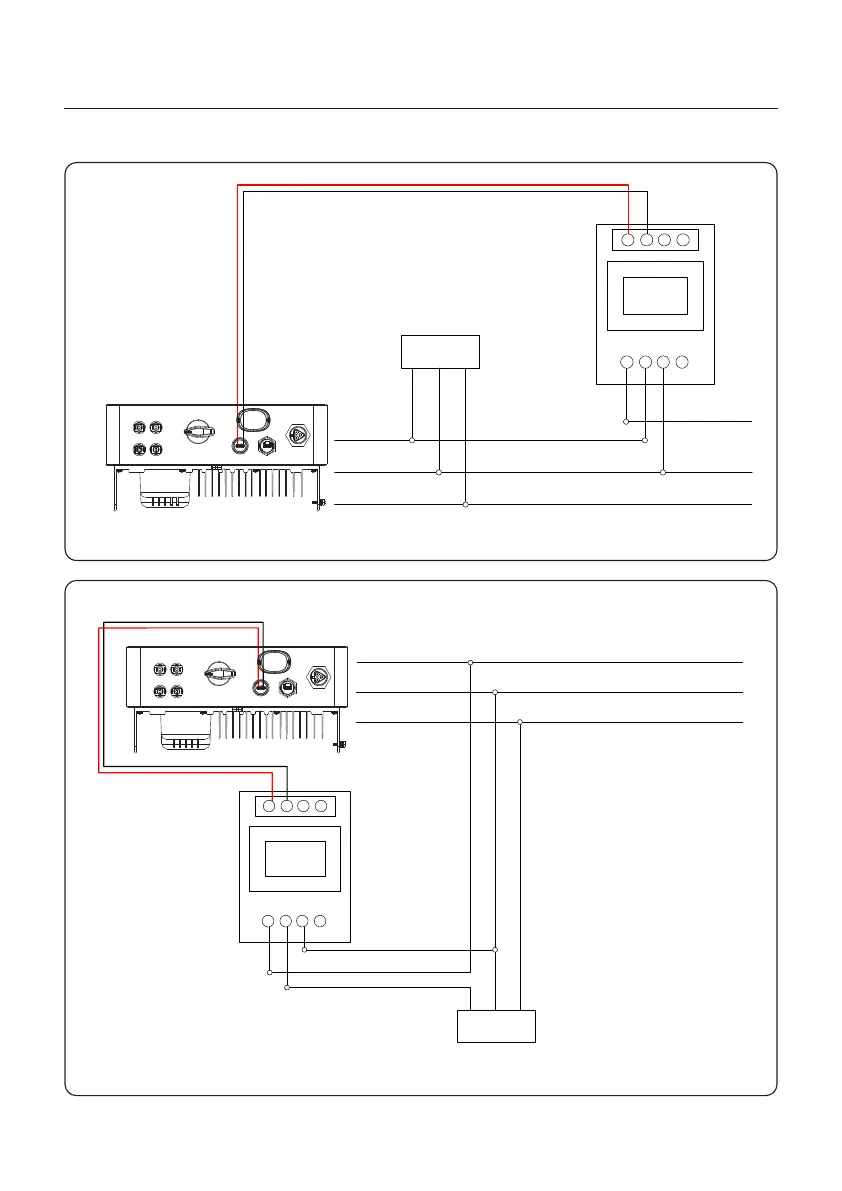

Figure 4.22 Direct Insert Type Meter - “Meter in Grid”
INV L
INV N
INV PE
Grid L
Grid N
Grid PE
L N PE
Load
L L' N N'
5
6 7 8
A B
Pre-made Cable
in Meter Package
2-Pin Connector
Figure 4.23 Direct Insert Type Meter - “Meter in Load”
