4. Installation
13
Negative terminal
Positive terminal

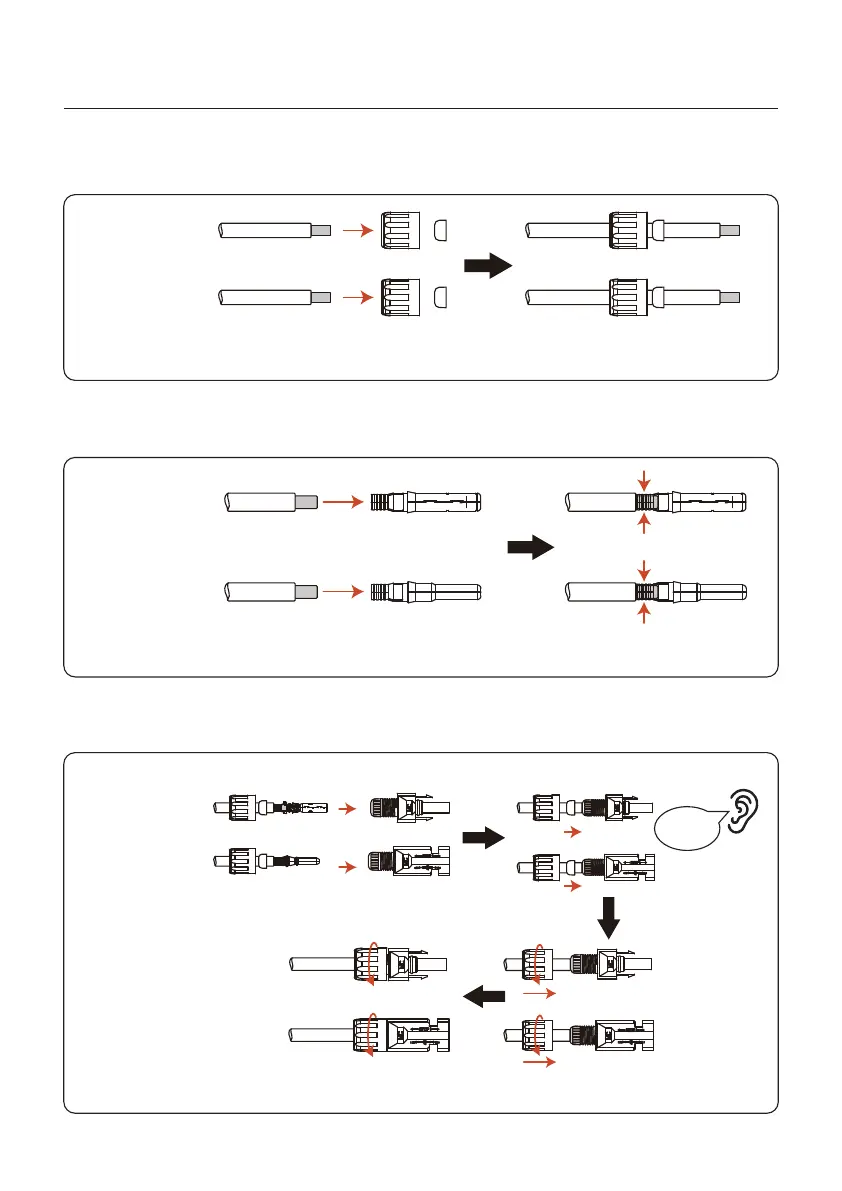

3. Pass the stripped DC cable through the nut and waterproof rubber ring.
4. Connect the wire part of the DC cable to the metal DC terminal and crimp it with a special
DC terminal crimping tool.
Negative terminal
Positive terminal
Squeeze
5. Insert the crimped DC cable into the DC terminal firmly, then insert the waterproof rubber
ring into the DC terminal and tighten the nut.
Tighten
After you hear a "click", pull gently to check for a firm engagement.
Click
Negative terminal
Positive terminal
Figure 4.8
Figure 4.9
Figure 4.10

SOLIS S6 Series Specifications

General

Number of MPPTs	2
THDi	<3%
DC Switch	Yes
Max. AC Output Power	6000W
Rated AC Output Power	6000W
Max. AC Apparent Power	6000VA
Rated Grid Voltage	230V
Grid Voltage Range	180V-280V
Rated Grid Frequency	50Hz/60Hz
Grid Frequency Range	45-55Hz / 55-65Hz
Protection	DC Reverse-Polarity Protection, AC Short-Circuit Protection
Operating Temperature Range	-25°C to 60°C
Cooling	Natural Cooling
Communication	WiFi/GPRS
