SOLIS S6 Series Manual

4.8 Meter Installation
CAUTION:
Make sure the AC cable is totally isolated from AC power before
connecting the Smart Meter and CT.
The Solis S6-EH3P(3-10)K-H-EU Series inverter is able to connected standard
Eastron meters to fulfill the control logic of the self-consumption mode, export power
control, monitoring, etc.
Eastron 3ph meter (With CT): SDM630MCT (Provided by default)
Eastron 3ph meter (Direct Insert): SDM630 (Optional, Customer prepare if needed)

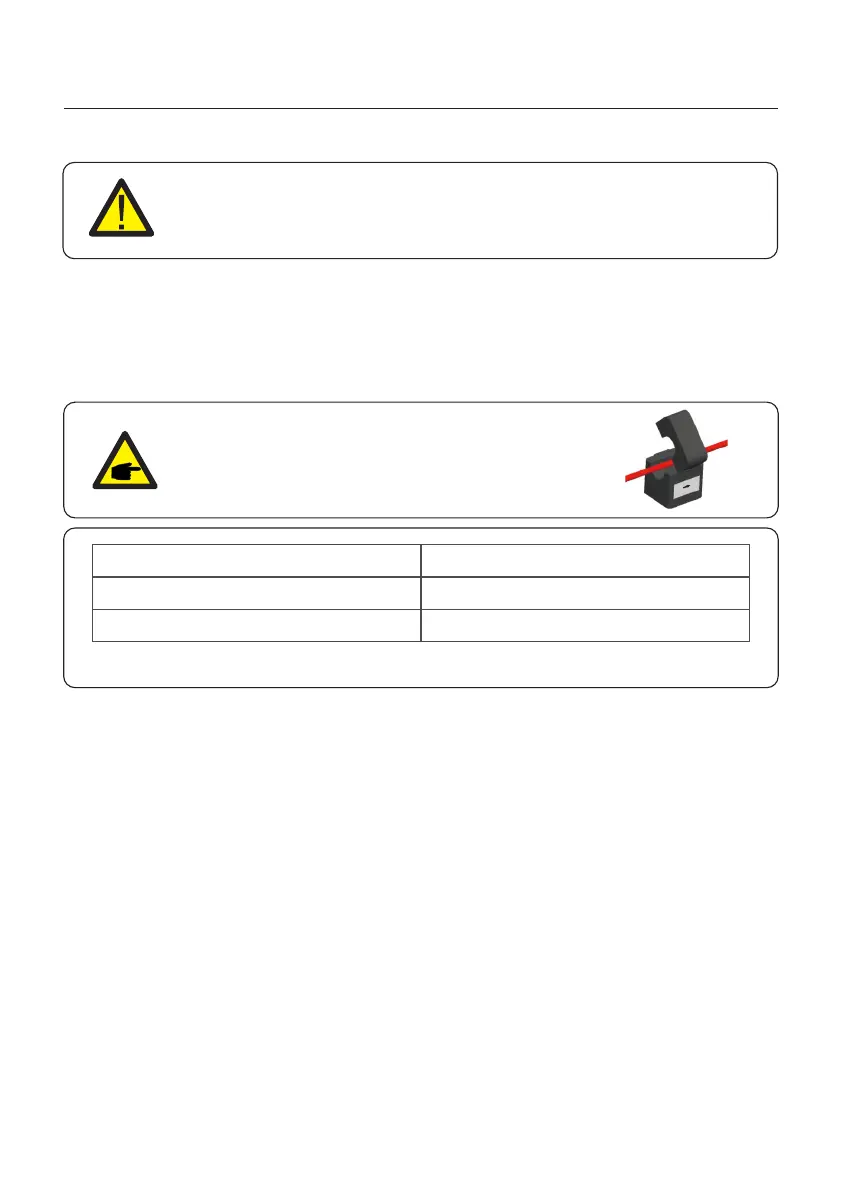

NOTE:
Please note that the CT orientation must be correct,
otherwise the system will not work properly.
Gr
id sid
e
K
L
Compatible Smart Meter Model
Pin 13 – RS485B, Pin 14 – RS485A
B – RS485B, A – RS485A
SDM630MCT
SDM630
Meter RS485 Pin Definition
Table 4.6
User Manual
4. Installation
26

SOLIS S6 Series Specifications

General

Number of MPPTs	2
THDi	<3%
DC Switch	Yes
Max. AC Output Power	6000W
Rated AC Output Power	6000W
Max. AC Apparent Power	6000VA
Rated Grid Voltage	230V
Grid Voltage Range	180V-280V
Rated Grid Frequency	50Hz/60Hz
Grid Frequency Range	45-55Hz / 55-65Hz
Protection	DC Reverse-Polarity Protection, AC Short-Circuit Protection
Operating Temperature Range	-25°C to 60°C
Cooling	Natural Cooling
Communication	WiFi/GPRS
