4. Installation
16
There are two AC terminals on the inverter and the assembly steps are similar.
AC Grid Port is to connect to the grid and AC Backup Port is to connect to the critical load
circuit.

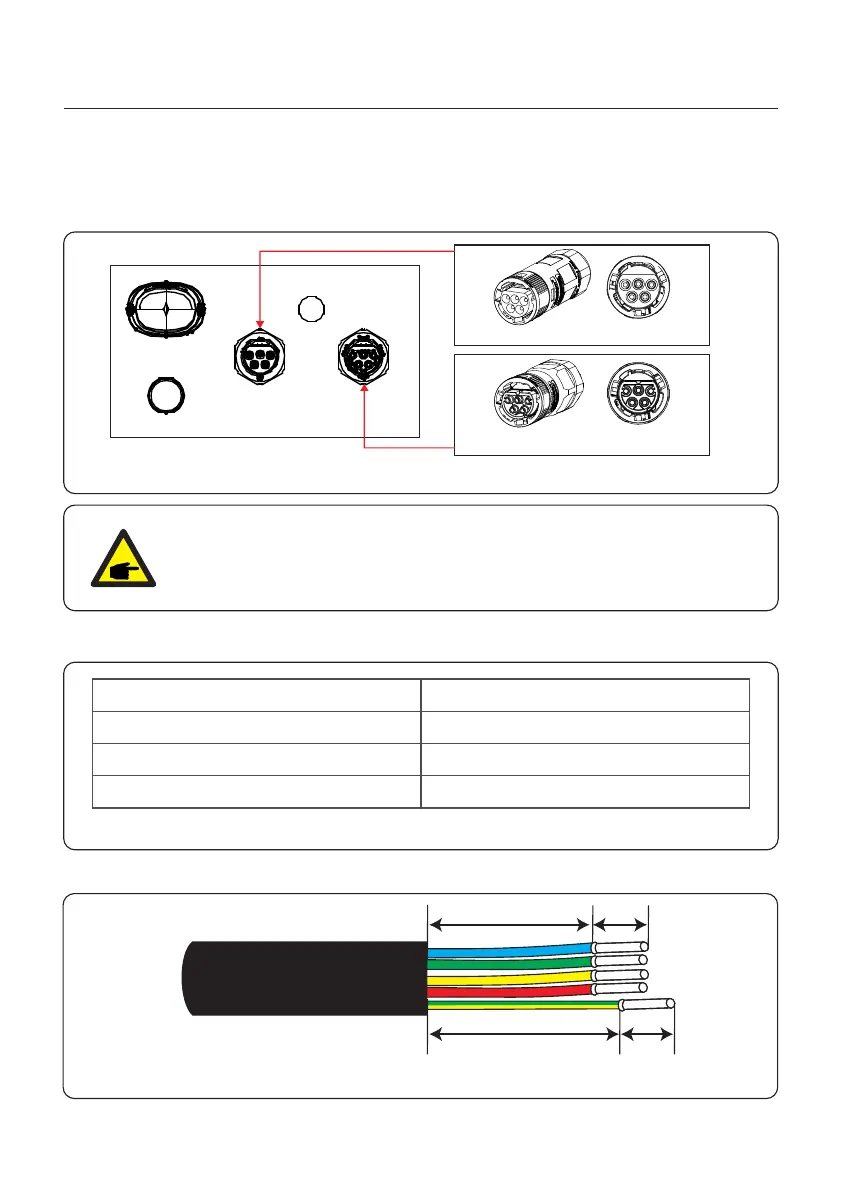

4.6 AC Cable Installation
AC-BACKUP terminal
AC-GRID terminal
AC-GRIDAC-BACKUP
ANTENNA
COM
Figure 4.16
NOTE:
AC Backup Connector is longer while the AC Grid Connector is shorter.
4.6.1 AC Grid Port Connection
Describe
Cable diameter
14~17mm
6mm²
7mm
Traverse cross sectional area
Exposure Length
Numerical value
Table 4.1
1. Strip the AC wires about 7mm.
Figure 4.17
18mm
23mm 7mm
7mm

SOLIS S6 Series Specifications

General

Number of MPPTs	2
THDi	<3%
DC Switch	Yes
Max. AC Output Power	6000W
Rated AC Output Power	6000W
Max. AC Apparent Power	6000VA
Rated Grid Voltage	230V
Grid Voltage Range	180V-280V
Rated Grid Frequency	50Hz/60Hz
Grid Frequency Range	45-55Hz / 55-65Hz
Protection	DC Reverse-Polarity Protection, AC Short-Circuit Protection
Operating Temperature Range	-25°C to 60°C
Cooling	Natural Cooling
Communication	WiFi/GPRS
