3.2 DEFROST MODE

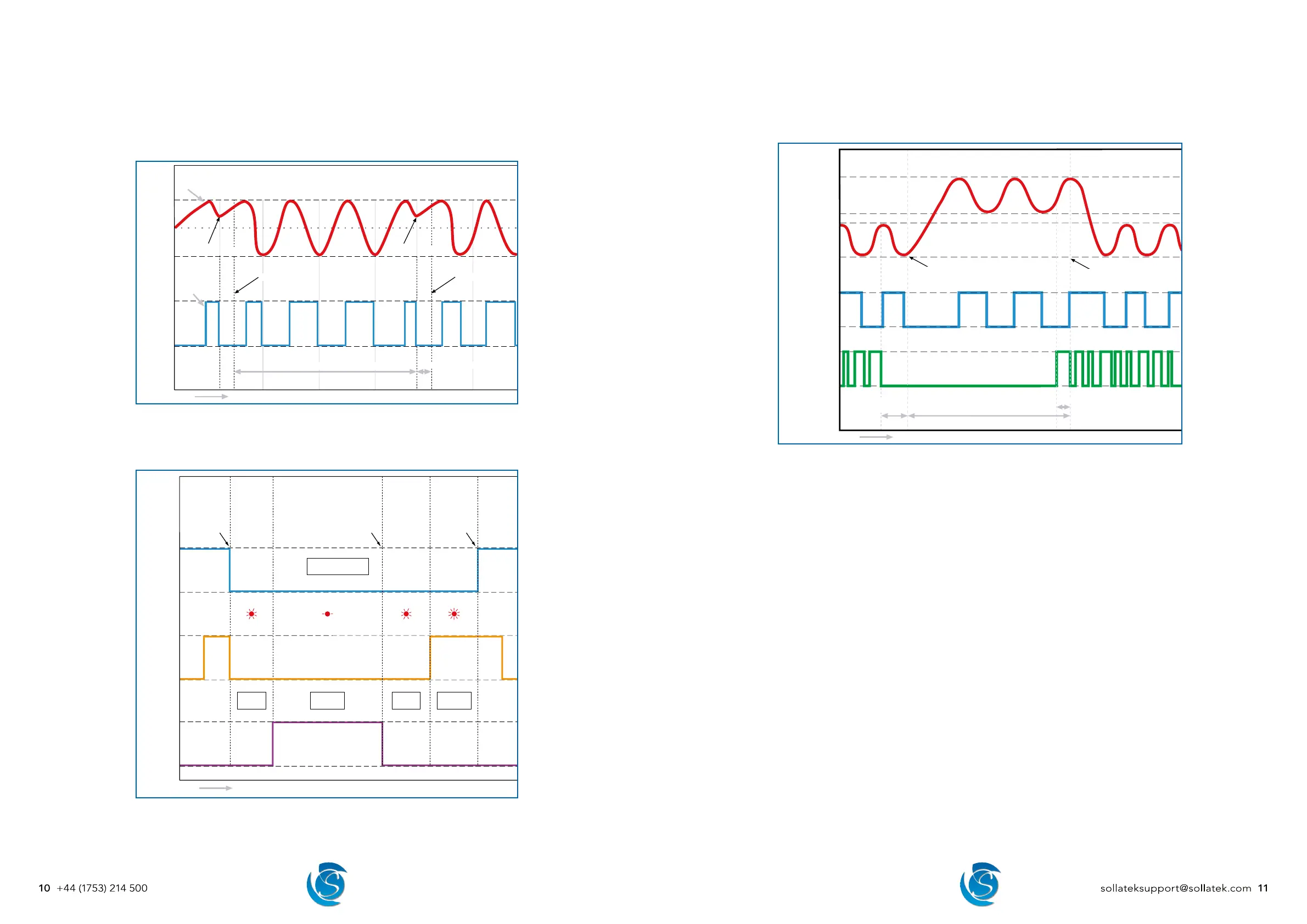

3.2.1 STANDARD DEFROST
Depending on the requirement, defrost can be triggered by either using the temperature or/and by time, when both settings are
enabled, whichever event happens first will trigger or end the defrost cycle.
The FDEx2 has a minimum defrost duration and minimum duration between defrost cycles which must be satisfied before it will
act no matter the status of the other parameters. This is to ensure the defrost cycle is not stopped too early or defrost cycles are
not initiated too close together.
Cut in
Average
Cut out
On
Temperature
probe reading
Time
Defrost period
Compressor
Defrost is activated
Defrost is terminated
O
Defrost period
Defrost is activated
Defrost is terminated
On
>Minimum Duration between Defrost Cycles
>Minimum Defrost Duration
3.2.2 ADVANCED DEFROST MODES
The FDEx2 has optional advanced pre- and post-defrost settings that provide extra protection to the controller and compressor
as well as maximising defrost efficiency.
On
Time
Pre Defrost
Mode
Compressor
Defrost is activated
by temperature or
time
O
On
O
Aux 1
(Evapourator
Fan)
Defrost Mode Drip Down
Mode
Post Drip Down
Recovery Mode
Aux 2
(Heater)
On
O
Defrost ended by
temperature or
time
Aux 1 & 2
congurable
Aux 1 & 2
OFF
Aux 1 & 2
OFF
Aux 1 & 2
congurable
Compressor OFF during
ALL defrost modes
Post Drip Down
Recovery ended
by temperature
or time
3.3 ENERGY SAVING MODE
The FDEx2 has an Energy Saving mode that provides reduced compressor operation when the outlet is closed and no
customer demand by setting the cut-in and cut-out temperatures higher than in normal mode. When the FDEx2 does not
sense a door opening for the pre-set duration, then the FDEx2 will enter Energy Saving Mode and run using the energy-saving
cut-in and cut-out temperature. When the door is opened or the maximum energy-saving timer has elapsed, the FDEx2 will
resume normal operation.
CUT IN
CUT OUT
Eco Mode
Temperature
Time
Engery Saving Max Duration
OPEN
CLOSE
Door Switch
Energy Saving Mode
Door Close Duration
to Start Energy Saving
Door Open Duration to Exit Engery Saving
Energy Saving is activated
Energy Saving is terminated
CUT IN
CUT OUT
ON
OFF
Compressor
Normal Mode
Temperature
