4 Memory of measurement results
The meter has the memory for 10 000 individual measurement results. The whole memory is di-
vided into 10 banks with 99 cells each. Due to dynamic memory allocation, each cell can contain a
different number of individual results, depending on the needs. This ensures optimum memory use.
Each result can be saved in a cell of a specified number and in a chosen bank, thus allowing the user
to assign the cell numbers to measurement points, and the bank numbers to tested facilities, make
the measurement in any sequence and repeat the measurements without losing other data.
The memory of measurement results is not cleared when the meter is switched off. The data can be
read later or transmitted to a computer. The number of the current cell and bank is not changed, either.
One cell can contain the results of measurements made for all measurement func-
tions.
After each entry of measurement result to a cell, the cell number is automatically in-
creased. To enter the successive results relating to a given measurement point (fa-
cility) to one cell, set the correct cell number before each entry.
Only the results of measurements activated with the START button can be entered
to the memory (with exception of auto-zeroing in the low-voltage resistance meas-
urement).
It is recommended to clear the memory after reading the data or before a new se-
ries of measurements, results of which can be saved in the same cells as previous
ones.
4.1 Entering the measurement results to the memory

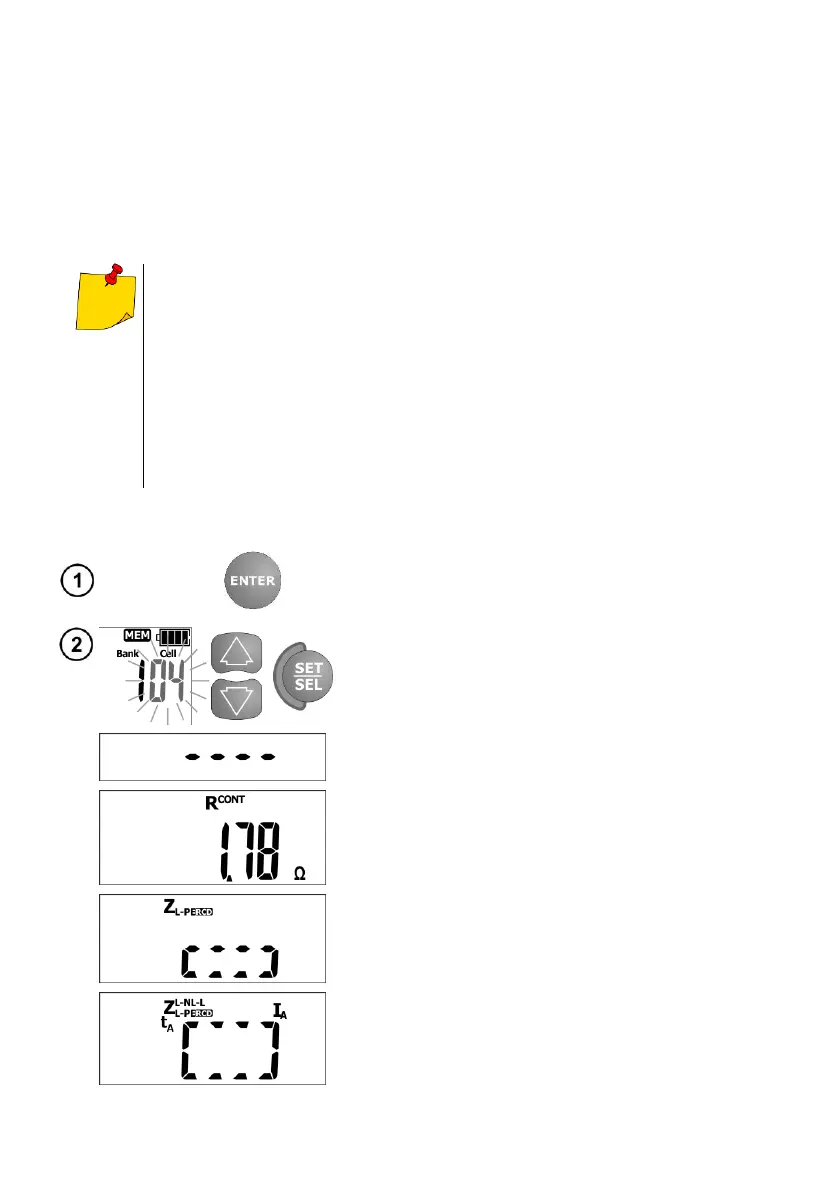

After the measurement, press ENTER.
The meter is in the memory enter mode. Select
the bank and cell number acc. To section 4.2 or
leave the current ones.
Cell includes the same type of result that is to be
entered.
Cell is occupied by the displayed type of meas-
urement results.
Cell is occupied by the displayed types of meas-
urement results.
