MPI-506 – USER MANUAL
32

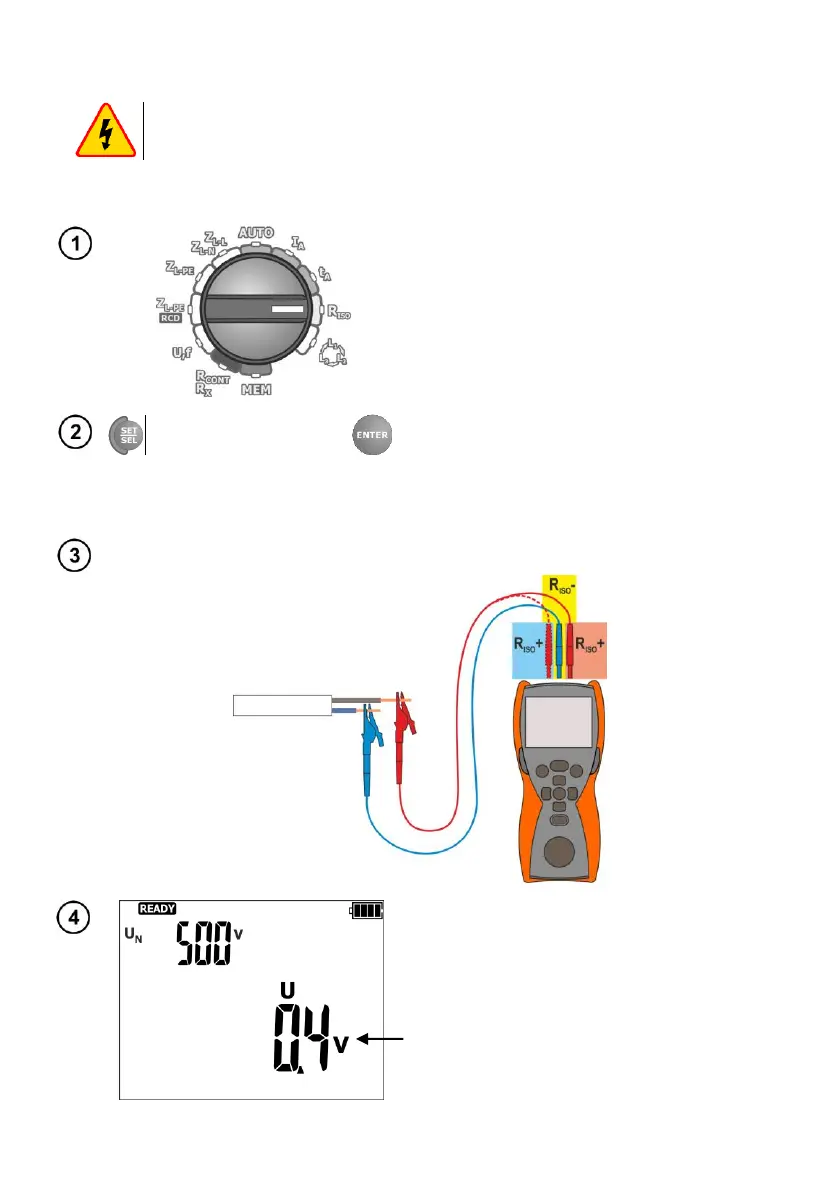

3.6 Insulation resistance
WARNING
The object tested must not be live.
3.6.1 Measurement of individual objects
 Turn on the meter.
 Turn the rotary switch to R
ISO
position.
U
n
◄►
Measurement
time
▲
▼
▪ 100 V
▪ 250 V
▪ 500 V
0’03”
…
3’00”
Set the measurement voltage according to the fol-
lowing algorithm, and according to the rules de-
scribed in general parameters setting.
Connect test leads according to the drawing. The R
ISO+
lead can be connected to the blue or
red socket.
The meter is ready for measurement.
Voltage present on tested object.
