MPI-506 – USER MANUAL
60
11 Accessories
The current list of accessories can be found on the manufacturer's website.
11.1 Standard accessories
The standard kit delivered by the manufacturer includes:
 MPI-506 meter – WMGBMPI506
 Test leads kit:
 WS-03 adapter with START button with UNI-SCHUKO plug – WAADAWS03
 1.2 m leads (CAT III 1000 V) with banana plugs – 3 pcs (yellow – WAPRZ1X2YEBB, red – W
PRZ1X2REBB, blue – WAPRZ1X2BUBB)
 accessories
 crocodile clip (CAT III 1000 V) – 2 pcs (yellow K02 – WAKROYE20K02, red K02 –
WAKRORE20K02)
 pin probe with banana socket (CAT III 1000 V) – 3 pcs (yellow – WASONYEOGB1, red –
WASONREOGB1, blue – WASONBUOGB1)
 case for meter and accessories – WAFUTM6
 meter harness – WAPOZSZE4
 rigid hanger with hook – WAPOZUCH1
 user manual,
 calibration certificate
 4 LR6 batteries
11.2 Optional accessories
In addition, the following items not included in the standard kit can be purchased from the manu-
facturer or the distributors:
 General measure-
ments

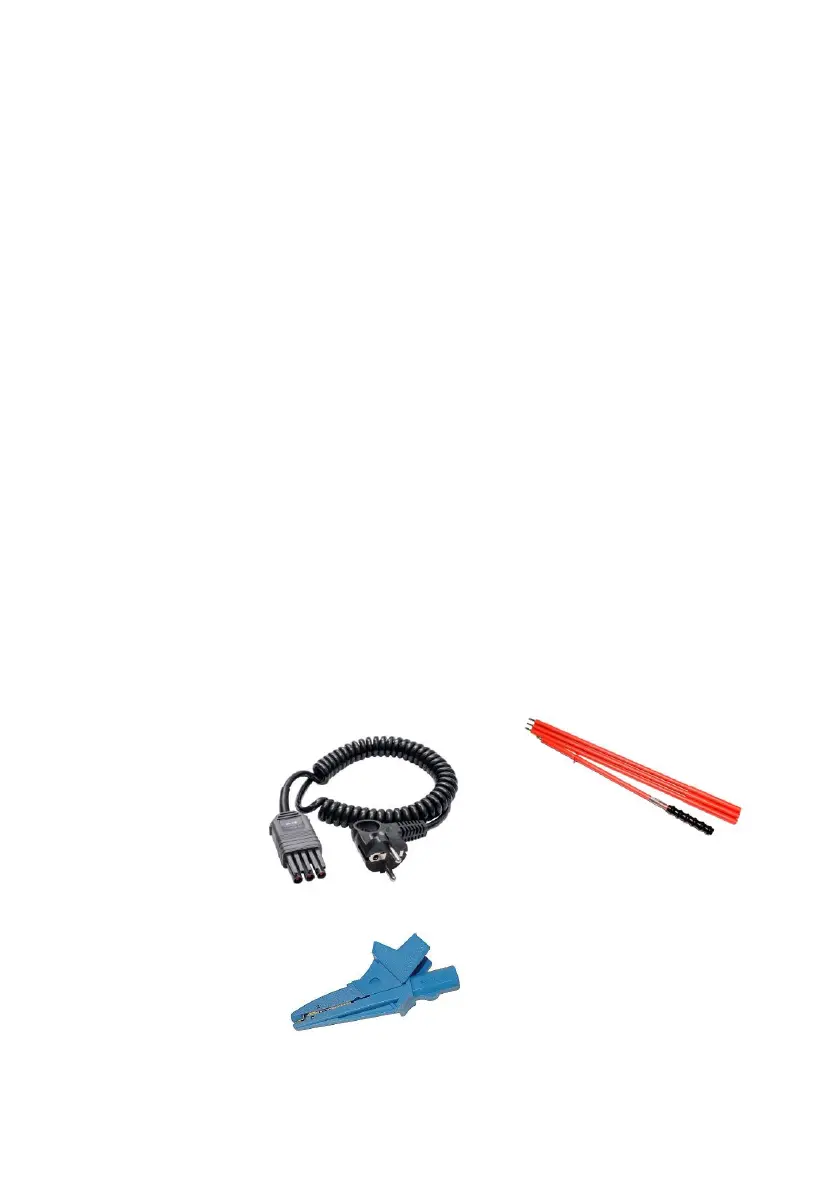

WS-04 adapter with UNI-
SCHUKO angular plug (without
triggering)
WAADAWS04
Foldable pin probe, 1 kV, 2 m
(banana socket)
WASONSP2M
Crocodile clip blue 1 kV 20 A
WAKROBU20K02
