A6T/A6/A5 Portable Ultrasonic Diagnostic System
4701-0040-01A
3-89

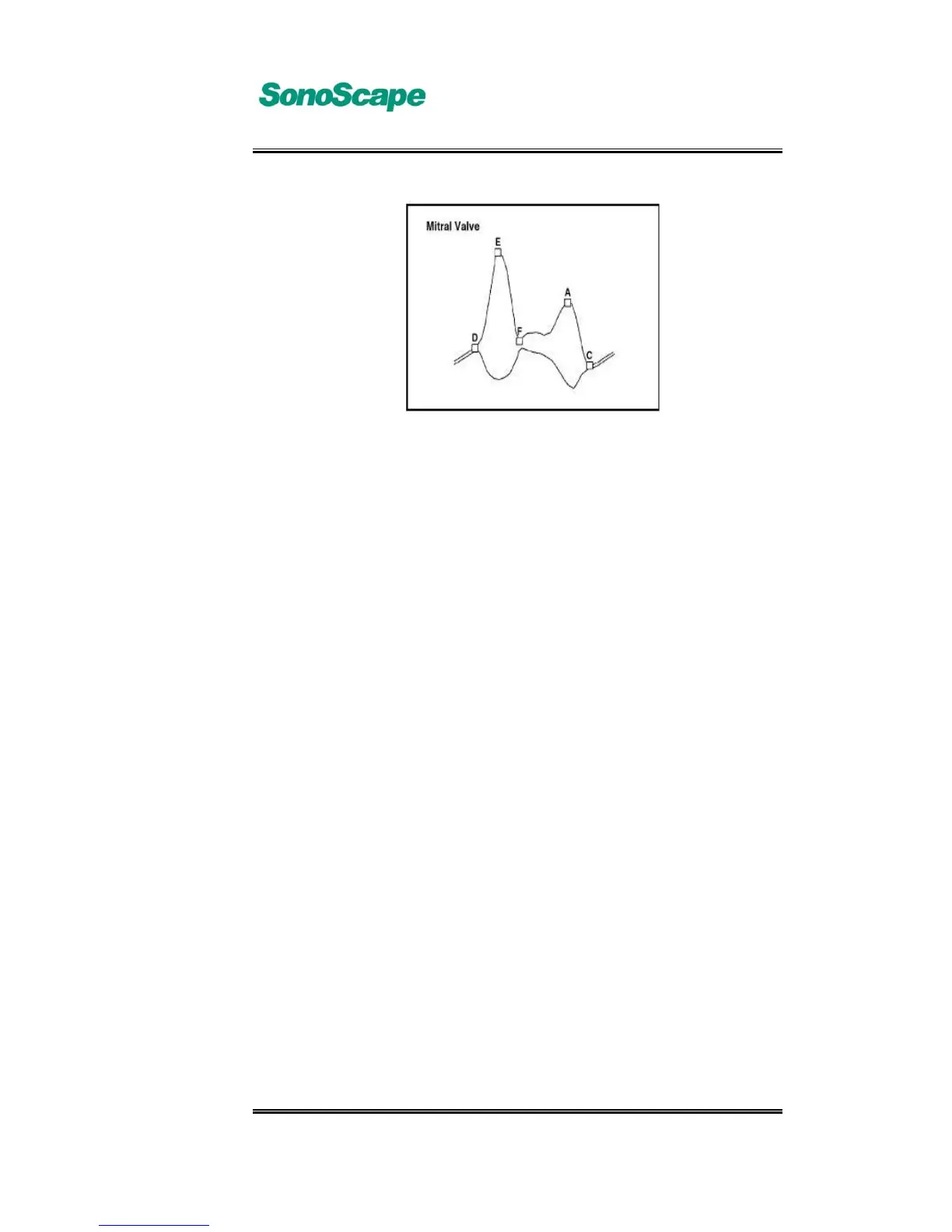

Fig. 3.6.3.6 MV measurement roadmap
Measurement method:
1. In M or B/M mode frozen state, press the【Calc】key to pop up the
Meas & Calc menu in M mode, move the trackball, use the cursor to
select “MV measurement “ , press the 【SET】key to confirm going to
MV measurement mode.
2. Measure CE, see “3.6.3.1 Distance Measurement” for the specific
measurement.
3. Measure DE, see “3.6.3.1 Distance Measurement” for the specific
measurement.
4. Measure CA, see “3.6.3.1 Distance Measurement” for the specific
measurement.
5. Measure DE, see “3.6.3.1 Distance Measurement” for the specific
measurement.
6. Measure EF, see “3.6.3.1 Distance Measurement” for the specific
measurement.
7. Calculate A/E, and the measurement and calculation result is
displayed in the result window.
8. Repeat steps 1 to 7 to perform the next measurement.
