A6T/A6/A5 Portable Ultrasonic Diagnostic System
4701-0040-01A
3-14
3.4.3.5 Comment Setting
In System Setting page, click [Comment Setting] to go to Comment Setting
page. Click [Exit] to exit Comment Setting. Comment Setting page is shown
below:

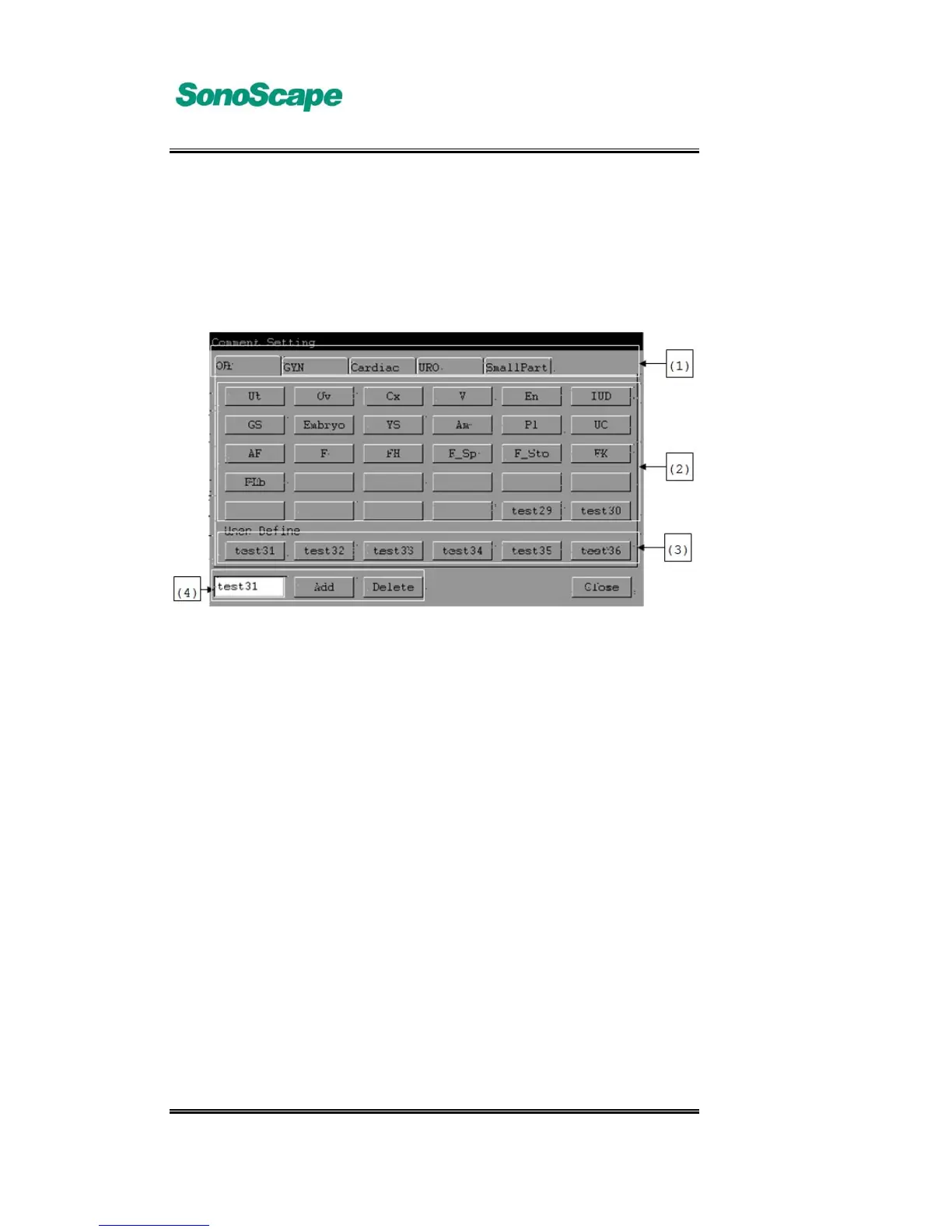

Fig. 3.4.3.5 Comment Setting page
The Comment Setting page can be divided into the following areas:
(1) Application select area;
(2) System predefined comment area;
(3) User Define comment area, each application have 6 additional
user-defined annotations;
(4) User defines comment operation area.
In Comment Setting, different measurement parts are displayed in screens,
but the operation methods are consistent.
