3.4.2 User Interface
The main user interface is shown below:
The functions of the main sections on the interface are shown below:
1． Logo of manufacturer
2． Image parameter area
3． Measurement result area
4． Image/measurement menu area
5． System information area
6． Imaging area
7． User prompt
8． Grayscale bar/TGC curve

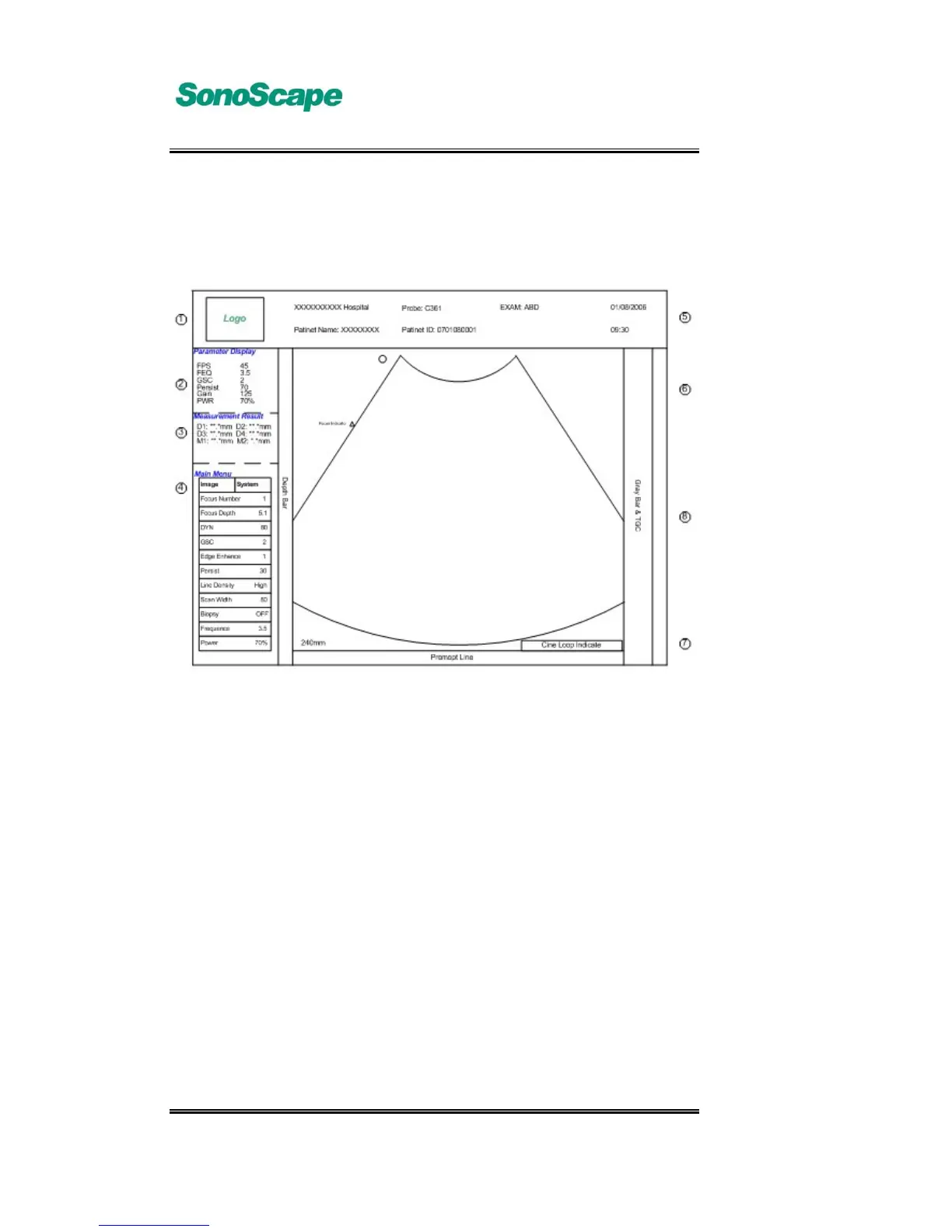

Fig. 3.4.2a Main User Interface
