Sonoscape A6T

A6T/A6/A5 Portable Ultrasonic Diagnostic System
4701-0040-01A
3-23
The setting items of LCD Setting are described below:

Brightness Press the【Trackball】+【SET】key to select
brightness slider position.

Default To export the factory default LCD Setting.
3.4.5 BodyMark
Press the【BodyMark】key to active the BodyMark page.
Select the desired bodymark and exit BodyMark page;
Click Exit, or press the【BodyMark】 key again to exit BodyMark screen.

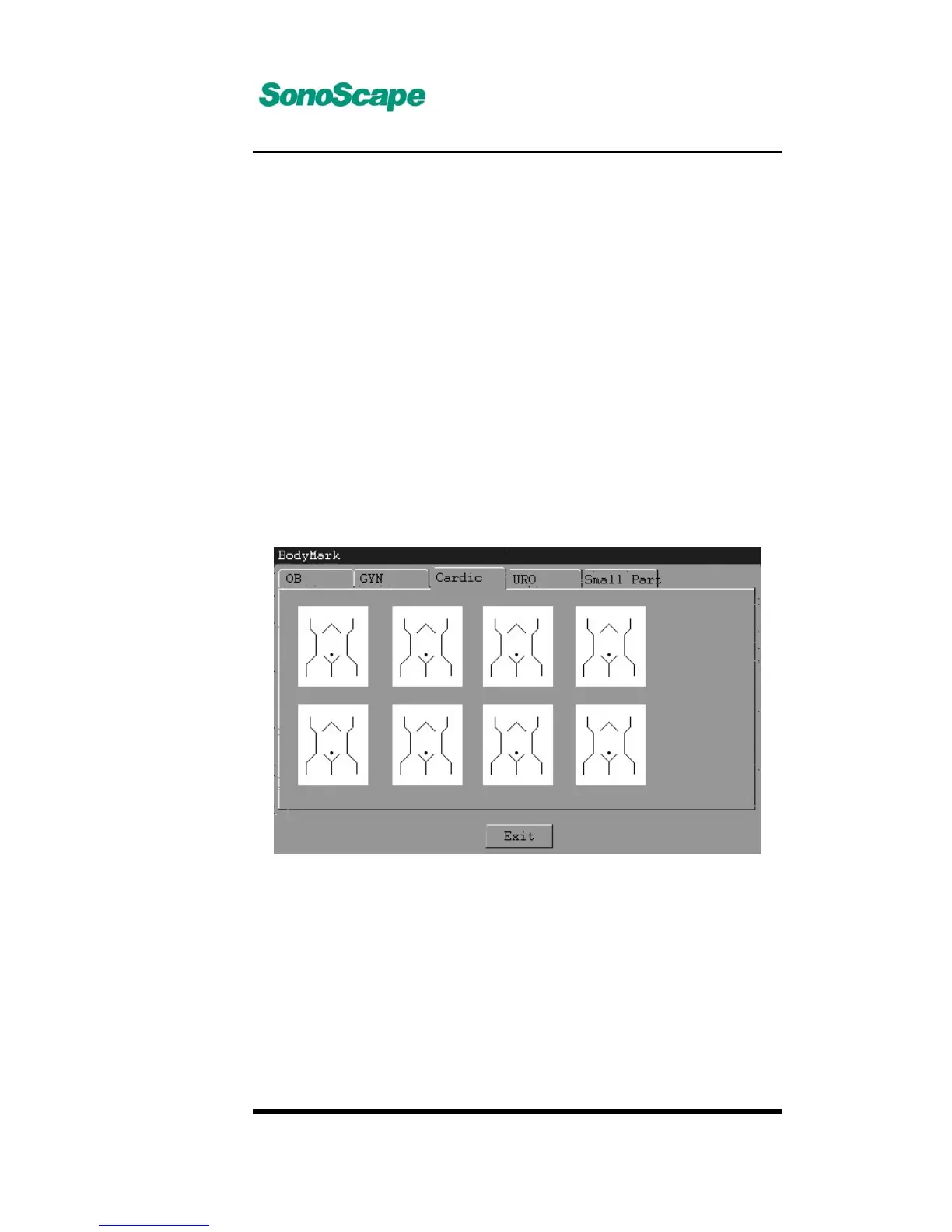

The BodyMark page is shown below:
The operation of BodyMark is follows:

Add
Go to BodyMark page, click a bodymark, and the
selected bodymark appears at the left-bottom of the
image area; Move the 【Trackball】to adjust the probe
position in the bodymark; Rotate the【MENU】key to
adjust the probe orientation in the bodymark; Press the
【SET】key to fix the probe orientation. Note: To insert a
new bodymark will clear the original bodymark.
