12 Installation guide | Supercal 5
Temperature sensors mounting
The temperatures indicated on the identication plate of the temperature
sensors are to be observed. The temperature sensors are always paired. Only
matched pairs are supplied and may not be separated, extended or shortened,
since this affects the measuring accuracy. With temperature sensor pairs with
a cable length longer than 3 m, we exclusively recommend the use of shielded
temperature sensor pairs. In this case, the shields must be installed correctly.
Temperature sensors with protection pockets must be inserted up to the stall –
and xed afterwards. With unequal cable lengths or longer than 6 m we recom-
mend exclusively the use of four-wire technology. The temperature sensors can
be installed alternatively in protection pockets or directly in the heating and/or
cooling agent however always both in the same way. Asymmetrical mounting,
one sensor direct the other with pockets, isn’t permitted. The measuring tip of
the temperature sensor part must be positioned in the center of the cross section
of the pipe.
Temperature
sensor
Versions Pocket Part number Material Temperature
range
Ø 6 x 31mm Pt500 G3/8" 0460A202 Brass 0 … 100°C
Ø 6 x 31mm Pt500 G1/2" 0460A206 Brass 0 … 100°C
Ø 6 x 85mm Pt500, DIN G1/2" 0460A207 Stainless 0 … 150°C
Ø 6 x 134mm Pt500, DIN G1/2" 0460A208 Stainless 0 … 150°C
Ø 6 x 174mm Pt500, DIN G1/2" 0460A209 Stainless 0 … 150°C
The resonance frequencies of the protection pockets are outside of the ow velocities at
maximum ow (qs).

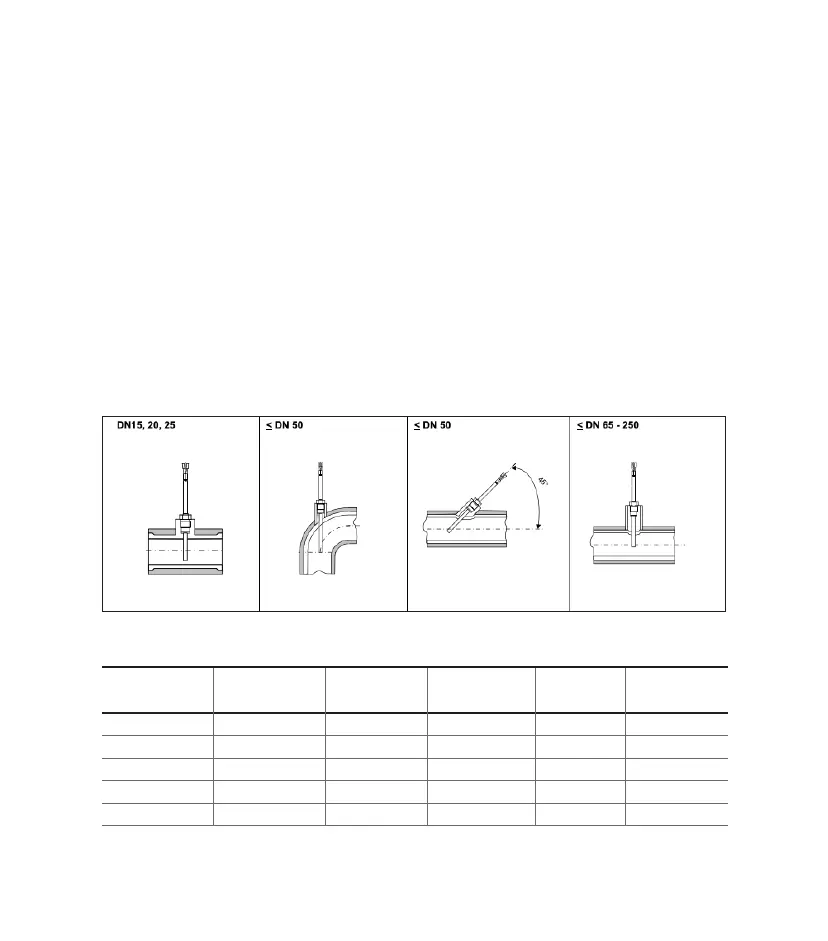

List of sensor pockets
Installation in T-tting
Temperature sensor perpendicularly to
the axis of the piping in the same level
Installation with welding sleeve 90º
Temperature sensor axle coincide with
the tubing axle
Installation with welding sleeve 45º
Temperature sensor measuring element
sub-merged onto the tubing axle
Installation in pipe
Temperature sensor axle perpendicular-
ly to the tubing axle.
