Sony Ericsson K850 - Audio Digital

K850
1203-2528 rev. 1

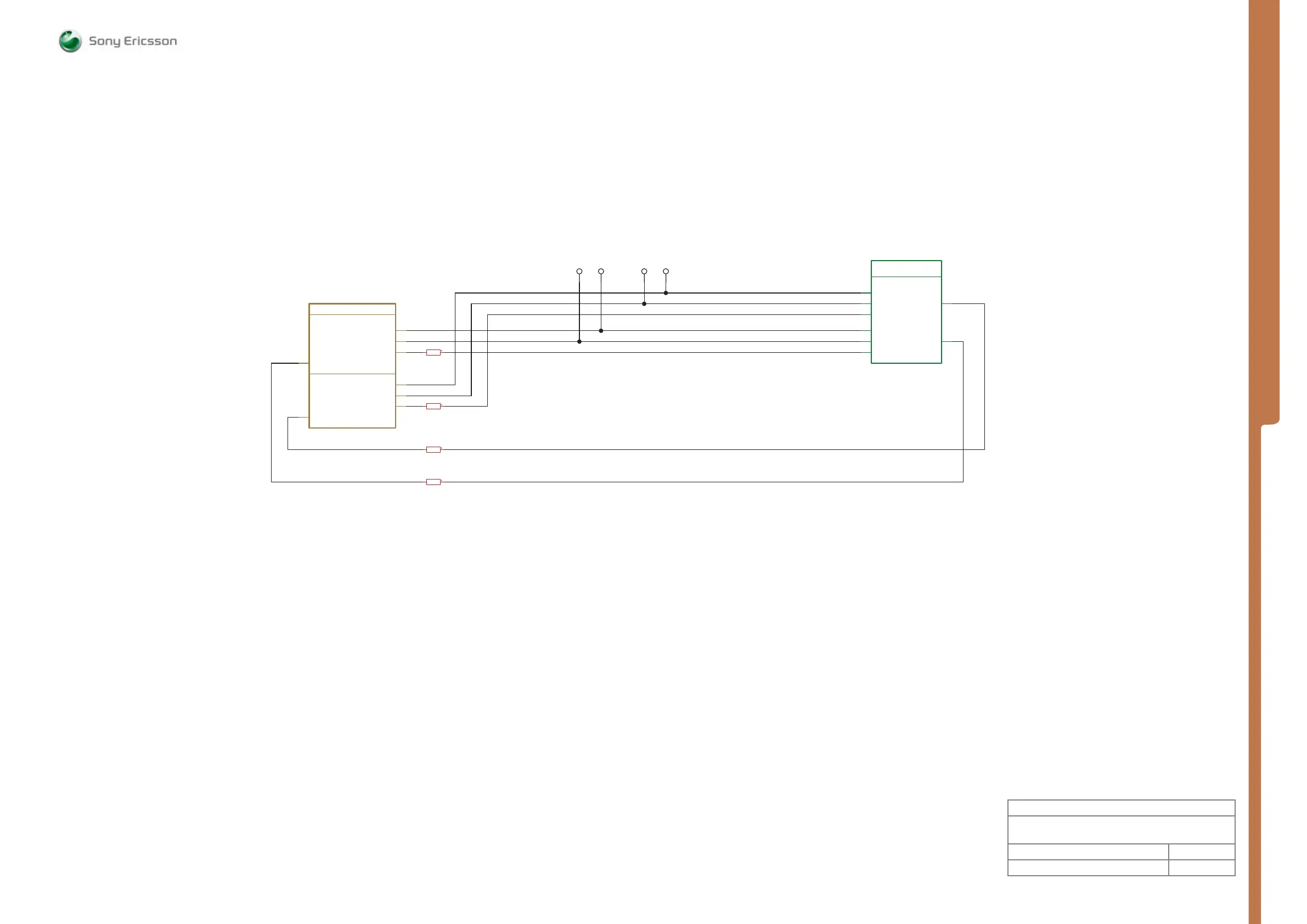

MEASUREMENT POINTS Audio Digital
MEASUREMENT POINTS
Made for
Document Nr Revision
AB3100
3A
K1
J3
L2
K2
K4
J1
L3
K3
N2000
1000-8142
CODEC IF
Ericsson AB 3100
MMI
SCK1
WS1
SDI1
SCK2
WS2
SDI2
SDO1
SDO2
SP3204
SP3205
ASTA/ANJA
R20
T21
T19
R19
T20
U20
U21
U22
D2000
1200-0795
Asta/Anja_AUDIO
I2S1DLD_PCM1DLD
I2S1WS_PCM1SYN
I2S1CLK_PCM1CLK
I2S0DLD_PCM0DLD
I2S0WS_PCM0SYN
I2S0CLK_PCM0CLK
I2S1ULD_PCM1ULD
I2S0ULD_PCM0ULD
ASTA/ANJA_APP_I2S_PCM
SP3208
SP3209
0ohmsR3200
0ohmsR3201
0ohmsR3202
0ohmsR3203
App_I2S0_DATA_A
App_I2S0_WS
App_I2S0_CLK
App_I2S0_DATA_B
App_I2S1_DATA_B
App_I2S1_DATA_A
App_I2S1_WS
App_I2S1_CLK
Audio
Audio Digital
1200-1890 Page 3 3
SEMC Troubleshooting Manual
53 (101)
