K850
1203-2528 rev. 1

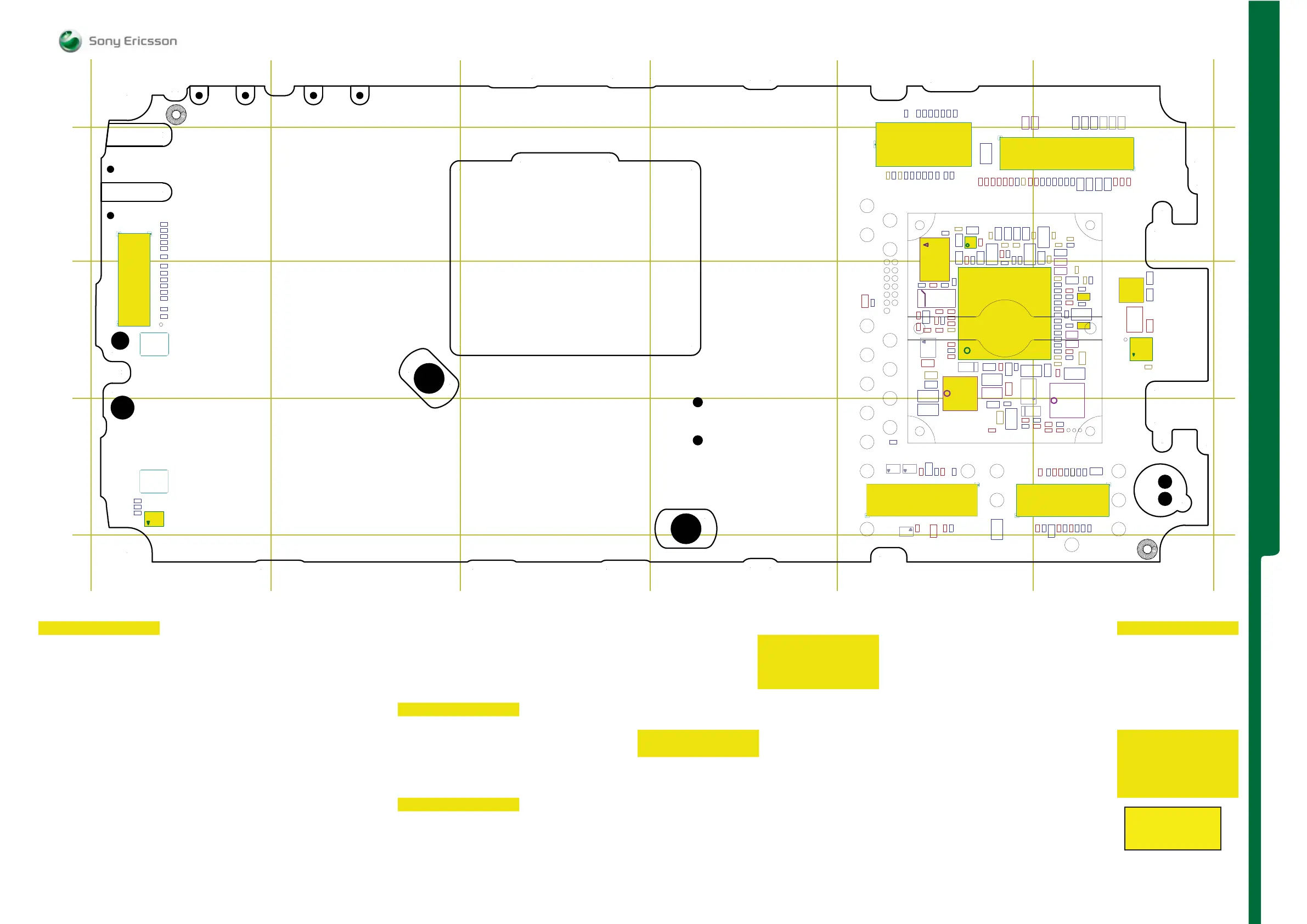

COMPONENT OVERVIEW Front Side B - X
COMPONENT OVERVIEW
123456
123456
A
D
C
B
A
D
C
B
B2101 B5 R
C2107 RJC 516 4016/1 B5
C2200 RJC 516 3037/47 B5
C2202 RJC 516 3037/47 B5
C2204 RJC 516 4016/1 C5
C2205 RJC 516 4027/22 C5
C2207 RJC 463 3012/47 B5
C2208 RJC 516 3027/1 B5
C2209 RJC 516 4027/22 B6
C2210 RJC 516 4016/1 C5
C2213 RJC 516 3037/47 B6
C2214 RJC 516 4027/22 B5
C2215 RJC 516 3027/1 B6
C2216 RJC 516 3027/1 B5
C2218 RJC 516 3027/1 B5
C2219 RJC 516 4038/1 C5
C2220 RJC 516 3526/1 C5
C2221 RJC 516 3526/1 C5
C2222 RJC 516 4038/1 D5
C2223 RJC 516 3027/1 B5
C2224 RJC 516 4027/22 B5
C2225 RJC 516 4027/22 C6
C2226 RJC 516 3526/1 D5
C2229 RJC 516 4016/1 B5
C2230 RJC 516 4027/22 B5
C2240 RJC 516 4038/1 C5
C2241 RJC 516 3237/1 C5
C2242 RJC 516 3027/1 C5
C2400 RJC 516 4016/1 B6
C2405 RJC 516 3613/1 C6
C2406 RJC 516 3027/1 C6
C2408 RJC 463 3012/33 D6
C2410 RJC 516 3015/1 D6
C2411 RJC 516 3027/1 D6
C2424 RJC 464 3025/1 C6
C2429 RJC 516 4016/1 C6
C2440 RJC 516 4016/1 D6
C2446 RJC 516 3027/22 D6
C2450 RJC 516 4027/1 B6
C2451 RJC 516 4027/1 B6
C2452 RJC 516 4027/1 A6
C2453 RJC 516 4027/1 A6
C2454 RJC 516 4027/1 A6
C2455 RJC 516 4027/1 B6
C2456 RJC 516 4027/1 B6
C2507 RJC 516 4038/1 D5
C2510 RJC 516 3027/1 D5
C2511 RJC 516 3015/1 D5
C2515 RJC 463 3012/33 D5
C3112 RJC 516 4038/1 C6
C3121 RJC 516 4016/1 C6
C3122 RJC 463 3012/33 C6
C3131 RJC 516 4016/1 C6
C3132 RJC 516 4016/1 C6
C3133 RJC 516 4016/1 C6
C3135 RJC 516 4016/1 C6
C3136 RJC 463 3012/33 C6
C3137 RJC 516 3026/47 C6 R
C3138 RJC 516 3015/47 B5
C3139 RJC 463 3012/33 C6
C3140 RJC 463 3012/33 C6
C3151 RJC 463 3012/33 C6
C3152 RJC 463 3012/33 C6
C3154 RJC 516 3014/33 C5
C3160 RJC 516 3026/47 C6 R
C4200 RJC 516 3037/22 C6
C4202 D5
C4203 RJC 516 3237/1 D5
C4208 RJC 516 4016/1 D1
C4209 RJC 463 3012/33 D1
C4211 RJC 516 3027/1 C5
C4213 RJC 516 4016/1 B5
C4214 RJC 516 4016/1 B5
C4215 RJC 463 3012/33 B5
C4216 RJC 463 3012/33 B5
C4217 RJC 463 3012/33 A5
C4218 RJC 463 3012/33 A5
C4219 RJC 463 3012/33 A5
C4220 RJC 463 3012/33 A5
C4221 RJC 463 3012/33 A5
C4222 RJC 463 3012/33 A5
C4223 RJC 463 3012/33 B5
C4224 RJC 463 3012/33 B5
C4225 RJC 463 3012/33 B5
C4226 RJC 463 3012/33 B5
C4227 RJC 463 3012/33 A5
C4228 RJC 463 3012/33 B5
C4229 RJC 516 4016/1 B5
C4230 RJC 516 4016/1 C5
C4233 RJC 516 3237/1 B5
C4325 RJC 463 3012/22 B1
C4328 RJC 516 4016/1 C1
C4329 RJC 516 4016/1 C1
E1002 D5 R
L2200 C5 R
L2201 REG 706 05/15 C5
L2462 REG 706 18/18 A6
L2463 REG 706 18/18 A5
L3103 REG 706 18/2 C6
L3104 REG 706 18/2 C6
L3105 REG 706 18/2 C6
L3106 REG 706 18/2 C6
L4201 D6
N2000 ROP 101 3106/1 R1A C5 R
N2201 RYT 113 955/7 B5 R
N2402 C6 R
N4200 RKZ 433 938/1 D1 R
R2125 REP 621 001/0 C5
R2201 REP 624 650/1 C6
R2203 REP 621 106/1 B5
R2204 REP 621 004/47 C5
R2206 REP 621 006/1 B5
R2407 REP 621 006/47 D6
R24105 REP 621 002/27 D6
R24106 REP 621 001/0 D6
R24107 REP 621 001/0 D6
R24108 REP 621 001/0 D6
R24109 REP 621 001/0 D6
R24110 REP 621 001/0 D6
R2416 REP 621 005/1 C6
R2419 REP 621 005/1 C6
R2421 REP 621 004/47 C5
R2422 REP 621 004/47 C5
R2427 REP 621 006/1 C5
R2443 REZ 401 0094/47A C5
R2458 REP 621 006/1 B5
R2459 REP 621 006/1 B6
R2467 REP 621 006/47 B6
R2468 REP 621 006/47 B6
R2469 REP 621 006/47 B6
R2475 REP 621 005/1 B5
R2476 REP 621 005/1 B5
R2477 REP 621 005/1 B5
R2478 REP 621 005/1 B5
R2479 REP 621 005/1 B5
R2480 REP 621 005/1 B5
R2502 REP 621 003/18 D5
R2507 REP 621 003/18 D5
R2516 REP 621 006/1 D5
R2517 REP 622 001/0 D5
R2543 REP 621 001/0 D5
R2544 REP 622 001/0 C5
R3158 REP 621 001/0 C6
R3200 REP 621 001/0 D6
R3201 REP 621 001/0 D5
R3202 REP 621 001/0 D6
R3203 REP 621 001/0 D6
R4203 REP 622 450/15 C5
R4206 REP 621 106/18 C5
R4209 REP 621 005/1 C5
R4211 D5
R4212 REP 621 105/62 D6
R4215 REP 621 002/1 C5
V2202 RYN 122 910/1 C6 R
V2207 RKZ 123 905/2 C5
V2465 A6
V2466 A6
V2467 A6
V4200 RYN 123 915/1 C5
V4201 RKZ 123 905/2 D5
V4205 C5
X2409 RNV799 045/22 R1A D6 R
X2410 B6 R
X2511 D5 R
X4200 B5 R
X4300 RNV 799 045/22 R1A C1 R
R - Replaceable
See Appendix for
more information.
A1
B1
A1
B1
2
1
A1
B1
26
25
A1
B1
N2000
ST2201
N2402
V4201
C3137
C2452
C4231
R4211
V4200
C2241
C3112
C3160
C2200
X2410
TP2504
SP5113
C4228
X2511
V2512
E1002
L2200
V2207
SP5109
SP5108
SP5117
SP5119
SP5120
N2201
C2224
X4200
N4200
X3101
X3100
C2201
R2483
C2424
TP2400
TP2401
C2410
C2411
R2469
R2467
C2454
V2466
R2468
V2467
V2465
TP2403
SP2419
R2201
V2202
C3121
C2456
C2455
C2451
R24105
R24108
C2428
R24107
C2446
C2448
C2447
C2440
R2407
C2445
R24109
R24106
C2407
R24110
C2409
C2408
L4201
ST4202
ST2212
ST2202
C2213
C2460
C2459
C2461
R2458
C2462
C2453
R2459
C2464
C2463
L2462
TP2402
X2409
R4202
SP3204
C4201
R3203
R4212
SP2407
C4232
SP3205
R3200
ST2401
ST2400
C2406
C2429
C4200
R2419
R2416
L3103
C3139
C3132
C3140
C3119
C3136
L3104
C3127
C3133
R3114
C3152
C3126
C3151
C2405
C3135
C3129
C3102
ST3100
ST2213
ST2204
ST2214
ST3101
ST2407
C3131
C2400
R3158
L3105
C3122
C2215
C3130
L3106
C2225
C2209
C2450
TP2501
C2507
ST4203
C4203
ST2208
C2214
C2230
C2216
C2205
ST2457
R2479
R2475
R2480
R2478
C2472
R2477
L2463
R2476
TP2500
R3201
C2226
L2201
C4202
C2210
R4203 C2242
R4215
C2220
C2219
ST2215ST2203
R2206
R3154
C3154
C3138
C2229
C2218
C2207
C2202
C4229
C4233
C2515
C2510
C2508
R2507
R2516
C2511
R2517
R2502
R2543
V4205
C2222
B2100
C2223
C4224
C4215
C4216
C4225
C4223
C4226
ST2206
C2240
C2221
R4214
R2544
ST2210
R4209
C2105
R4206
R2422
R2130
R24103
R2204
R2427
R2129
R2464
C4211
R2421
C4230
R2203
C2102 C2103
C2208
C2204
B2101
R2125
ST4204
C2107
C4217
C4219
C4222
C4220
C4227
C4221
C4218
TP2502
TP2503
TP2206
TP2200
SP5115
ST4201
ST4200
C4214
C4213
V2510
TP2201
TP2208
C2293
V2511
TP2202
TP2204
TP2207
TP4200
SP5118
SP5111
TP4201
R2443
C2432
SP5110
SP5114
SP5116
TP3100
SP5112
TP4106
TP2203
TP4112
C4204
C4341
C4329
SP4300
C4331
C4328
C4337
C4340
C4330
C4325
C4336
C4338
C4339
C4332
C4342
C4343
X4300
C4209
C4208
C4210
SEMC Troubleshooting Manual
59 (101)
