Sony Ericsson K850 - Components L2200 - L2401-04 - N1200

K850
1203-2528 rev. 1

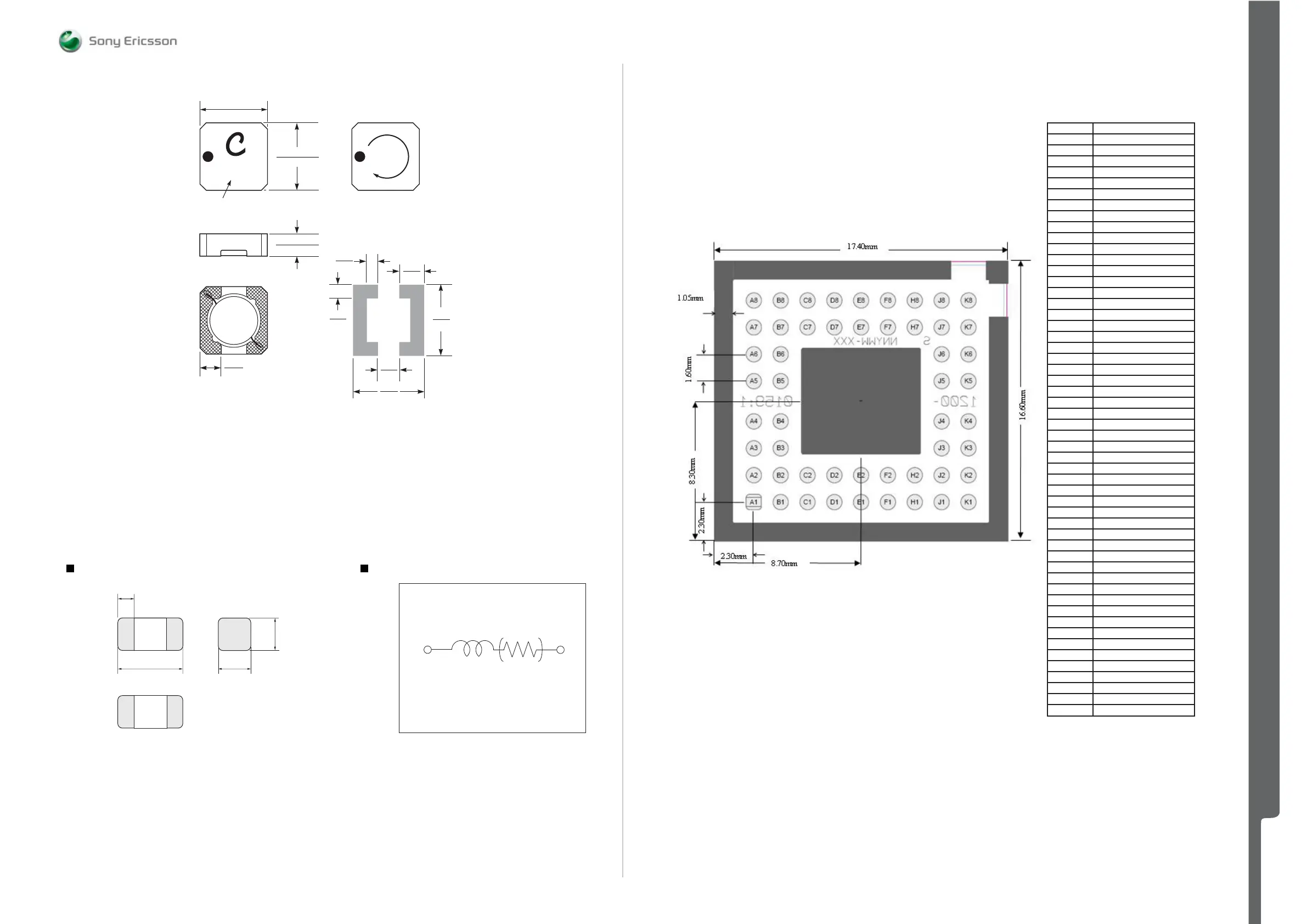

APPENDIX Components L2200 - L2401-04 - N1200
APPENDIX
0.116 ±0.003
2,95 ±0,076
Dash
number
0.116 ±0.003
2,95 ±0,076
0.130
3,30
0.040
1,02
0.025
0,64
0.045
1,16
0.020
0,51
0.130
3,30
0.035 ±0.004
0,9 ±0,1
Recommended
Land P attern
0.035
0,89
Winding
direction
XXX
*
*
Dimensions are of the case not
including the termination. For maxim um
overall dimensions including the
termination, add 0.005 in / 0,13 mm.
*
(in mm)
0.5±0.05
0.5±0.05
1.0±0.05
0.25±0.1
(Resistance element becomes dominant
at high frequencies.)
Dimension Equivalent Circuit
TOP VIEW
Pins / Signal cross-reference:
Pin_name Signal name
K2 AMP_LSB_FREQ_LSB
K8 ANTSTRIP
J8 ANTSW0
H7 ANTSW1
H8 ANTSW2
A5 ANTSW3
J1 DCLK_DATSTR
H1 IDATA_FREQ_MSB
F1 MCLK
H2 MCLKREQ
J2 QDATA_AMP_MSB
E2 RADCLK
C2 RADDAT
J4 RADSTR1
F2 TESTOUT
B5 VBAT
B6 VBAT
K7 WCDMA1900
K6 WCDMA2100
J7 WCDMA850
E1 WBCLK
K1 VDIGRAD_1V8
K3 VRADA_2V75
K4 GND
K5 GND
J3 GND
J5 GND
J6 GND
F7 GND
F8 GND
E7 GND
E8 GND
D1 GND
D2 GND
D7 GND
D8 GND
C1 GND
C7 GND
C8 GND
B1 GND
B2 GND
B3 GND
B4 GND
B7 GND
B8 GND
A1 GND
A2 GND
A3 GND
A4 GND
A6 GND
A7 GND
A8 GND
SH1 GND
L2200 Inductor WW 4.7uH +/-20% 1201-2245 N1200 GSM/GPRS/EDGE Radio Module Thor
L2401-04 Filter 0.0 Hz 0402 REG70618/20
SEMC Troubleshooting Manual
78 (101)
