Sony Ericsson K850 - Components N2202 - N2203

K850
1203-2528 rev. 1

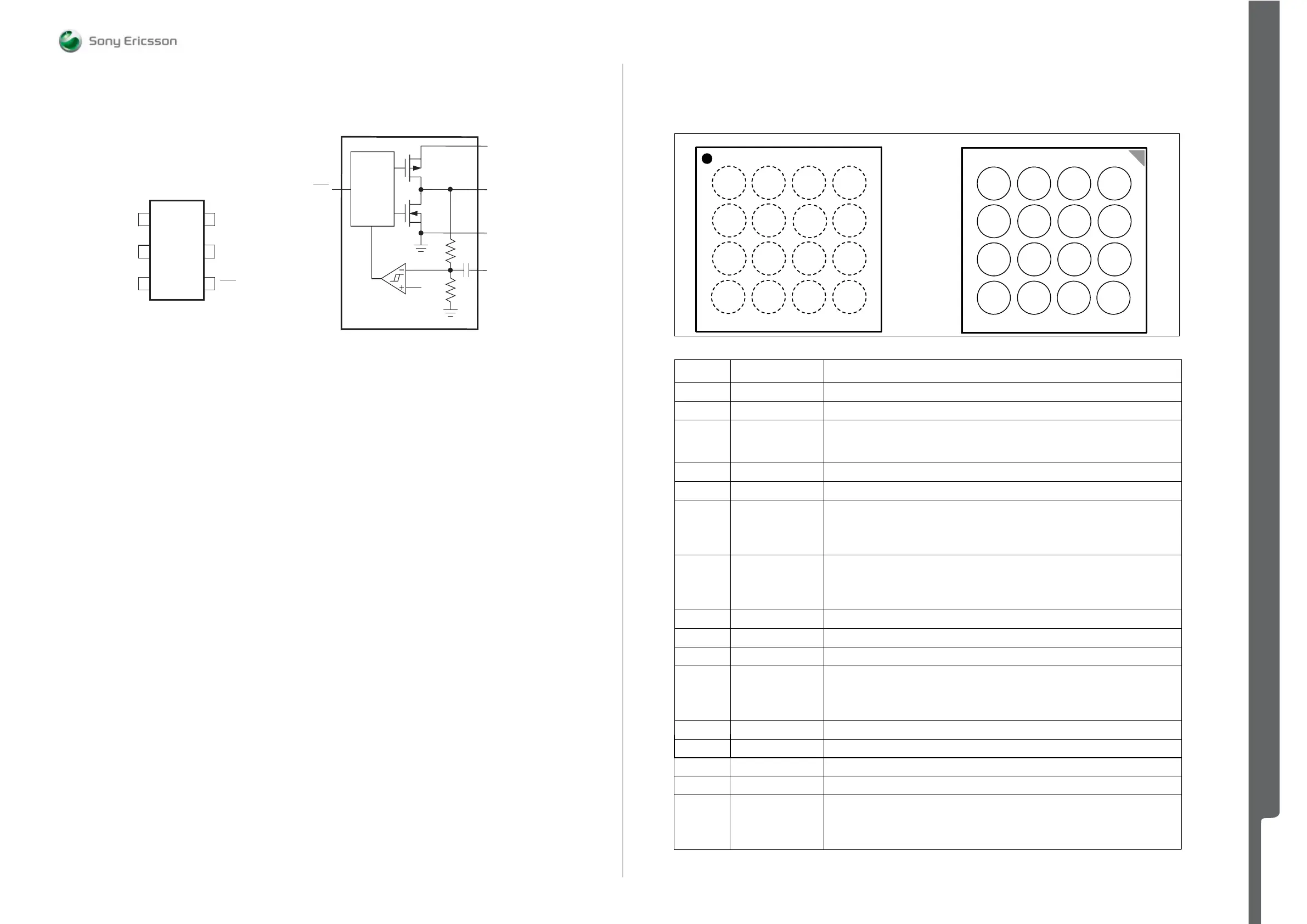

APPENDIX Components N2202 - N2203
APPENDIX
+
6
5
GND
OUT
LX
SC70
2.0mm x 2.1mm
TOP VIEW
4
1
2
3
IN
GND
SHDN
Pin Congurations
PWM
LOGIC
GND
LX
IN
SHDN
0.6V
OUT
Simplied Functional Diagram
Pin assignment in TFBGA 3x3 mm - 16 bumps 0.5 mm pitch
PGND
PVDD
MODE/
SYNC
FB1
VLX1
STATE
AUTO
FB2
VLX2
VSEL
VDD
VOUT1
VOUT2
GND
EN
A
B
C
D
1
2
3
4
T_MODE
PGND
PVDD
MODE
/
SYNC
FB1
VLX1
STATE
AUTO
FB2
VLX2
VSEL
VDD
VOUT1
VOUT2
GND
EN
1
2
3
4
A
B
C
D
T_MODE
Top view
Bottom view
12 34
A
B
C
D
A
B
C
D
4321
Pin description
noitpircseDlobmySniP
A1 PGND Power ground
B1 PVDD Power supply voltage
C1 MODE/SYNC
MODE/SYNC = High to forced PWM mode
MODE/SYNC = Low to forced PFM mode
MODE/SYNC = 600 kHz - 1.5 MHz external clock synchronization in PWM
D1 FB1 Feedback 1
A2 VLX1 External inductor connection pin 1
B2 STATE
Output STATE pin allow the user to monitor operation mode of the product
STATE = High - PFM mode
STATE = Low - PWM mode
If not used must be left unconnected.
C2 AUTO
PWM/PFM automatic switch control pin
AUTO = High - PWM/PFM mode automatic switch ENABLED
AUTO = Low - PWM/PFM mode automatic switch DISABLED
PWM/PFM mode controlled by MODE/SYNC pin)
D2 FB2 Feedback 2
A3 VLX2 External inductor connection pin 2
B3 T_MODE Input signal for test mode selection. This pin must be connected to GND.
C3 VSEL
Voltage selection input
VSEL = High - VOUT1 = 1.8V, VOUT2 = 1.2V (valid for STA1)
VSEL = Low - VOUT1 = 1.8V, VOUT2 = 1.0V (valid for STA1)
(For other voltage options see
Table 1: STw4141 ordering information
)
D3 VDD Signal supply voltage
A4 VOUT1 Output voltage 1
B4 VOUT2 Output voltage 2
C4 GND Signal ground
D4 EN
Enable Input:
EN = Low - Device in shutdown mode,
EN = High - Enable device
This pin must be connected either to VDD or GND.
N2202 IC Voltage Regulator MAX8640, 1.8V 1200-6420 N2203 IC Voltage Regulator 1200-0110
SEMC Troubleshooting Manual
81 (101)
