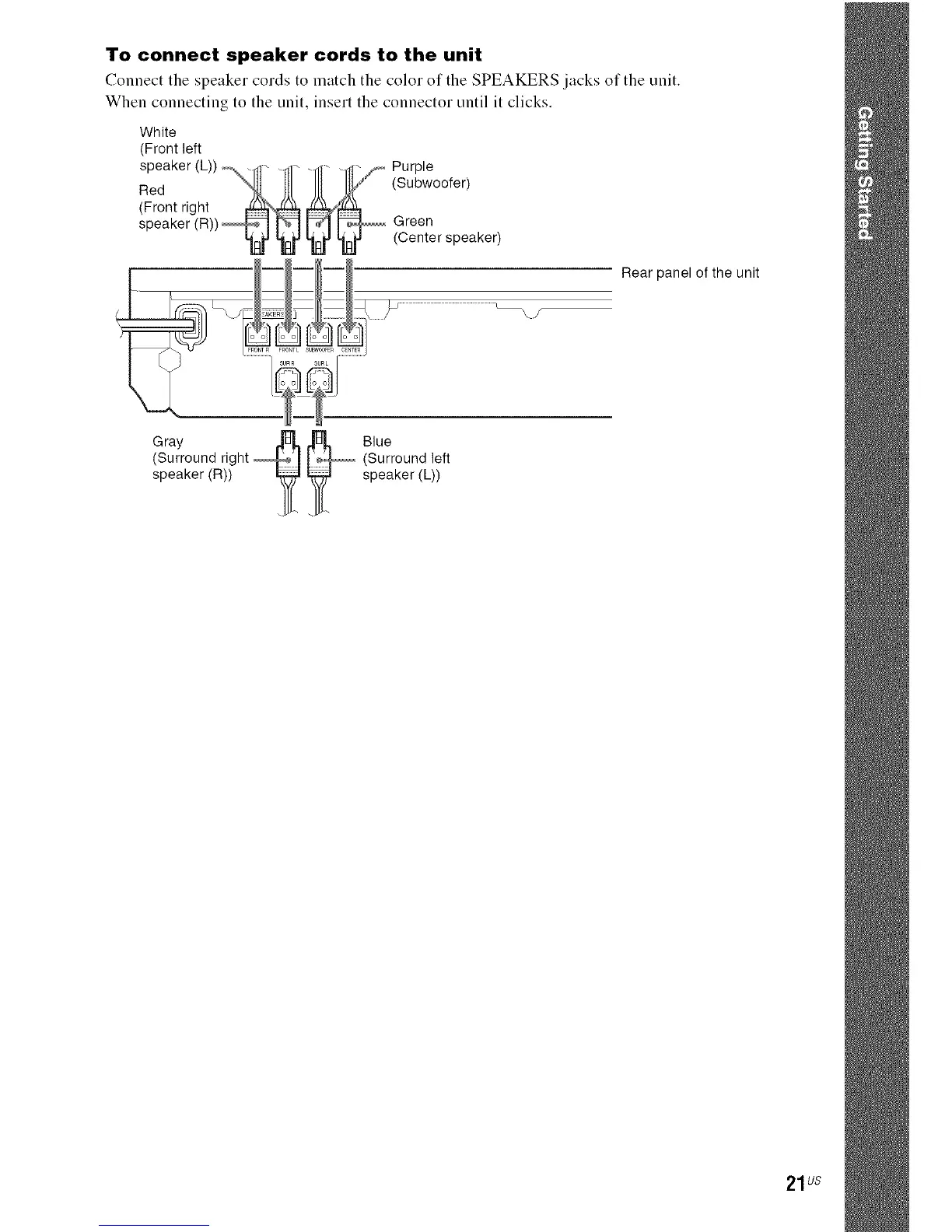

To connect speaker cords to the unit
Connect the speaker cords to match the color of the SPEAKERS jacks of the unit.
When connecting to the unit, insert the connector until it clicks.
White
(Front left
speaker (L)) _4" "4" "4" "4_ _'F
Red _ j_[ JJ,[
(Front right
speaker (R))_ _ _]j] _
Purple
(Subwoofer)
Green
(Center speaker)
Rear panel of the unit
Gray N, !
(Surround right _ _
speaker (R)) _..
Blue
(Surround left
speaker (L))
