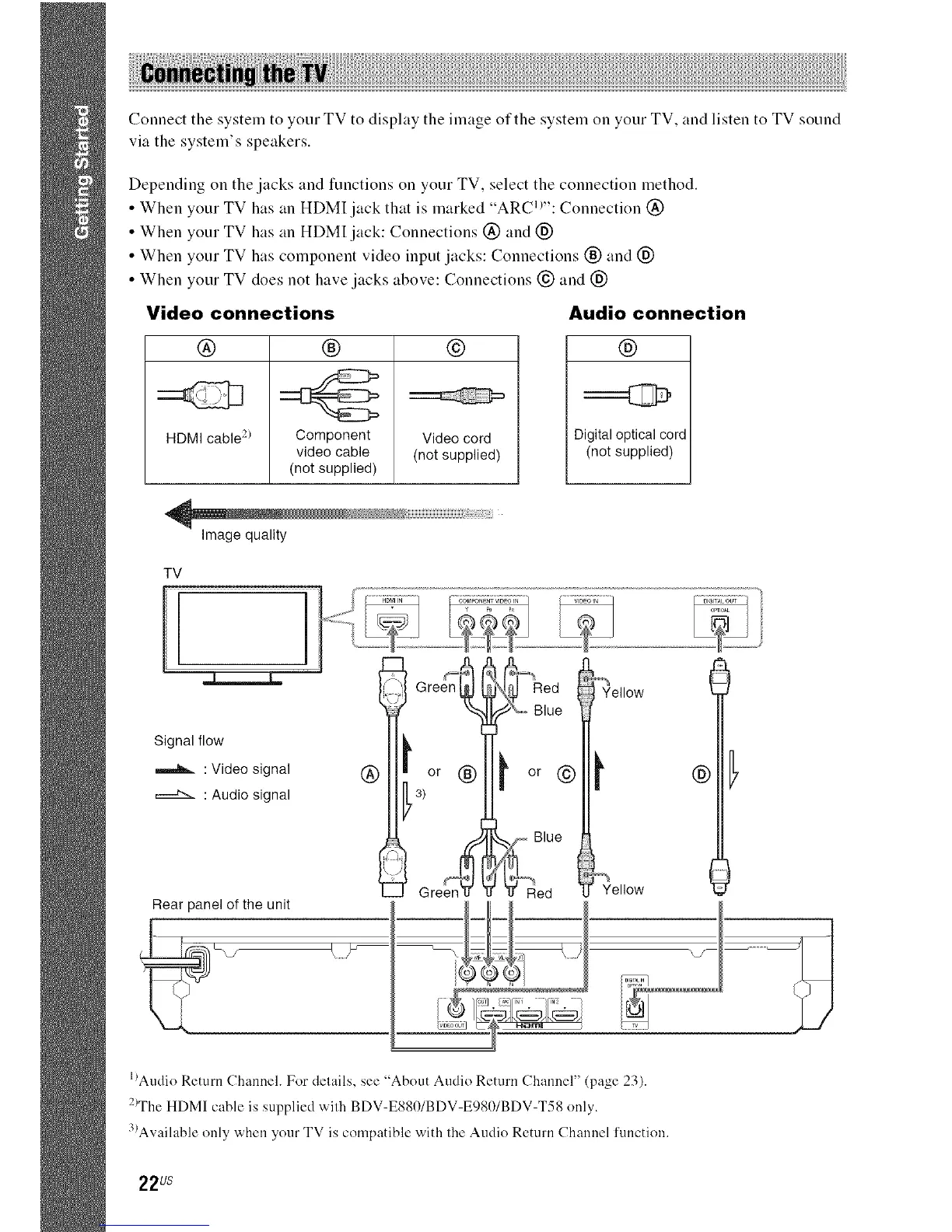

Connect the system to your TV to display the image of the system on your TV, and listen to TV sound
via the system's speakers.
Depending on the jacks and functions on your TV, select the connection method.
• When your TV has an HDMI jack that is marked "ARCh": Connection (_)
• When your TV has an HDMI jack: Connections (_) and (_)
• When your TV has component video input jacks: Connections (_) and (_)
• When your TV does not have jacks above: Connections I_) and (_)
Video connections
®
HDMI cable2)
®
Component
video cable
(not supplied)
®
Video cord
(not supplied)
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!iiii!;!;;i_i_;;_;!;i!!;!;ili
Image quality
Audio connection
®
Digitaloptical cord
(not supplied)
TV
Signal flow
: Video signal
: Audio signal
®
Rear panel ofthe unit
Q_J_
bAudio Return Channel. For delails, see "About Audio Return Channel" (page 23).
2_The HDMI cable is supplied with BDV-E880/BDV-E980/BDV-T58 only.
3)Available only when your TV is compatible with the Audio Return Channel function.
