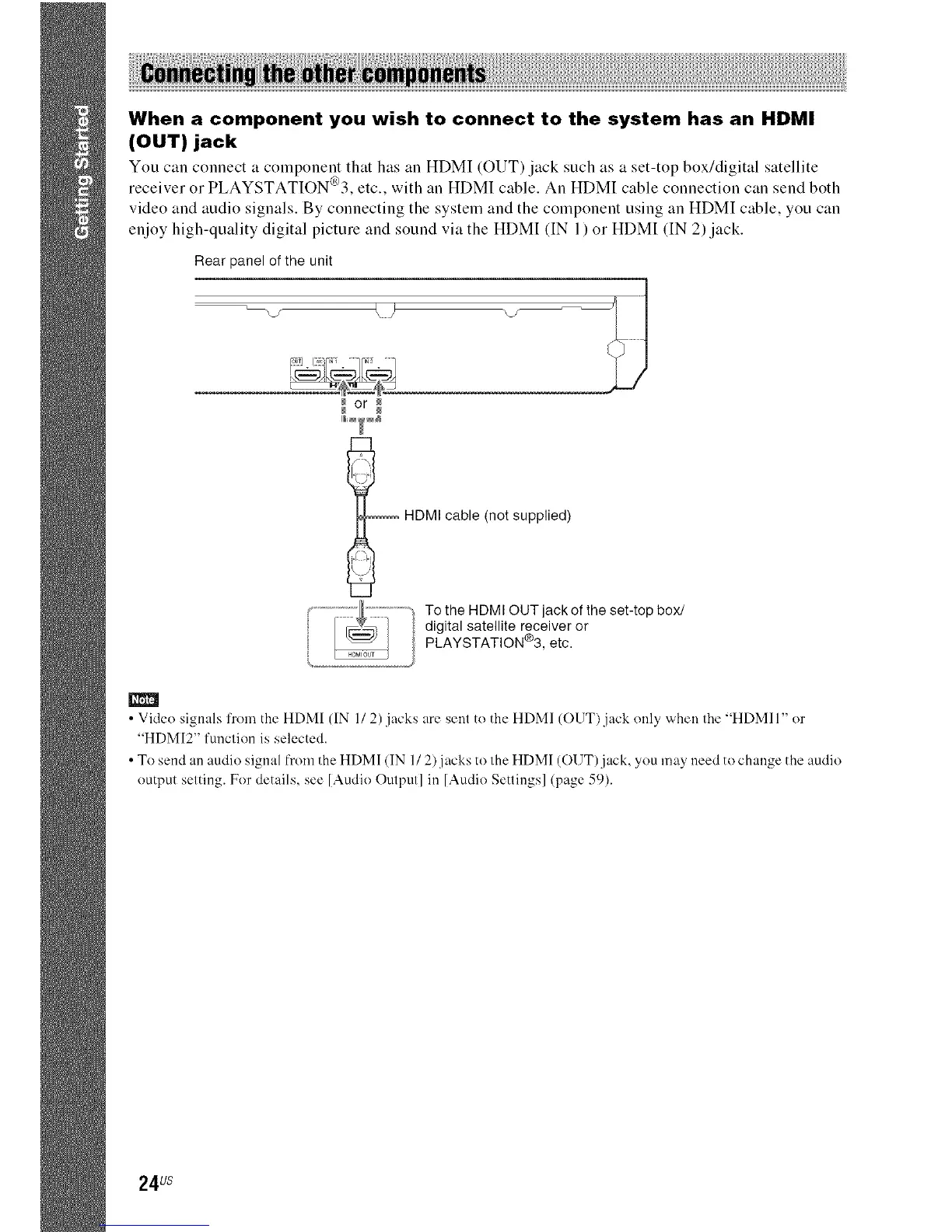

When a component you wish to connect to the system has an HDMI
(OUT) jack
You can connect a component that has an HDMI (OUT) jack such as a set-top box/digital satellite
receiver or PLAYSTATION®3, etc., with an HDMI cable. An HDMI cable connection can send both
video and audio signals. By connecting the system and the component using an HDMI cable, you can
enjoy high-quality digital picture and sound via the HDMI (IN 1) or HDMI (IN 2) jack.
Rear panel of the unit
QJ _J-
_or_
il!
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,HDMI cable (not supplied)
To the HDMI OUT lack of the set-top box/
digital satellite receiver or
PLAYBTATION®3, etc.
INn
• Video signals from the HDMI (IN 112)jacks are sent to the HDMI (OUT)jack only when the "HDMII" or
"HDMI2" function is selected.
• To send an audio signal from the HDMI (IN 1/2)jacks to the HDMI (OUT)jack, you may need to change the audio
output setting. For details, see [Audio Output] in [Audio Settings] (page 59).
