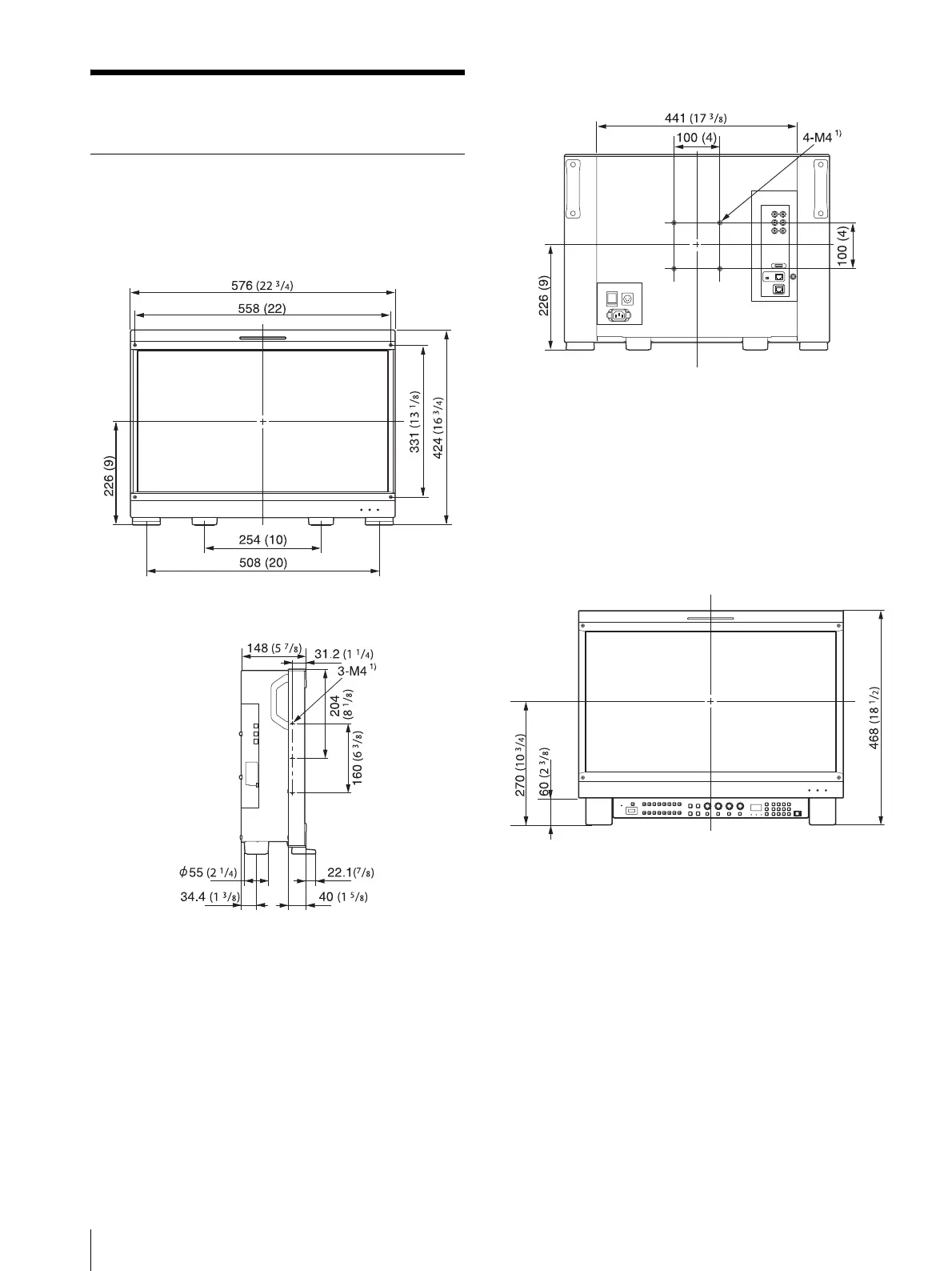

Sony BVM-E251 - Dimensions and Physical Specifications; BVM-E251 and BVM-E171 Dimensions

Dimensions
102
Dimensions
BVM-E251
Unit: mm (inches)
Front
Side
1) When using this hole, use a screw which can be inserted
into the monitor to a depth of 6 to 8 mm (
1
/
4
to
11
/
32
inches).
Rear
1) When using this hole, use a screw which can be inserted
into the monitor to a depth of 6 to 8 mm (
1
/
4
to
11
/
32
inches).
When the controller is attached with the
BKM-37H
When the tilt unit is removed from the BKM-37H
Front
