Sony CDP-CE525 Service Manual

– 21 –
– 22 –
CDP-CE525

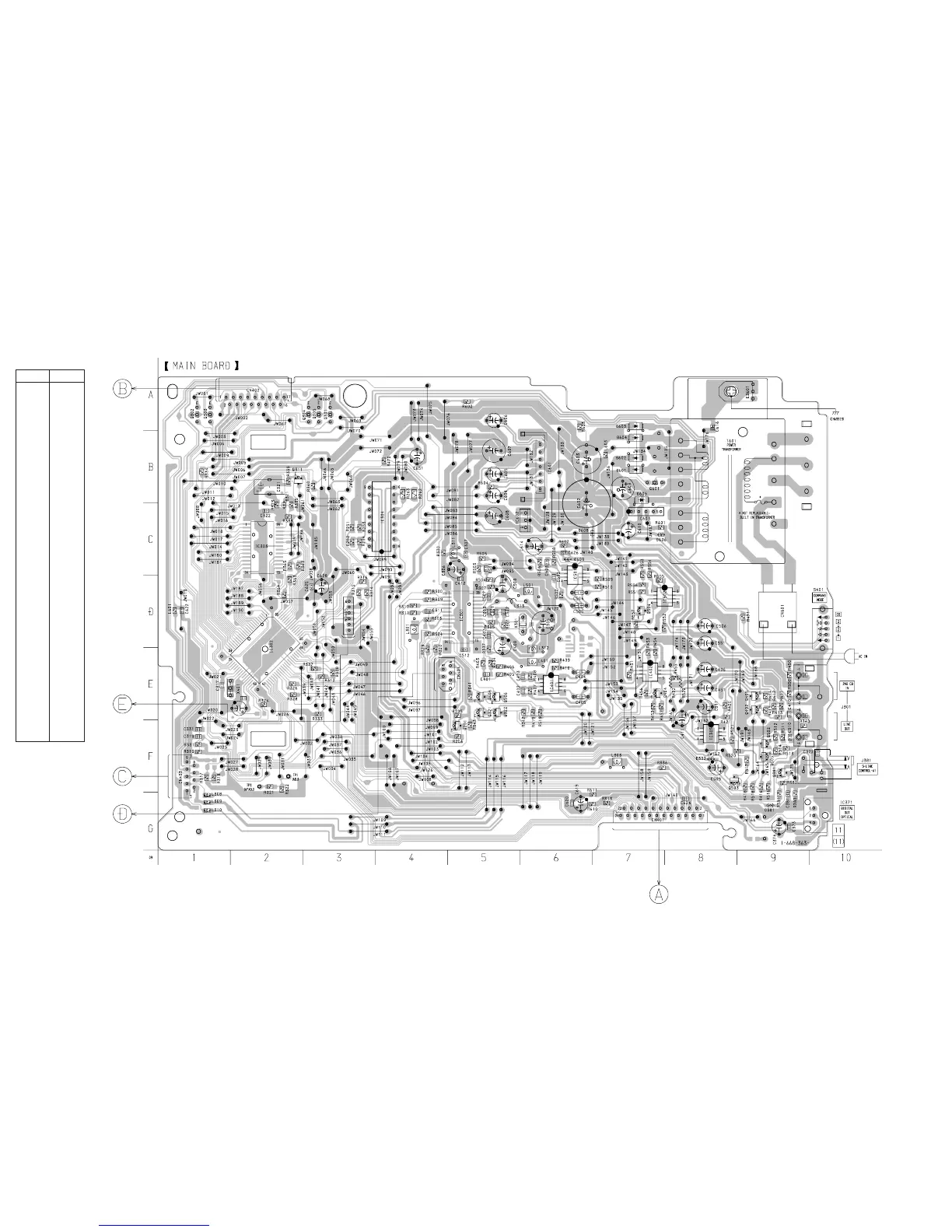

6-4. PRINTED WIRING BOARD – MAIN SECTION –
• See page 15 for Circuit Boards Location.
Ref. No. Location
• Semiconductor
Location
D302 F-8
D321 C-2
D381 G-9
D601 B-7
D602 B-7
D603 A-7
D604 B-7
D605 B-7
D606 C-7
D608 C-7
D609 C-6
IC301 D-5
IC302 D-2
IC303 C-2
IC304 C-4
IC305 F-8
IC371 G-10
IC401 E-6
IC402 E-7
IC501 C-6
IC502 D-8
IC601 B-6
IC602 C-6
IC603 C-7
Q201 F-5
Q301 A-3
Q302 A-1
Q303 A-1
Q304 A-3
Q305 A-3
Q311 B-2
Q321 E-5
Q322 E-5
Q381 F-9
Q402 E-9
Q404 E-7
Q405 E-9
Q406 E-5
Q502 F-9
Q503 F-8
Q504 D-7
Q505 F-9
Q506 E-5
Q601 B-7
(Page 32)
(Page 28)
(Page 32)
(Page 28)
(Page 20)
