– 43 –

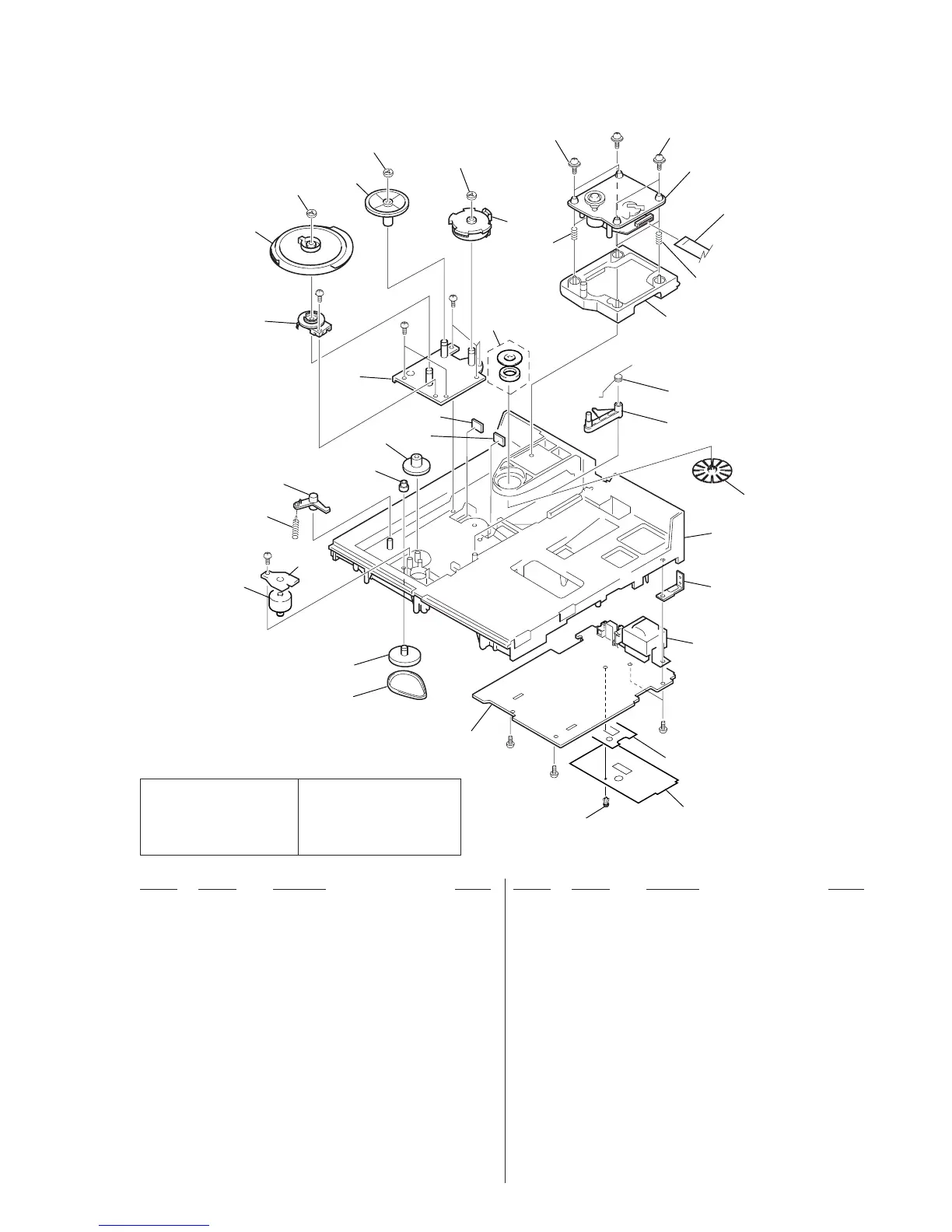

7-4. CHASSIS SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
167 4-962-087-01 SPRING (S), TENSION
* 168 1-659-738-11 LOADING BOARD
169 X-4949-851-1 PULLY ASSY
170 4-944-490-01 BELT (TIMING)
* 171 4-957-555-01 SHEET, INSULATING (AEP,AUS)
* 172 4-957-556-01 SHEET, INSULATING (AEP,AUS)
173 3-531-576-11 RIVET (AEP,AUS)
* 174 A-4724-016-A MAIN BOARD, COMPLETE (US,CND)
* 174 A-4724-017-A MAIN BOARD, COMPLETE (AEP,AUS)
175 4-993-142-11 PULLEY (L), PRESS
176 4-981-731-31 CUSHION (U/D)
177 4-981-731-21 CUSHION (U/D)
178 4-957-300-03 CHASSIS
M802 A-4660-914-A MOTOR ASSY, LOADING (LOADING)
! T601 1-429-956-11 TRANSFORMER, POWER (US,CND)
! T601 1-431-076-11 TRANSFORMER, POWER (AEP,AUS)
151 4-957-283-01 WASHER (5), STOPPER
152 4-957-288-01 GEAR (MAIN)
153 4-957-287-21 GEAR (REV)
154 4-957-286-11 GEAR (U/D)
155 1-466-996-11 ENCODER, ROTARY
156 X-4946-195-1 BRACKET (GEAR) ASSY
157 4-933-134-01 SCREW (+PTPWH M2.6X6)
158 4-948-503-01 SPRING (BU), COMPRESSION
159 1-765-443-11 WIRE (FLAT TYPE)(23 CORE)
160 4-957-289-22 HOLDER (BU)
161 1-452-925-21 MAGNET ASSY
162 4-957-281-01 SPRING (LOCK LEVER)
163 4-957-279-11 LEVER, LOCK
164 4-957-303-01 GEAR (LOADING C)
165 4-934-375-21 GEAR (LOADING B)
166 4-957-285-01 LEVER, SET
Les composants identifiés par une
marque ! sont critiques pour la
sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifié.
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
151
151
151
152
153
154
157
157
158
158
159
160
161
176
177
162
163
164
165
166
167
168
171
174
T601
#1
#1
#1
not supplied
172
173
170
169
175
178
BU-5BD25
155
156
#3
#4
#4
#4
#4
M802
