– 41 –

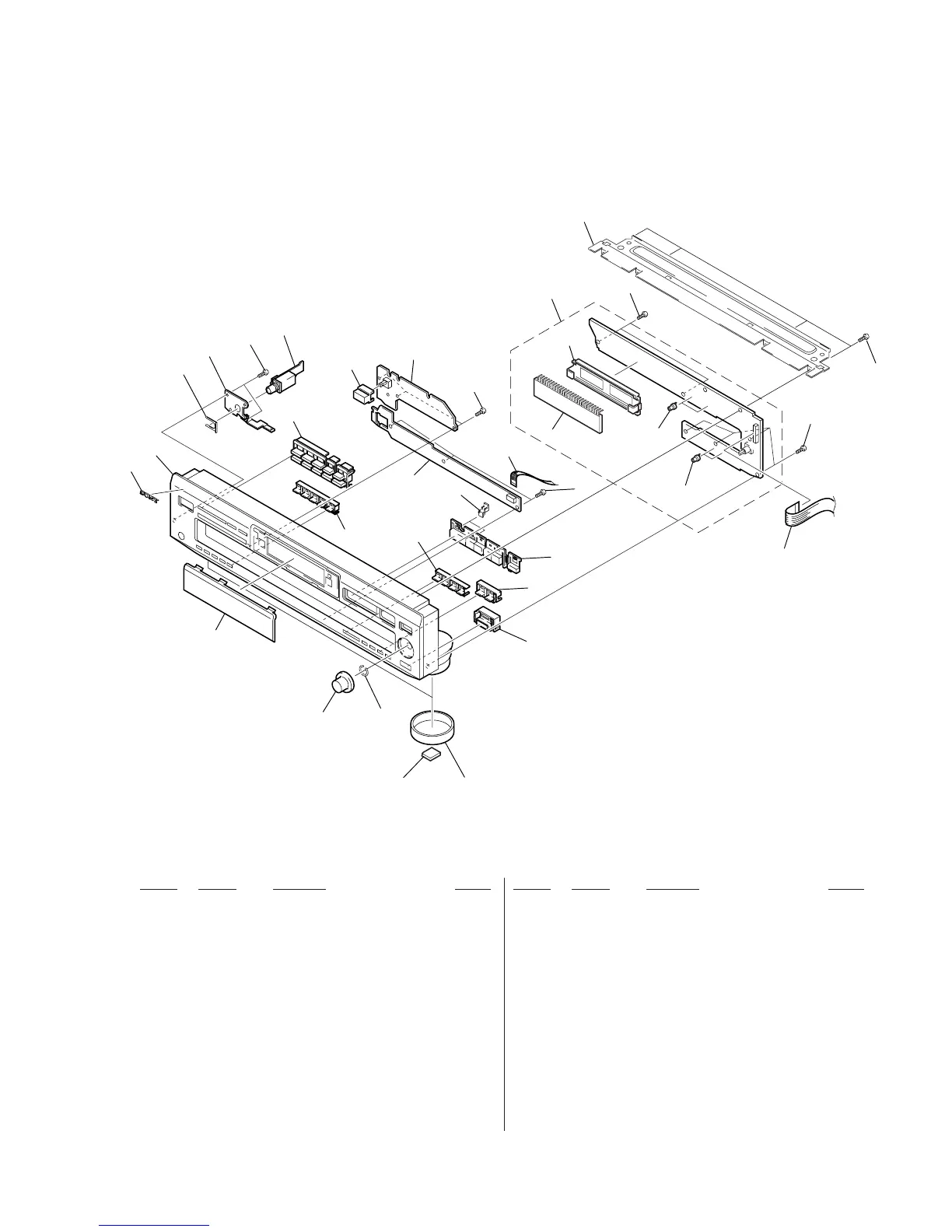

7-2. FRONT PANEL SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
* 65 1-665-357-11 POWER SW BOARD
66 1-782-220-11 WIRE (FLAT TYPE)(9 CORE)
67 4-951-620-01 SCREW (2.6X8), +BVTP
* 68 4-979-090-01 BRACKET (HP)
* 69 1-665-359-11 HP BOARD
70 1-782-219-11 WIRE (FLAT TYPE)(17 CORE)
* 71 A-4699-620-A DISPLAY BOARD, COMPLETE
* 72 3-362-478-01 HOLDER (T), LED
* 73 4-989-724-01 HOLDER (FL)
74 4-989-723-01 INDICATOR (PLAY)
* 75 4-978-398-21 CUSHION
FL810 1-517-664-11 INDICATOR TUBE, FLUORESCENT
51 3-008-600-01 EMBLEM (5-AR), SONY
52 4-997-418-01 PANEL, FRONT
53 4-987-779-11 WINDOW (FL)
54 4-987-994-01 KNOB (AMS)
55 3-354-981-01 SPRING (SUS), RING
56 4-977-593-01 RING (DIA. 50), ORNAMENTAL (AEP,AUS)
57 4-987-778-01 BUTTON (MEGA-CON)
58 4-989-725-01 BUTTON (X-FADE)
59 4-987-775-11 BUTTON (PLAY)
60 4-987-777-01 BUTTON (FF)
61 4-987-776-01 BUTTON (FUNC)
62 4-987-774-01 BUTTON (MODE)
* 63 1-665-358-11 KEY BOARD
64 4-999-354-01 BUTTON (POWER)
51
52
53
54
55
56
75
57
58
59
60
61
62
63
74
64
65
66
67
67
67
67
67
57
68
69
not supplied
supplied with
J771
70
72
72
73
FL810
71
