– 40 –
SECTION 7
EXPLODED VIEWS

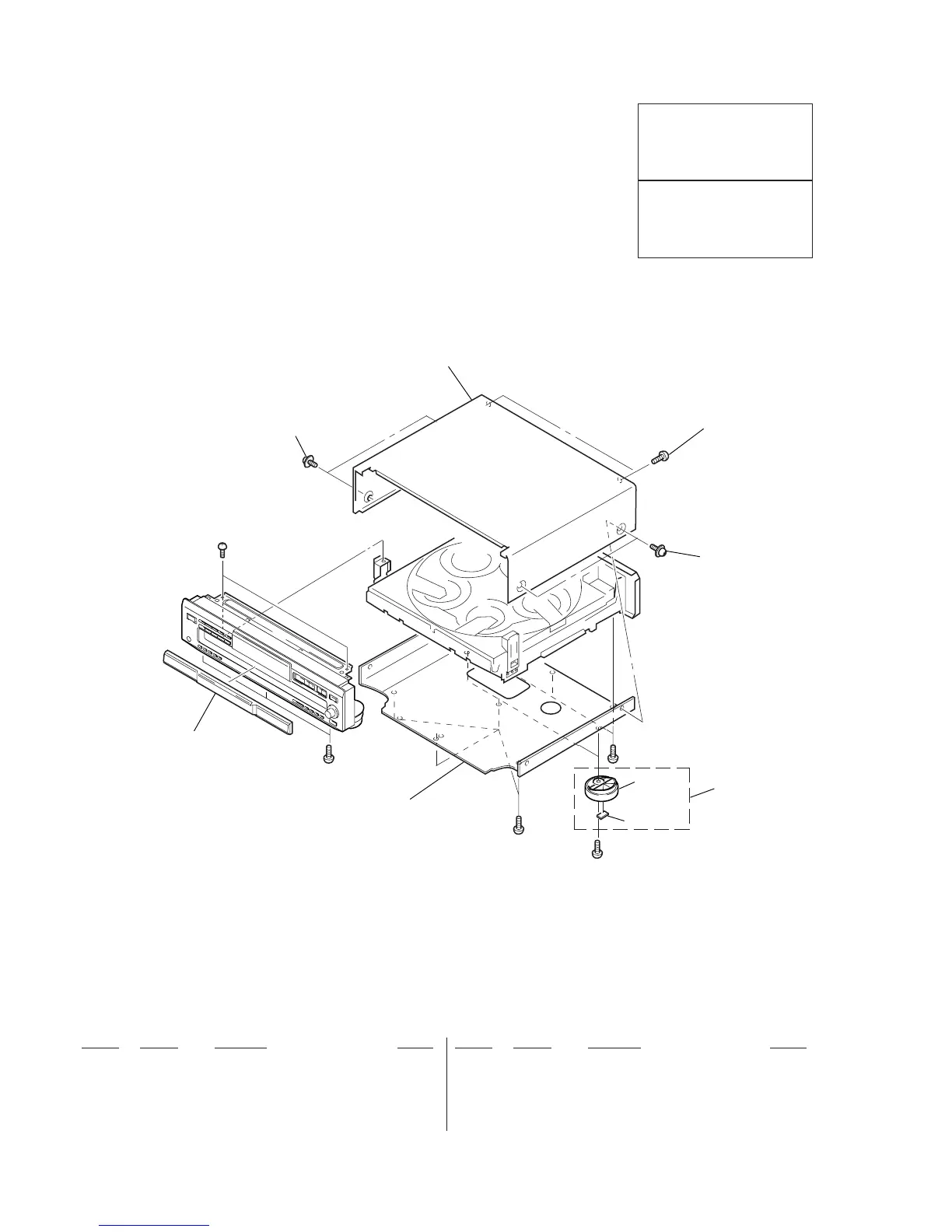

7-1. CASE SECTION
NOTE:
•Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
•The mechanical parts with no reference number in
the exploded views are not supplied.
•Hardware (# mark) list and accessories and packing
materials are given in the last of this parts list.
•Abbreviation
CND: Canadian model
AUS: Australian modeel
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque ! sont critiques pour la
sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifié.
*5 4-978-398-21CUSHION
6 3-703-685-21SCREW (+BV 3X8)
1 4-997-437-01PANEL, LOADING
2 3-704-366-01SCREW (CASE)(M3X8)
*3 4-978-492-11CASE
4 X-4946-618-1FOOT ASSY (US,CND)
4 X-4946-641-1FOOT ASSY (AEP,AUS)
1
2
2
6
3
4
5
not supplied
not supplied
#1
#2
#2
#2
#2
To Next Page
