– 15 –
SECTION 6
DIAGRAMS

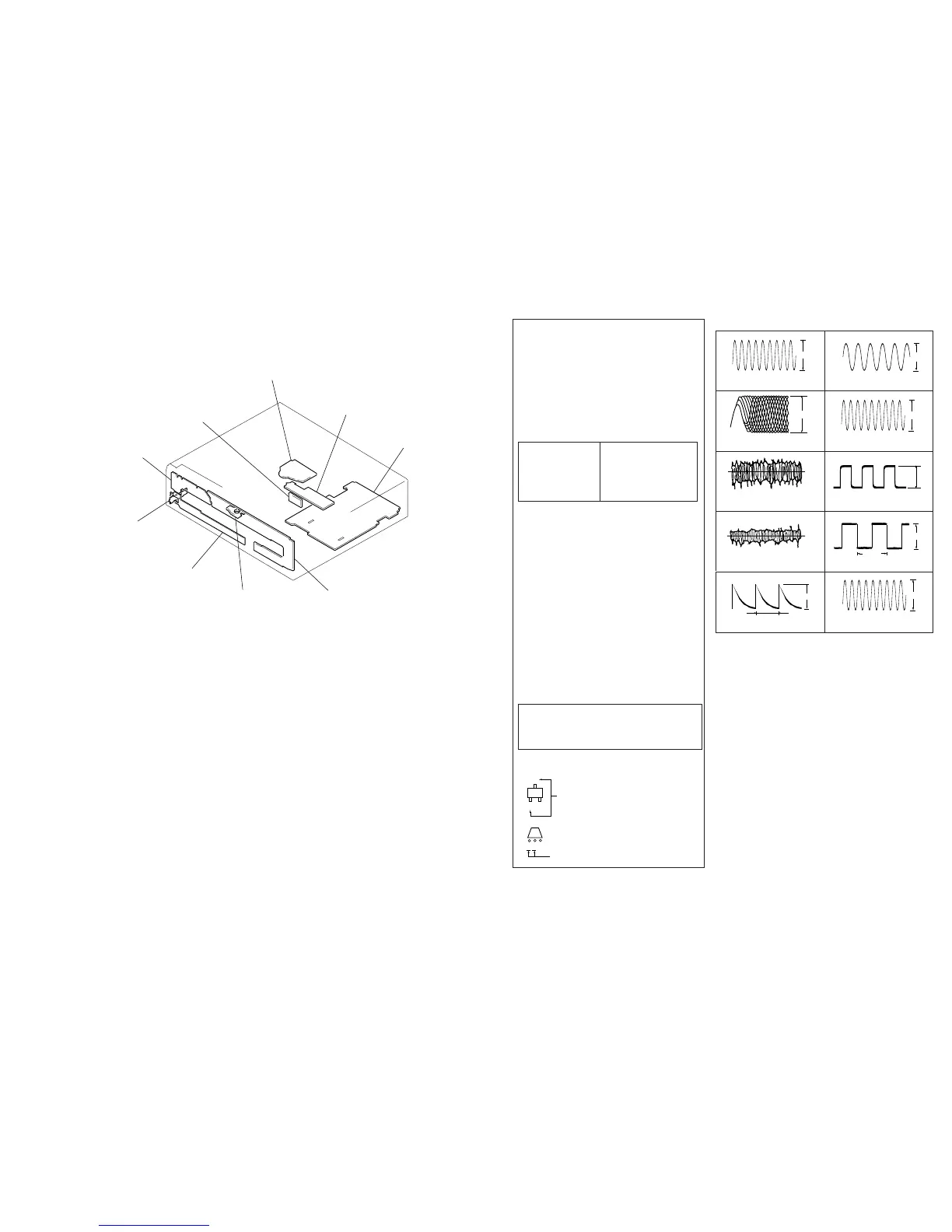

6-1. CIRCUIT BOARDS LOCATION
– 16 –
THIS NOTE IS COMMON FOR PRINTED WIRING
BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is printed
in each block.)
For schematic diagrams.
Note:
All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
All resistors are in and
1
/4
W or less unless otherwise
specified.
¢
: internal component.
C : panel designation.
U : B+ Line.
V : B– Line.
Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark : STOP
Voltages are taken with a VOM (Input impedance 10 M).
Voltage variations may be noted due to normal produc-
tion tolerances.
Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal produc-
tion tolerances.
Circled numbers refer to waveforms.
Signal path.
J : CD
c : digital out
For printed wiring boards.
Note:
X : parts extracted from the component side.
Y : parts extracted from the conductor side.
p : parts mounted on the conductor side.
®
: Through hole.
b : Pattern from the side which enables seeing.
(The other layers' patterns are not indicated.)
IC101 FE
1
2
3
4
5
WAVEFORMS
IC101 XTAI
IC101 RF AC
IC101 TE
IC302 EXTAL
6
IC101 @∞ MDP
7
IC301 6 384 FSO
IC301 0 BCK
8
BD board
DISPLAY board
MAIN board
KEY board
POWER SW board
HP board
TABLE MOTOR board
SENSOR board
LOADING board
Note:
The components identi-
fied by mark ! or dotted
line with mark ! are criti-
cal for safety.
Replace only with part
number specified.
Note:
Les composants identifiés par
une marque ! sont critiques
pour la sécurité.
Ne les remplacer que par une
piéce portant le numéro
spécifié.
Caution:
Pattern face side: Parts on the pattern face side seen from the
(Side B) pattern face are indicated.
Parts face side: Parts on the parts face side seen from the
(Side A) parts face are indicated.
Indication of transistor
IC301 !™ LRCK
9
0
IC301 XOUT
3.9Vp-p
33.8MHz
1.2Vp-p
(PLAY)
2.5V
APPROX 500mVp-p
(
PLAY
)
7.5µsec
2.4Vp-p
4.8Vp-p
33.8MHz
5.1Vp-p
2.1MHz
2.1Vp-p
33.8MHz
23µsec
5.2Vp-p
2.5V
APPROX 200m Vp-p
(
PLAY
)
C
These are omitted
EB
Q
C
These are omitted
EB
