Sony CDP-CE525 - Panel Section Printed Wiring Boards; Display, Key, Power SW, HP Board Layouts

– 31 – – 32 –
CDP-CE525

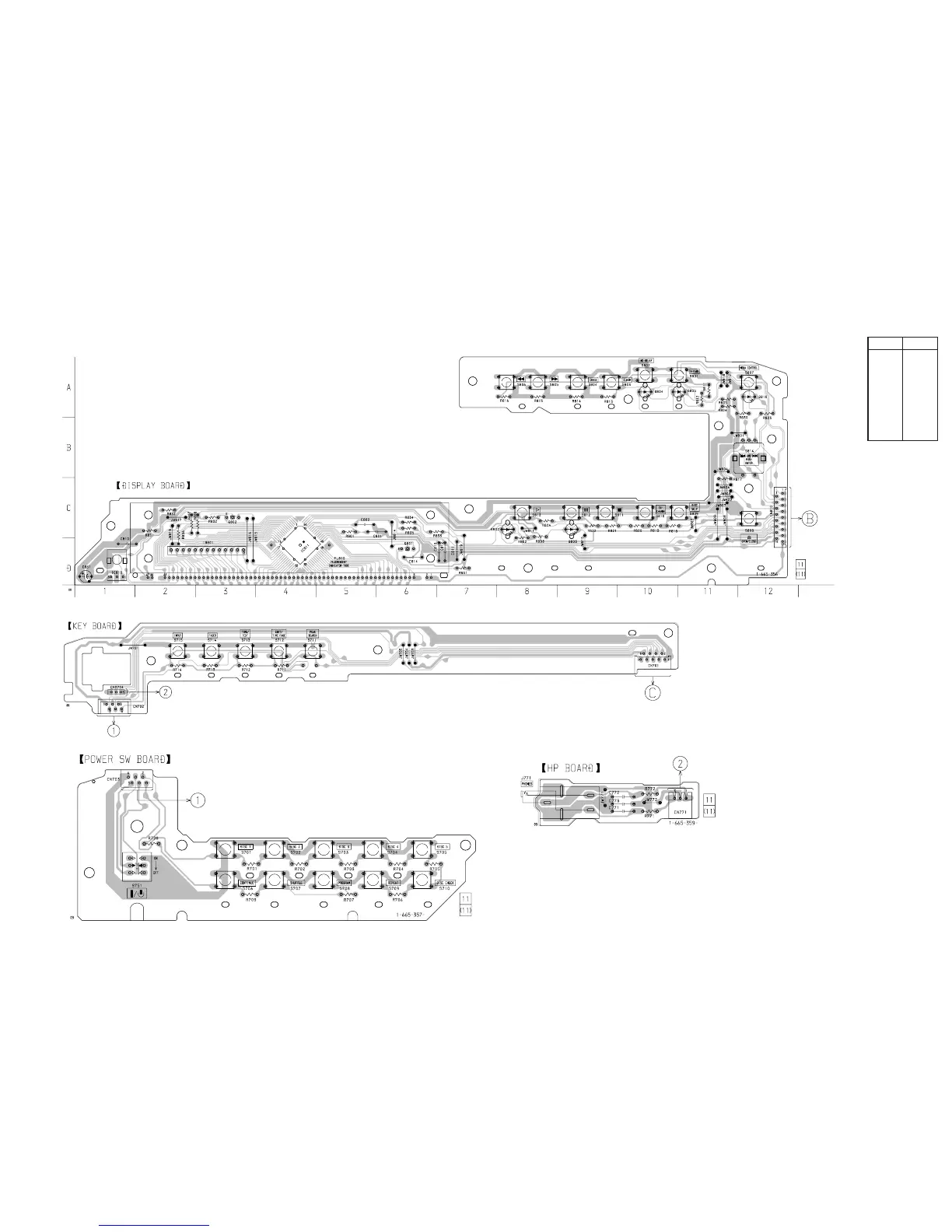

6-10. PRINTED WIRING BOARD – PANEL SECTION –
• See page 15 for Circuit Boards Location.
Ref. No. Location
• Semiconductor
Location
D802 C-8
D803 C-9
D804 A-10
D805 A-11
D810 A-12
IC810 D-1
IC811 D-4
Q801 D-6
Q802 C-3
(Page 21)
(Page 21)
